DELPHI TA5807 Part Description
Manufacturer
Product Description

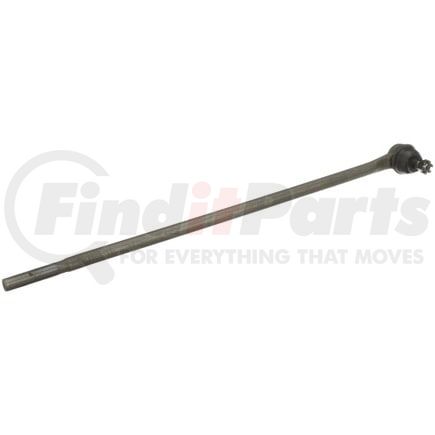

Tie Rod End
Features & Benefits
- Delphi includes the necessary accessories for a complete job
- Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
- Delphi tie rods are fatigue tested to avoid failure
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TA5807 Specifications
Product Attributes
| Position(s) | Right Outer (Pitman Arm To Steering Arm) |
| Item Grade | Standard Replacement |
| Length | 628.00 MM |
| Color | Black |
| End 1 Gender | Male |
| End 2 Gender | Female |
| Pre-Greased | Yes |
| Grease Fitting Included | Yes |
| Dust Boot Included | Yes |
| Width | 39 MM |
| Type | Straight |
| End 2 Thread Diameter | 17.43 MM |
| Height | 70.00 MM |
| Housing Material | Steel |
| Tube Diameter | 18.00 MM |
| Adjustable | No |
| Greaseable | Yes |
| Cone Outside Diameter | 15.90 MM |
| Bearing Material | Plastic |
| End 1 Thread Direction | Clockwise (Right) |
| End 2 Thread Direction | Counterclockwise (Left) |
| Stud Type | Tapered |
| End 2 Thread Pitch | 75 MM |
| End 1 Thread Pitch | 12.67 MM |
| Length - Stud Center to End | 608.00 MM |
| Dust Boot Material | Rubber |
| Tie Rod Material | Steel |
| End 1 Threads Per Inch | 20 |
| End 1 Thread Diameter | 12.67 MM |
| Shank Length | 15.90 MM |
| Stud Length | 15.90 MM |
| Mounting Hardware Included | Yes |
| Grade Type | Standard Replacement |
| Grade | Premium |
| Shank Length | 0.626 IN |
| Stud Length | 0.626 IN |
| End 2 Thread Diameter | 0.686 IN |
| Tube Diameter | 0.710 IN |
| Cone Outside Diameter | 0.626 IN |
| Length - Stud Center to End | 23.937 IN |
| End 1 Thread Diameter | 0.499 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708947550 |
| Country of Origin (Primary) | TW |
| Harmonized Tariff Code (HTS) | 8708947550 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| UPC | 00689604331941 |
| VMRS Code | 015004019 |
| UNSPSC | 25174205 |
DELPHI TA5807 Cross References
DELPHI TA5807 Fits Vehicles
- Jeep Jeepster (1966-1971)
- Jeep Commando (1966-1973)
- Jeep Scrambler (1981-1983)
- Jeep CJ6 (1972-1975)
- Jeep CJ7 (1976-1983)
- Jeep CJ5 (1972-1983)
