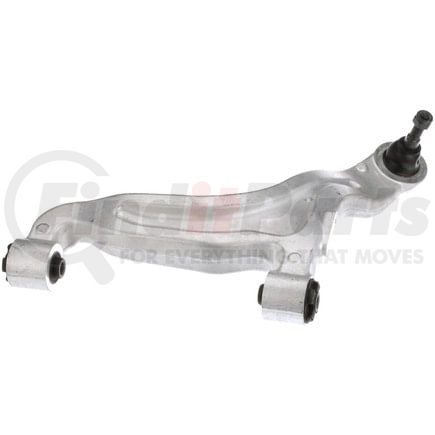

(888) 312-8812 Login SignupDELPHI TC7368 Control Arm and Ball Joint Assembly
Tap to view 13 more
$26049
Limited availability at this price!
In Stock
Get it by Monday, Dec 29
DELPHI TC7368 Part Description
DELPHI TC7368 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Rear Right Upper |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Bushings Included | Yes |
| Ball Joint Mounting Type | Press In |
| Ball Joint Stud Type | Threaded |
| Control Arm Construction | Casting/Forged |
| Control Arm Material | Aluminum |
| Mounting Hardware Included | Yes |
| Mounting Hole Quantity | 2 |
| Adjustable | No |
| Greaseable | No |
| Control Arm Maximum Width | 16.496 IN |
| Control Arm Maximum Width | 419.00 MM |
| Ball Joint Thread Diameter | 0.551 IN |
| Ball Joint Thread Diameter | 14.00 MM |
| Ball Joint Stud Length | 1.378 IN |
| Ball Joint Stud Length | 35.00 MM |
| Control Arm Maximum Length | 15.669 IN |
| Control Arm Maximum Length | 398.00 MM |
| Mounting Hole Diameter | 0.559 IN |
| Mounting Hole Diameter | 14.20 MM |
| Control Arm Color | Gray |
| Thread Direction | Clockwise (Right) |
| Bushing Color | Black |
| Finish | Uncoated |
| Dust Boot Included | Yes |
| Ball Joint Included | Yes |
| Grade Type | Premium |
| Boot Material | Chloroprene Rubber (CR) |
| Locking Nut Included | Yes |
| Thread Diameter | 14.00 MM |
| Boot Color | Black |
| Steering Type | Power |
| Bearing Material | Plastic |
| Bushing Material | Rubber |
| Dust Boot Material | Chloroprene Rubber (CR) |
| Thread Diameter | 0.551 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708806590 |
| Harmonized Tariff Code (HTS) | 8708807000 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | TR |
| UPC | 00689604351017 |
| VMRS Code | 016008121 |
| UNSPSC | 25172013 |
DELPHI TC7368 Part Interchanges
| Brand | Part Number |
|---|---|
| General Motors | 15267620, 25716354, 25766118 |
| MAS Industries | CB90538, CB90538PR |
| Dorman | 522-488, CB90538, CB90538PR |
| MOOG Chassis Products | RK622101 |
DELPHI TC7368 Fits Vehicles
- Cadillac CTS (2008-2015)
- Cadillac STS (2005-2011)
- Cadillac SRX (2004-2009)
