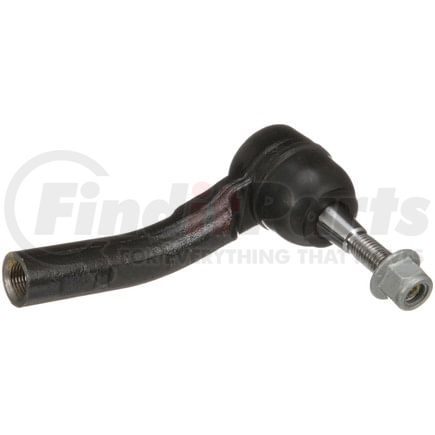

(888) 312-8812 Login SignupDELPHI TA5624 Tie Rod End
Tap to view 20 more
$3799
Limited availability at this price!
In Stock
Get it by Friday, Dec 26
DELPHI TA5624 Part Description
DELPHI TA5624 Specifications
Product Attributes
| Position(s) | Right Outer |
| Item Grade | Standard Replacement |
| Length | 157.00 MM |
| Color | Black |
| End 1 Gender | Male |
| End 2 Gender | Female |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Dust Boot Included | Yes |
| Width | 63 MM |
| Type | Bent |
| End 2 Thread Diameter | 16.00 MM |
| Height | 110.00 MM |
| Housing Material | Steel |
| Adjustable | No |
| Greaseable | No |
| Weight | 1.59 lb |
| Bearing Material | Plastic |
| End 1 Thread Direction | Clockwise (Right) |
| End 2 Thread Direction | Clockwise (Right) |
| Grade | Premium |
| Stud Type | Threaded |
| End 2 Thread Pitch | 1.5 MM |
| End 1 Thread Pitch | 1.75 MM |
| Length - Stud Center to End | 92.00 MM |
| Length - Stud Center to End | 3.622 IN |
| Dust Boot Material | Rubber |
| Tie Rod Material | Steel |
| End 1 Thread Diameter | 12.00 MM |
| Mounting Hardware Included | Yes |
| Grade Type | Standard |
| End 2 Thread Diameter | 0.630 IN |
| End 1 Thread Diameter | 0.472 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708947550 |
| Country of Origin (Primary) | TR |
| Harmonized Tariff Code (HTS) | 8708947550 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| UPC | 00689604325667 |
| VMRS Code | 015004019 |
| UNSPSC | 25174205 |
DELPHI TA5624 Part Interchanges
| Brand | Part Number |
|---|---|
| MOOG Chassis Products | ES801169, ES801170 |
| General Motors | 13 27 2002, 19208276 |
| MAS Industries | TO92315XL |
| N/A | MS50655 |
DELPHI TA5624 Fits Vehicles
- Cadillac XTS (2013-2019)
- Buick Regal (2012-2013)
- Buick Allure (2010)
- Saab 9-5 (2010-2011)
- Buick LaCrosse (2010-2012)
