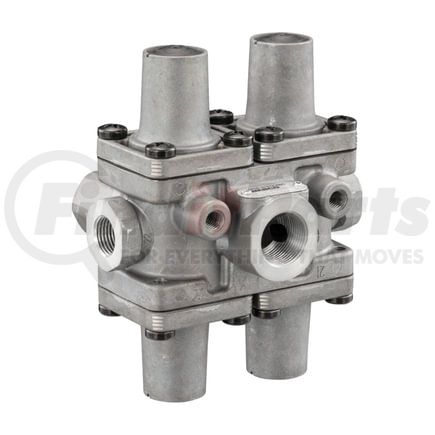

WABCO 9347023000 - Air Brake Pressure Protection Valve - Quadruple Protection, Dynamic, 290.1 psi
$40149
98 day lead time
. Learn more
WABCO part description
Quadruple Protection Valve
Product Attributes
| Calculated Volume (dm³) | 1.3412 |
| Size | 143 x 113 x 83 |
| Weight | 2.1826 |
| Max. operating pressure | 290.1 psi |
| Max. operating pressure | 20.0 bar |
| Charging Pressure | 3.5 bar |
| Temperature Range | -40°C to +90°C |
| Closing Pressure Dynamic 21 | 5.0 bar |
| Closing Pressure Dynamic 23 | 5.0 bar |
| Closing Pressure Dynamic 22 | 5.0 bar |
| Closing Pressure Dynamic 24 | 5.0 bar |
| Opening pressure 22 | 7 bar |
| Opening pressure 23 | 7 bar |
| Opening pressure 21 | 7 bar |
| Opening Pressure Circuit 1+2 | 7.0 + 7.0 bar |
| Opening pressure 24 | 7 bar |
| Port thread 21 | M16 x 1.5 |
| Type | dynamic |
| Port thread 23 | M16 x 1.5 |
| Port thread 24 | M16 x 1.5 |
| Port thread 4 | M16 x 1.5 |
| Port thread 22 | M16 x 1.5 |
| Port thread 1 | M22 x 1.5 |
| Pressure Sensor | No |
WABCO 9347023000 Cross Reference
We have 1 alternatives for the 9347023000 by WABCO:
Whether it’s for cars, buses, trucks, or trailers, WABCO® is at the frontline at developing and providing products and systems to make vehicles safer and easier to control. Founded in 1869, WABCO is a major supplier of braking, stability, suspension and transmissions in the Americas and beyond. The company is recognized as introducing the modern air brake system in 1869, and continues to lead the industry in air brake design and production for the heavy duty and commercial vehicle sectors. Today, WABCO operates as a division of the German auto parts maker ZF and employs 16,000 employees in facilities in 36 countries worldwide.
