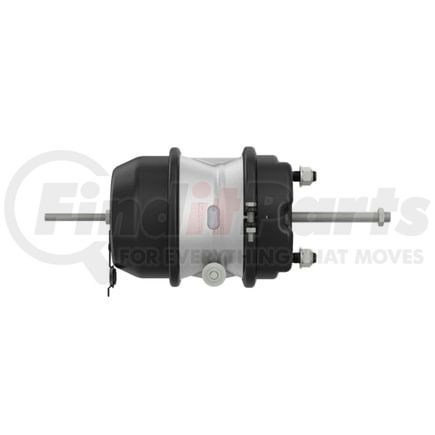

WABCO 9253920850 - Air Brake Spring Brake Actuator - Tristop Series, Double Diaphragm, 30/30
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
WABCO part description
Product Attributes
| Max. operating pressure | 145.0 psi |
| Port thread 12 | 3/8" - 18 NPTF |
| Max. operating pressure | 145.0 psi |
| Temperature Range | -40°C to +80°C |
| Total Length | 363.0 mm |
| Push-Rod Length | 146 mm |
| Bolt Lengths | 38.0 mm |
| Weight | 20.6 |
| Port thread 11 | 3/8" - 18 NPTF |
| Push-rod thread | 5/8'' - 18 UNF |
| Distance between bolts | 120.6 mm |
| Release Pressure | 4.6 bar |
| Bolt Threads | 5/8'' - 11 UNC |
| Yoke | Without |
| Stroke | 75.9 mm |
| Port Angle | 90° |
| Version | Without boot |
| Type Of Operation | Cam |
| Type | 30/30 |
WABCO 9253920850 Cross Reference
We have 1 alternatives for the 9253920850 by WABCO:
Whether it’s for cars, buses, trucks, or trailers, WABCO® is at the frontline at developing and providing products and systems to make vehicles safer and easier to control. Founded in 1869, WABCO is a major supplier of braking, stability, suspension and transmissions in the Americas and beyond. The company is recognized as introducing the modern air brake system in 1869, and continues to lead the industry in air brake design and production for the heavy duty and commercial vehicle sectors. Today, WABCO operates as a division of the German auto parts maker ZF and employs 16,000 employees in facilities in 36 countries worldwide.
