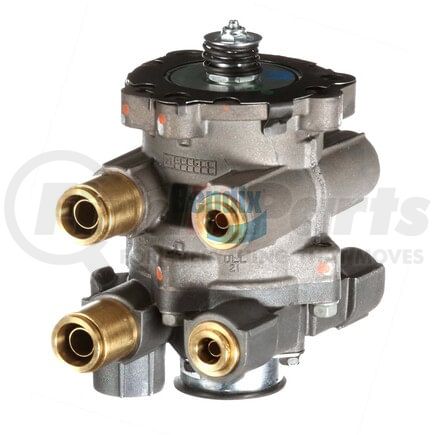

(888) 312-8812 Login SignupBENDIX K141875 Foot Brake Valve
$39349
Limited availability at this price!
1 Day Lead Time
Get as soon as Thursday, Nov 12
BENDIX K141875 Part Description
Manufacturer
Product Description
Foot Brake Valve
Features & Benefits
- Meters air to the brakes in proportion to pedal pressure
- Cab-floor valves like this one see every brake application of the day
- Dual-circuit design feeds front and rear brakes separately
- Smooths proportional brake control at the pedal for the driver
Bendix Air Brake Foot Valve
Driver brake control on air-braked trucks is the use case for the Bendix Air Brake Foot Valve, the pedal-operated valve that meters air to the brakes. The harder the driver presses, the more air the valve delivers, so a worn foot valve can make braking feel uneven or slow to release. Replacing it restores smooth, proportional control at the pedal. Checking the Bendix K141875 for air leaks at the pedal with brakes applied belongs in every pre-trip inspection.
BENDIX® FOOT BRAKE VALVE
| Maximum Operating Temperature: | 200 °F (93 °C) |
| Minimum Operating Temperature: | -40 °F (-40 °C) |
| Exhaust Port: | Dust Shield |
| Regulatory Compliance: | FMVSS 121 |
| Mounting Valve Body: | 5/16-18 UNC-3B (3x) |
| Mounting Plate Included: | No |
| Port Configuration: | Parallel |
| Supply 11 Port 1: | 3/8 PTC |
| Supply 11 Port 2: | 5/8 PTC |
| Supply 12 Port 1: | 3/8 PTC |
| Supply 12 Port 2: | 5/8 PTC |
| Delivery 21 Port 1: | 1/2 PTC |
| Delivery 21 Port 2: | 3/8 PTC |
| Delivery 22 Port 1: | 3/8 PTC |
| Delivery 22 Port 2: | 3/8 PTC |
| Differential Pressure: | 3.0 PSI |
| Graduation Spring Style: | Rubber Spring |
| BVA-85 Included: | No |
| Retarder Included: | No |
| Pedal Included: | No |
| Waterproof: | No |
| Rubber Boot Included: | No |
| Auxiliary Supply Port: | 3/8-18 NPT |
Bendix Foot Brake Valve
The Bendix foot brake valve is a service new dual brake valve that is used to start the process of a brake application once you step on the brake pedal. It is made of tough, durable materials to ensure it withstands harsh operating conditions and lasts longer than the competition.
| Product Type | Foot Valve |
| Valve Type | E-8P |
BENDIX K141875 Specifications
Product Attributes
| Auxiliary Supply Port | 3/8-18 NPT |
| BVA-85 Included | No |
| BVA-85 Port Size | Not applicable to this part |
| Delivery (21) Port 1 | 1/2 PTC |
| Delivery (21) Port 2 | 3/8 PTC |
| Delivery (22) Port 1 | 3/8 PTC |
| Delivery (22) Port 2 | 3/8 PTC |
| Differential Pressure | 3.0 PSI |
| Exhaust Port | Dust Shield |
| Graduation Spring Style | Rubber Spring |
| Initial Pedal Angle | Not applicable to this part |
| Market Indicator | Aftermarket New |
| Maximum Operating Temperature | 200 AdegF (93 AdegC) |
| Minimum Operating Temperature | -40 AdegF (-40 AdegC) |
| Mounting (Valve Body) | 5/16-18 UNC-3B (3x) |
| Mounting (Vehicle) | Not applicable to this part |
| Mounting Nuts / Washers Included | Not applicable to this part |
| Mounting Plate Included | No |
| Mounting Stud Length | Not applicable to this part |
| Pedal Included | No |
| Pedal Length (from Pivot) | Not applicable to this part |
| Pedal Length (Overall) | Not applicable to this part |
| Pedal Material | Not applicable to this part |
| Pedal Offset | Not applicable to this part |
| Pedal Pad Included | Not applicable to this part |
| Pedal Style | Not applicable to this part |
| Plunger Material | Not applicable to this part |
| Port Configuration | Parallel |
| Regulatory Compliance | FMVSS 121 |
| Retarder Cable Length | Not applicable to this part |
| Retarder Connector | Not applicable to this part |
| Retarder Included | No |
| Rubber Boot Included | No |
| Supply (11) Port 1 | 3/8 PTC |
| Supply (11) Port 2 | 5/8 PTC |
| Supply (12) Port 1 | 3/8 PTC |
| Supply (12) Port 2 | 5/8 PTC |
| Total Pedal Travel | Not applicable to this part |
| Waterproof | No |
Additional Information
| Country of Origin (Primary) | MX |
| UPC | 04068078170571 |
| VMRS Code | 013010051 |
BENDIX K141875 Cross References
| Brand | Part Number |
|---|---|
| N/A | 287368N |
BENDIX K141875 Customer Reviews
No reviews yet
Be the first to review this product!
BENDIX K141875 Manufacturer Information
A part of the Knorr-Bremse Group, Bendix® provides the automotive and truck parts industry with cutting-edge energy management solutions, active safety technologies, and air brake charging for tractors, buses, commercial vehicles, trailers, as well as medium- and heavy-duty trucks throughout North America. Headquartered in Elyria, Ohio, Bendix Commercial Vehicle Systems employs over 3,200 people who work hand in hand for the accomplishment of the brand's vision: "to become the leading worldwide supplier of active vehicle safety systems within the commercial vehicle industry." This brand takes pride in being the first to introduce many notable parts and technologies to the North American commercial vehicle market. Among these many firsts are the groundbreaking air brake system technologies such as air dryers, air compressors, and ABS. At Bendix, exceeding industry standards is a strict requirement.
