Name: Reach Cooling 41-13158 Radiator
SKU: 4113158
Price: 268.49 USD
Availability: InStock

REACH COOLING part description

Product Description

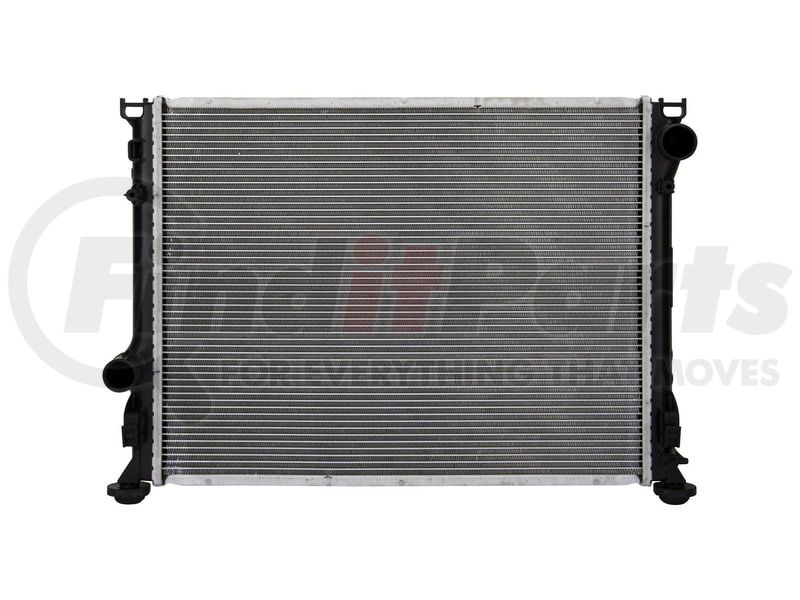

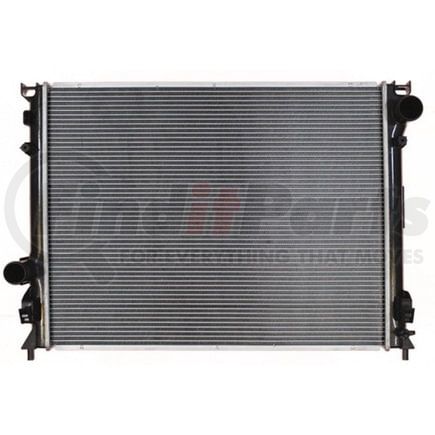

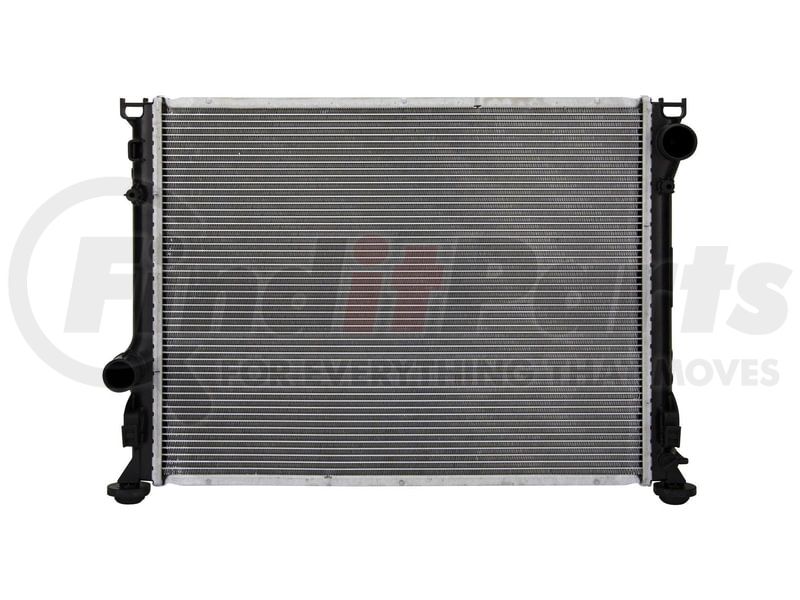

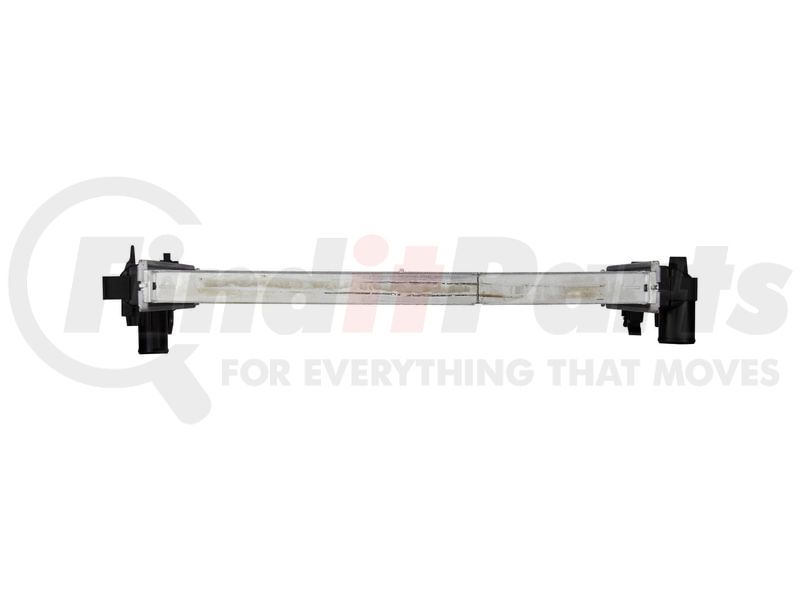

Radiator

Application Summary

Chrysler:2008-2020 300; Dodge:2009-2020 Challenger/2008-2020 Charger/2008 Magnum

Features & Benefits

Thermal expansion reduce failure rates by allowing improved core expansion and contraction.
Radiators are the foundation of any engine cooling system. Tasked with preventing the vehicle from overheating, the radiator is vital to keeping vehicles up and running.
Folded fin edges increase stability and heat disbursement properties.
Reach utilizes longer header tabs for increased pressure resistance, this reduces the potential for tank-to-header leaks.
Deep extrusion headers provide a stronger tube-to-header joint that is more resistant to the effects of vibration and thermal tube expansion.
Reach B-Type tubes feature central reinforcement to provide greater tolerance to pressure reducing the probability of tube failure.
Our B-Type tubes feature central reinforcement to provide greater tolerance to pressure. Stronger tube design means drastically reduced probability of tube failure.
We use longer header tabs for increased pressure resistance. This reduces the potential for tank to header leaks.
Our deep extrusion header provides a stronger tube to header joint which is more resistant to the effects of vibration and thermal tube expansion, virtually eliminating tube to header leaks.
Thermal expansion cuts allow for longer life and reduce failure rates by allowing improved core expansion and contraction during normal heat cycles.
Our included "multi-fit" attachments allow one radiator to cover multiple vehicle applications without sacrificing OE fit. This results in wider vehicle coverage with substantially less inventory.
We design and manufacture all our radiators to meet or even exceed Original Equipment specifications. We take pride in producing the most reliable replacement parts in the market.
Our fin edges are folded for increased stability and heat disbursement properties.
Our B-Type tubes feature central reinforcement to provide greater tolerance to pressure. Stronger tube design means drastically reduced probability of tube failure.

No Shipping Restriction

radiator, engine cooling, rad, car radiator, auto radiator, radiator cap

Product Attributes

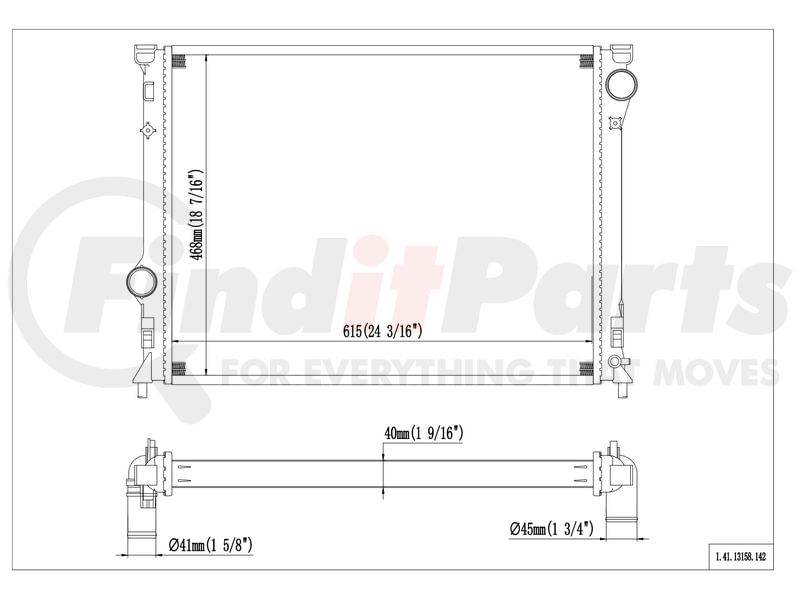

Inlet Header Length	19.437 IN
Core Material	Aluminum
Inlet Header Width	63.5 MM
Radiator Cap Included	Not Needed
Core Height	614.4 MM
Core Width	18.437 IN
Transmission Oil Cooler Included	No
Outlet Header Width	2.5 IN
Core Thickness	39.7 MM
Outlet Header Length	492.1 MM
Down Flow Or Cross Flow Type	Cross Flow
Outlet Diameter	1.75 IN
Tank Material	Plastic
Inlet Location	Upper Right
Inlet Diameter	41 MM
Outlet Location	Lower Left
Core Row Quantity	1
Engine Oil Cooler Included	No
Core Height	24 3/16 IN
Outlet Diameter	45 MM
Outlet Header Length	492.125 mm
Inlet Header Length	493.71 MM
Inlet Header Width	2 1/2 IN
Core Width	468.299 MM
Outlet Header Length	19 3/8 IN
Core Height	614.349 MM
Core Thickness	39.674 MM
Inlet Header Width	63.5 mm
Outlet Header Width	63.5 mm
Core Thickness	1 9/16 IN
Core Width	468 MM
Outlet Header Width	63.50 MM
Inlet Header Length	493.699 mm
Inlet Diameter	41.275 mm
Outlet Diameter	44.45 MM
Inlet Diameter	1.625 IN
