Name: HALDEX MPBR76612
SKU: mpbr76612
Price: 389.49 USD
Availability: InStock

HALDEX part description

California Proposition 65 Warning

WARNING: This product can expose you to chemical which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Product Description

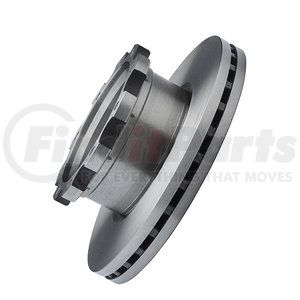

Rotor Air Disc Brake Transit, Coach U Type

Application Summary

Transit, Motor Coach

Features & Benefits

Manufactured to meet the highest quality standards
Manufactured to meet the highest quality standards
Stringently tested for durability and consistent, reliable performance
Stringently tested for durability and consistent, reliable performance
Engineered to OE specification for exact fit and function
Engineered to OE specification for exact fit and function
Built to last longer in service
Built to last longer in service

Haldex Midland Disc Brake Rotor

Enjoy better stopping power, less dust and noise, and cost savings with the Haldex Midland disc brake rotor. Made by a leading manufacturer of air brake systems and components, this product offers maximum efficiency and reliability even when used under harsh operating conditions.

Product Attributes

Mounting Bolt Hole Quantity	10
ABS Tone Ring Style	No
Brake System	Knorr Bremse SB/SN7
Depth	1.53"/39mm
Freight Class	60
Minimum Rotor Thickness	1.77 in. / 44.96mm
Mounting Bolt Circle Diameter	9.25"/234.95mm
Mounting Bolt Thread Size	M16-1.5 in.
Overall Diameter	16.93 in. / 430mm
Pilot Diameter	7.99 in. / 202.95mm
Rotor Thickness New	1.77 in. / 44.96mm
Rotor type	U Type Rotor
Outside Diameter	16.93 in. / 430mm
Mounting Bolt Hole Circle Diameter	9.25"/234.95mm
Bolt Thread Size	M16-1.5 in.
Brake Type	Knorr Bremse SB/SN7
Rotor Thickness	1.77 in. / 44.96mm

Additional Information

Country of Origin (Primary)	MX
Harmonized Tariff Code (Schedule B)	8708305030
Harmonized Tariff Code (HTS)	8708305030
Remanufactured Part	N
Warranty Distance	100000
Warranty Distance UOM	MI
Warranty Special	See Haldex Aftermarket Product warranty Policy (L20221W).pdf
Warranty Time	12
Warranty Time UOM	MO
UPC	00767653381183
VMRS Code	013002124

Part Interchanges

Haldex® is a Sweden-based manufacturer specializing in brake and air suspension systems for heavy duty vehicles. Its product line consists of brake components for wheel ends, including disc brakes, brake adjusters, and actuators. It also offers air control products such as compressed air dryers, valves, ABS, and EBS. All these Haldex products are designed with safety and efficient operation in mind, cutting down on potential hazards and maintenance costs in the long run. Today, Haldex runs manufacturing and R&D facilities in 19 countries across four continents. It is dedicated to producing high-quality brake and suspension parts for its customers all around the world as well as developing new technologies for the future.
