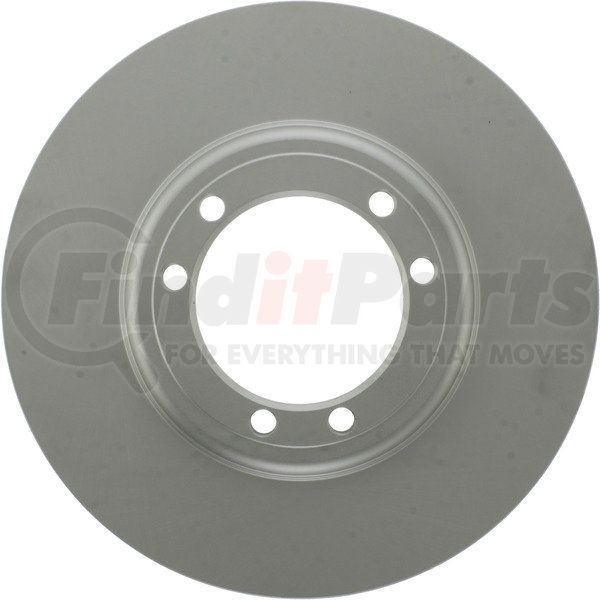

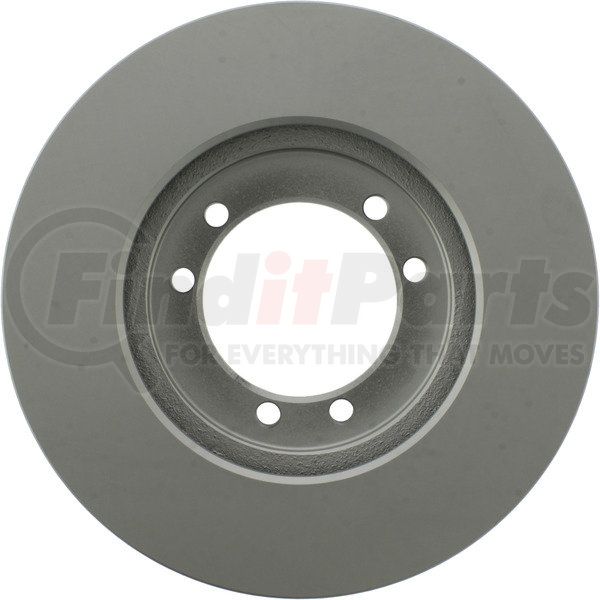

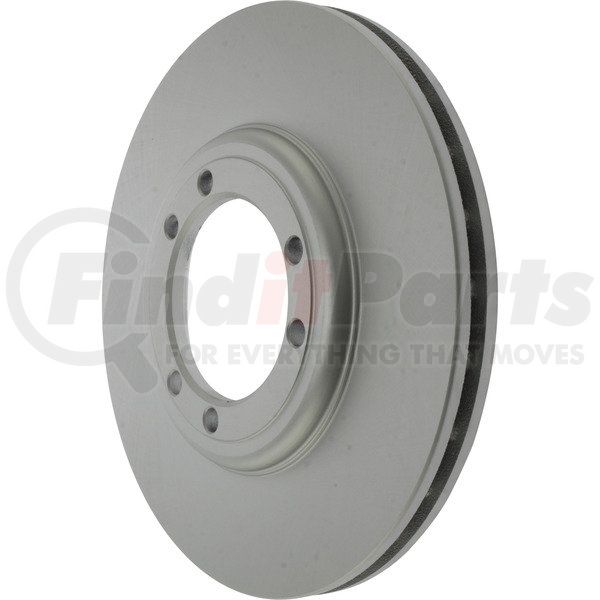

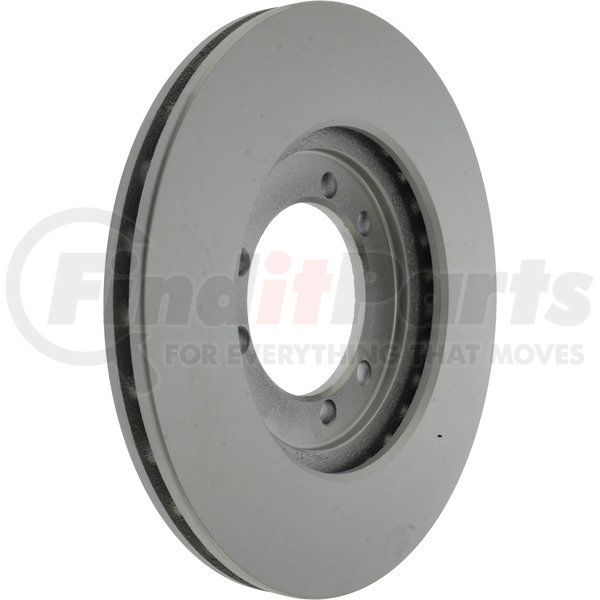

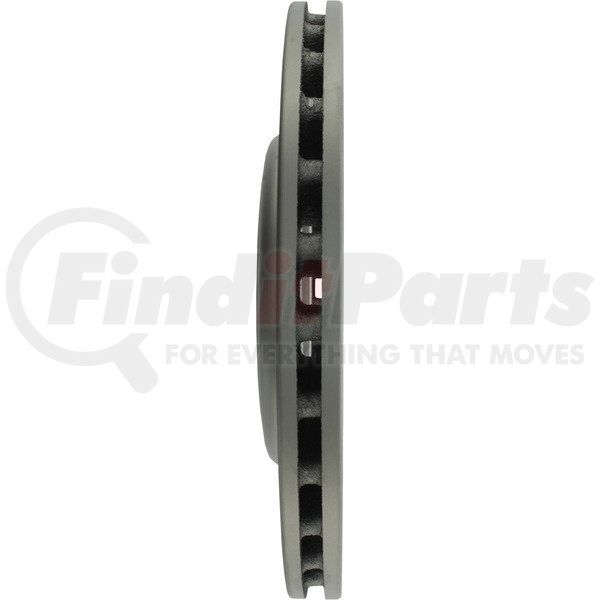

(888) 312-8812 Login SignupCENTRIC 320.67033F Centric GCX Rotor with Full Coating
Tap to view 4 more
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
CENTRIC 320.67033F Part Description
Manufacturer
Product Description
Centric GCX Rotor with Full Coating
Features & Benefits
- RS200 Coating our exclusive corrosion resistant coating for longer life and good looks; Iron Formulation Enhanced iron and high carbon metallurgies means the right rotor for your car; Operational Efficiency Full coverage with 80% fewer SKUs
- For the best corrosion resistance
- RS200™ Zinc-Aluminum Rich Coating
- Optimal Surface Finish
- For consistent and confident braking from the first stop
- Carbon Enhanved Advanced Metallurgy
- For optimal heat transfer and structural strength
- OE Vane Design and Plate Thickness
- For heat capacity and strength
- Low Initial Lateral Run-Out
- For smooth vibration free stopping
- Precision Balance
- For vibration free performance
CENTRIC 320.67033F Specifications
Product Attributes
| Misc Holes [cntrc] | 0 |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Weight [cntrc] Lbs | 12.000 |
| Vane Style [cntrc] | Straight |
| Disc Mounting [cntrc] | Behind the Hub |
| Weight [cntrc] Kgs | 5.450 |
| Product Grade [cntrc] | Premium |
| Discard Thickness | 20.700 MM |
| Discard Thickness | 0.815 IN |
| Nominal Thickness | 22.230 MM |
| Nominal Thickness | 0.875 IN |
| Disc Finish | Fully Coated |
| Hat Finish | Coated |
| Overall Height | 34.600 MM |
| Overall Height | 1.362 IN |
| Outside Diameter | 265.900 MM |
| Outside Diameter | 10.469 IN |
| Mounting Bolt Hole Quantity | 6 |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Bearings Included | No |
| Center Hole Diameter | 3.547 IN |
| Center Hole Diameter | 90.100 MM |
| Mounting Bolt Hole Circle Diameter | 110.000 MM |
| Mounting Bolt Hole Circle Diameter | 4.331 IN |
| Mounting Bolt Hole Diameter | 10.600 MM |
| Mounting Bolt Hole Diameter | 0.417 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 00889590393729 |
CENTRIC 320.67033F Cross References
CENTRIC 320.67033F Fits Vehicles
- Hummer H1 (2002-2004)
- AM General Hummer (1992-2001)
