(888) 312-8812 Login SignupRAYBESTOS 56591 Raybestos Specialty - Truck Brake Rotor
$84.86
MSRP Pricing shown.
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
RAYBESTOS 56591 Part Description
Manufacturer
Product Description

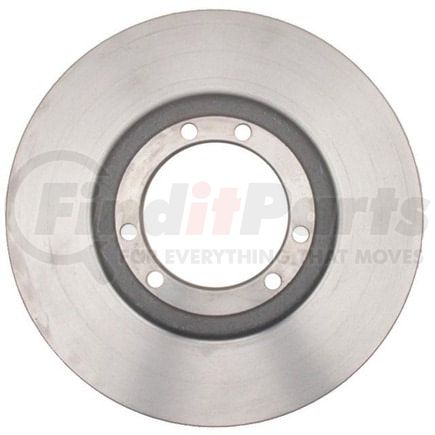

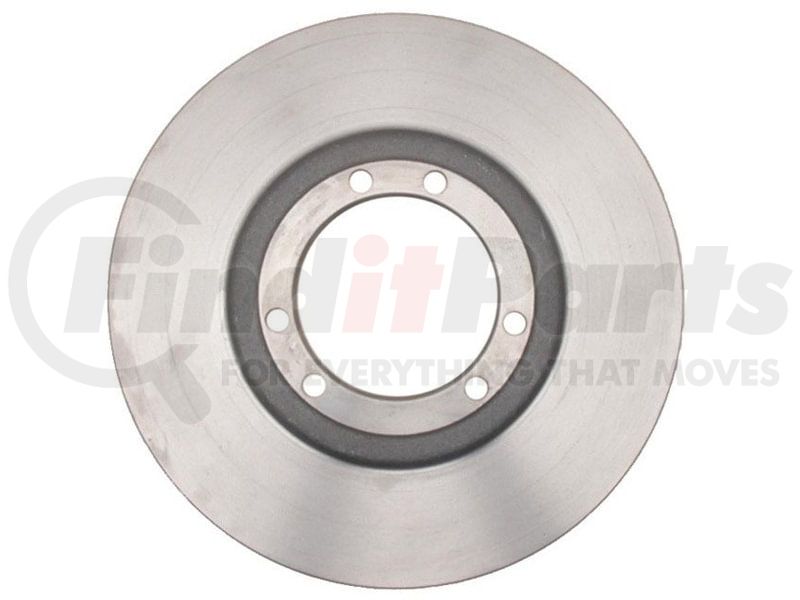

Raybestos Specialty - Truck Brake Rotor
Application Summary
2001-1992 AM General Hummer Front, 2001-1992 AM General Hummer Rear, 2004-2002 Hummer H1 Front, 2004-2002 Hummer H1 Rear
Features & Benefits
- OE Fit, Form, and Function
- Our vehicle-specific design matches OE fit, form and function, providing ultimate strength and performance
- Cooling Vanes
- We dedicate time to match the cooling vanes on our Specialty rotors to OE designs, ensuring: Optimal cooling Reduced fade Less noise Increased pad life
- Coating
- All Specialty rotors are protected against the elements. All new Specialty rotors come fully coated with Grey Fusion 4.0® rated at 300 hrs. salt spray or a Black Fusion painted hat and edge for rust protection.
- All Specialty rotors are protected against the elements. All new Specialty rotors come fully coated with Grey Fusion 4.0(R) rated at 300 hrs. salt spray or a Black Fusion painted hat and edge for rust protection.
- SAE Standard for Tensile Strength
- Our rotors follow SAE standards for tensile strength, hardness, and iron grade, providing structural integrity and maximum service life
- Turned Finish
- A turned finish provides an excellent surface for the pads to engage with to ensure a smooth and effective stop right out of the box
RAYBESTOS 56591 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 3.546 IN |
| Center Hole Diameter | 90.05 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 0.815 IN |
| Discard Thickness | 20.7 MM |
| Harmonize Code | 8708.30.5030 |
| Mounting Bolt Hole Circle Diameter | 4.331 IN |
| Mounting Bolt Hole Circle Diameter | 110 MM |
| Mounting Bolt Hole Diameter | 4.331 IN |
| Mounting Bolt Hole Diameter | 110 MM |
| Mounting Bolt Hole Quantity | 6 |
| Nominal Thickness | 0.866 IN |
| Nominal Thickness | 22 MM |
| Outside Diameter | 10.47 IN |
| Outside Diameter | 265.95 MM |
| Overall Height | 1.36 IN |
| Overall Height | 34.55 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Solid |
| Stud/Lug Hole Quantity | 6 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | US |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00030999966483 |
RAYBESTOS 56591 Cross References
| Brand | Part Number |
|---|---|
| 121.67033, F1EZ14630CD | |
| ADVANCE AUTO PARTS | 145065, YH145065 |
| AMERICAN REMANUFACTURED | 89-40033 |
| AUTOSPECIALTY | AR8733, AR8733E |
| AUTOZONE | 080-2437, 5701 |
| BENDIX | 145065 |
| BRAKE HEADQUARTERS | BR56105 |
| BRAKEBEST | 56591, 56591R, 56591RGS |
| BREMBO | 27296 |
| CENTRIC | 120.67033, 121.67033, 126.67033CSL, 126.67033CSR, 126.67033SL, 126.67033SR, 127.67033CL, 127.67033CR, 127.67033L, 127.67033R, 320.67033F |
| Casting Numbers | 211072-C, 326015 |
| Centric Parts | 120.67033, 121.67033, 126.67033CSL, 126.67033CSR, 126.67033SL, 126.67033SR, 127.67033CL, 127.67033CR, 127.67033L, 127.67033R, 320.67033F |
| DELPHI | RB639 |
| DURA CORP | BR5701 |
| DuraGo | BR5701 |
| EUCLID | E-12326 |
| EUROROTOR | 52000 |
| HUMMER | 5573180, 10698002, 12338387 |
| MIGHTY DISTRIBUTING SYSTEM | 5701 |
| NEWTEK AUTOMOTIVE | 5701 |
| Newtek Automotive USA | 5701 |
| PROMAX | 14-5701 |
| QUALIS | 5701 |
| STANDARD ROTORS AND DRUMS | 5701 |
| THE UNIVERSAL GROUP | 106753 |
| UAP | 5701 |
| Universal | 106753 |
| VIPAR - VEHICLE INDUSRTY PARTS & MANUFACTURING | X51140 |
| WAGNER | BD180054 |
| WAGNER BRAKE | BD126583, BD180054 |
| WINHERE | 4420173 |
RAYBESTOS 56591 Fits Vehicles
- Hummer H1 (2002-2004)
- AM General Hummer (1992-2001)
