(888) 312-8812 Login SignupCENTRIC 320.66032F Centric GCX Rotor with Full Coating
Tap to view 4 more
$8599
Limited availability at this price!
1 Day Lead Time
Get as soon as Tuesday, Oct 6
CENTRIC 320.66032F Part Description
Manufacturer
Product Description

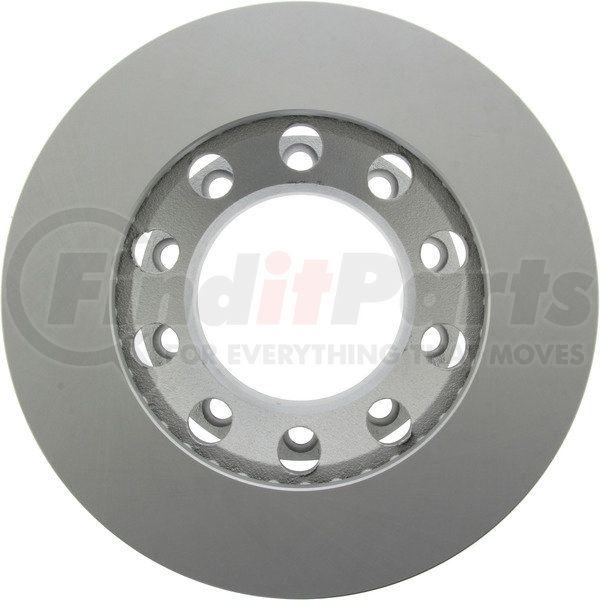

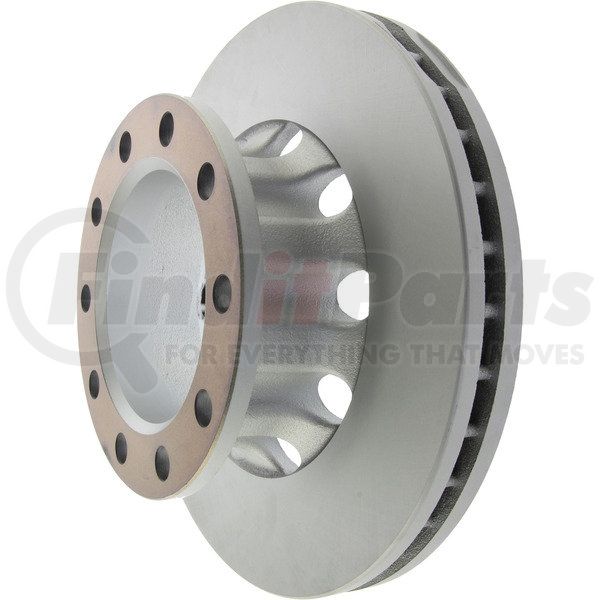

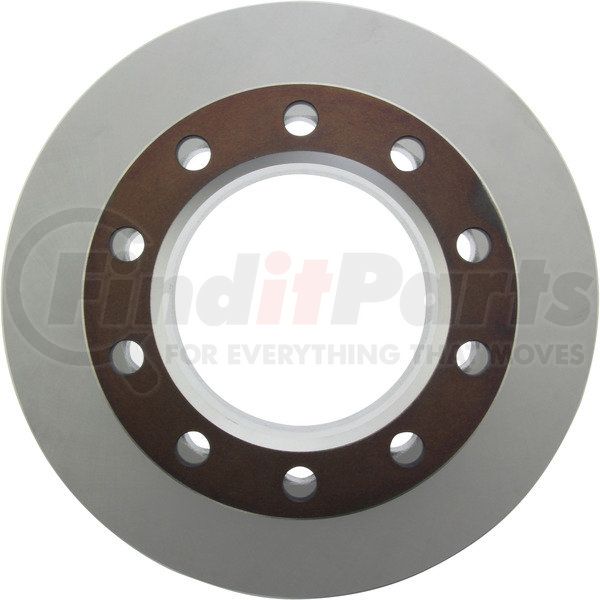

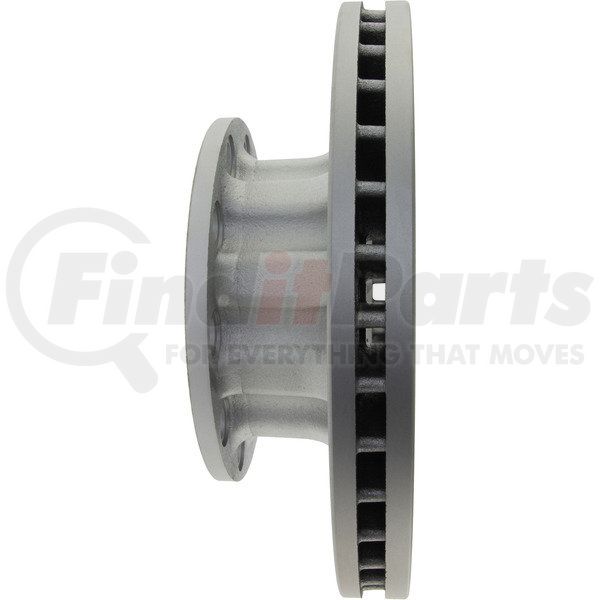

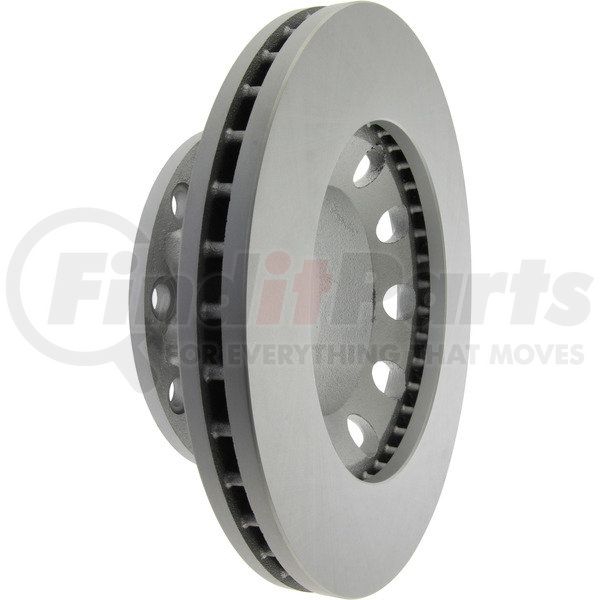

Centric GCX Rotor with Full Coating
Features & Benefits
- RS200 Coating our exclusive corrosion resistant coating for longer life and good looks; Iron FormulationEnhanced iron and high carbon metallurgies means the right rotor for your car; Operational Efficiency Full coverage with 80% fewer SKUs
- For the best corrosion resistance
- RS200™ Zinc-Aluminum Rich Coating
- Optimal Surface Finish
- For consistent and confident braking from the first stop
- Carbon Enhanved Advanced Metallurgy
- For optimal heat transfer and structural strength
- OE Vane Design and Plate Thickness
- For heat capacity and strength
- Low Initial Lateral Run-Out
- For smooth vibration free stopping
- Precision Balance
- For vibration free performance
CENTRIC 320.66032F Specifications
Product Attributes
| Product Grade [cntrc] | Premium |
| Vane Style [cntrc] | Straight |
| Weight [cntrc] Kgs | 16.360 |
| Disc Mounting [cntrc] | Behind the Hub |
| Misc Holes [cntrc] | 0 |
| Weight [cntrc] Lbs | 36.000 |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Discard Thickness | 1.366 IN |
| Discard Thickness | 34.700 MM |
| Nominal Thickness | 36.200 MM |
| Nominal Thickness | 1.425 IN |
| Disc Finish | Fully Coated |
| Hat Finish | Coated |
| Overall Height | 110.900 MM |
| Overall Height | 4.366 IN |
| Outside Diameter | 344.900 MM |
| Outside Diameter | 13.579 IN |
| Mounting Bolt Hole Quantity | 10 |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Bearings Included | No |
| Center Hole Diameter | 5.504 IN |
| Center Hole Diameter | 139.800 MM |
| Mounting Bolt Hole Circle Diameter | 184.200 MM |
| Mounting Bolt Hole Circle Diameter | 7.252 IN |
| Mounting Bolt Hole Diameter | 17.000 MM |
| Mounting Bolt Hole Diameter | 0.669 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 00889590393439 |
CENTRIC 320.66032F Cross References
CENTRIC 320.66032F Fits Vehicles
- GMC C3500HD (1994-2002)
- Chevrolet C3500HD (1994-2002)
- Chevrolet P30 (1997-1999)
- Workhorse W42 (2004-2005)
- Workhorse P30 (2000-2005)
- Workhorse P42 (1999-2005)
- Workhorse P32 (1999-2005)
- GMC P3500 (1997-1999)
