Raybestos 56493R - Raybestos R-Line Brake Rotor
$10949
MSRP: $179.63
Save: $70.14
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
RAYBESTOS part description
Product Description

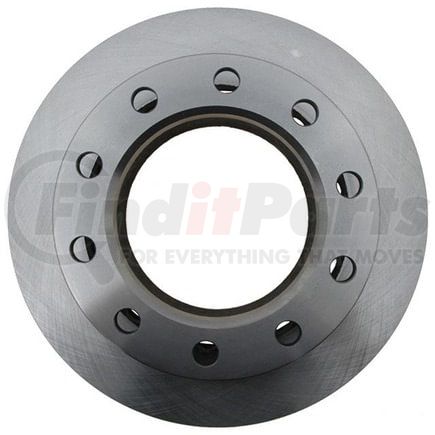

Raybestos R-Line Brake Rotor
Application Summary
2002-1994 Chevrolet C3500HD Rear, 2002-1994 GMC C3500HD Rear, 1999-1997 Chevrolet P30 Rear, 2005-1999 Workhorse Custom Chassis P42 Rear, 1999-1997 GMC P3500 Rear, 2005-2000 Workhorse P30 Rear, 2005-1999 Workhorse P42 Rear
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 5.5 IN |
| Center Hole Diameter | 139.7 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 1.366 IN |
| Discard Thickness | 34.7 MM |
| Harmonize Code | 8708.30.5030 |
| Mounting Bolt Hole Circle Diameter | 7.25 IN |
| Mounting Bolt Hole Circle Diameter | 184.15 MM |
| Mounting Bolt Hole Diameter | 7.25 IN |
| Mounting Bolt Hole Diameter | 184.15 MM |
| Mounting Bolt Hole Quantity | 10 |
| Nominal Thickness | 1.425 IN |
| Nominal Thickness | 36.2 MM |
| Outside Diameter | 13.58 IN |
| Outside Diameter | 344.95 MM |
| Overall Height | 4.365 IN |
| Overall Height | 110.85 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 10 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| UPC | 00829352364246 |
Part Interchanges
- General Motors 12547510
- General Motors 15997232
- General Motors 19175028
- Workhorse W8810507
- Bosch 25010594
- Brembo 09.8915.85
- Brembo 27122
- Delphi RB744
- Mighty Distributing System 55031
- Universal 101463
- Wagner Brake BD125516
- ACDelco 177-763
- Bendix 145028
- Autospecialty AR8632
- Autospecialty AR8632E
- Brake Headquarters BR55743
- California Drum & Rotor 125516
- Eurorotor 55763
- Guardian 52-125516
- Quality Brand 55031
- Quality Brand Q4034
- VIPAR - Vehicle Indusrty Parts & Manufacturing X51040
- BrakeBest 25010594
- BrakeBest 56493
- BrakeBest 56493R
- BrakeBest 56493RGS
- BrakeBest 81-125516
- BrakeBest BD125516
- Centric Parts 120.66032
- Centric Parts 121.66032
- Centric Parts 126.66032SL
- Centric Parts 126.66032SR
- Centric Parts 127.66032L
- Centric Parts 127.66032R
- Centric Parts 320.66032
- Centric Parts 320.66032F
- WABCO - Archived PS125516
- AutoZone 55031
- AutoZone 55031DG
- AutoZone DL55031
- Monroe Brakes BD125516
- Advance Auto Parts 145028
- Advance Auto Parts YH145028
- Advance Auto Parts YH145028C
- Advance Auto Parts YH145028P
- American Remanufactured 789-44032
- American Remanufactured 89-44032
- Autoxtra 8056493
- Autoxtra AX55031
- Casting Numbers 210646-C
- Casting Numbers 325420
- Dura Corp BR55031
- EIS Brakes D17803
- Continental-ContiTech CW36703
- Standard Rotors and Drums 55031
- GREN 671502
- Qualis 55031
- Winhere 442558
- Winhere YH2558
- Newtek Automotive USA 55031
- Formula Blue Hydraulic Brake Parts E12571037
- Promax 14-55031
- Parts Master P125516
- UAP 55031
- DuraGo BR55031
RAYBESTOS 56493R Cross Reference
We have 62 alternatives for the 56493R by RAYBESTOS:
- ACDELCO 177-763
- AUTOSPECIALTY AR8632
- AUTOSPECIALTY AR8632E
- BENDIX 145028
- BOSCH 25010594
- DELPHI RB744
- GM 12547510
- GM 15997232
- GM 19175028
- THE UNIVERSAL GROUP 101463
- WABCO PS125516
- ADVANCE AUTO PARTS 145028
- ADVANCE AUTO PARTS YH145028
- ADVANCE AUTO PARTS YH145028C
- ADVANCE AUTO PARTS YH145028P
- AMERICAN REMANUFACTURED 789-44032
- AMERICAN REMANUFACTURED 89-44032
- AUTOXTRA 8056493
- AUTOXTRA AX55031
- AUTOZONE 55031
- AUTOZONE 55031DG
- AUTOZONE DL55031
- BRAKE HEADQUARTERS BR55743
- BRAKEBEST 25010594
- BRAKEBEST 56493
- BRAKEBEST 56493R
- BRAKEBEST 56493RGS
- BRAKEBEST 81-125516
- BRAKEBEST BD125516
- BREMBO 09.8915.85
- BREMBO 27122
- CALIFORNIA DRUM & ROTOR 125516
- CENTRIC 120.66032
- CENTRIC 121.66032
- CENTRIC 126.66032SL
- CENTRIC 126.66032SR
- CENTRIC 127.66032L
- CENTRIC 127.66032R
- CENTRIC 320.66032
- CENTRIC 320.66032F
- CONTINENTAL-CONTITECH CW36703
- DURA CORP BR55031
- EIS BRAKES D17803
- EUROROTOR 55763
- FORMULA BLUE HYDRAULIC BRAKE PARTS E12571037
- GREN 671502
- GUARDIAN 52-125516
- MIGHTY DISTRIBUTING SYSTEM 55031
- MONROE BRAKES BD125516
- NEWTEK AUTOMOTIVE 55031
- PARTS MASTER P125516
- PROMAX 14-55031
- QUALIS 55031
- QUALITY BRAND 55031
- QUALITY BRAND Q4034
- STANDARD ROTORS AND DRUMS 55031
- UAP 55031
- VIPAR - VEHICLE INDUSRTY PARTS & MANUFACTURING X51040
- WAGNER BRAKE BD125516
- WINHERE 442558
- WINHERE YH2558
- WORKHORSE W8810507
Fits Vehicles
- Workhorse Custom Chassis P42 (1999-2005)
- Workhorse Custom Chassis P32 (1999-2007)
- GMC C3500HD (1994-2002)
- Chevrolet C3500HD (1994-2002)
- Workhorse W42 (2004-2005)
- Workhorse P42 (1999-2005)
- Workhorse P32 (1999-2005)
- Workhorse P30 (2000-2005)
- GMC P3500 (1997-1999)
- Chevrolet P30 (1997-1999)
