CENTRIC 320.65125F Centric GCX Rotor with Full Coating

★★★★★ (0)

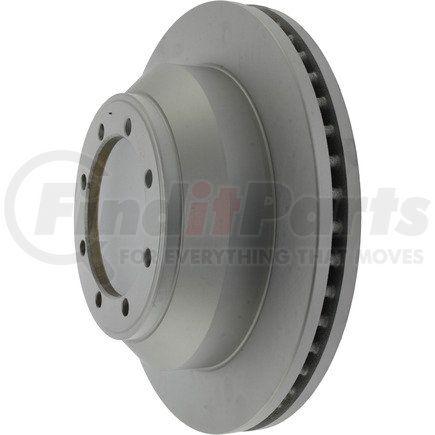

Centric 320.65125F Disc Brake Rotor Centric GCX Rotor with Full Coating
CENTRIC
Tap to view 4 more

$70.49

Limited availability at this price!

In Stock

Get as soon as Thursday, Dec 3
30-day Return Policy On eligible items Details
Free Ground shipping on orders over $499 details
Orders placed over the weekend will be processed the next business day.

CENTRIC 320.65125F Part Description

Manufacturer

CENTRIC

Product Description

Centric GCX Rotor with Full Coating

Features & Benefits

  • RS200 Coating our exclusive corrosion resistant coating for longer life and good looks; Iron Formulation Enhanced iron and high carbon metallurgies means the right rotor for your car; Operational Efficiency Full coverage with 80% fewer SKUs
  • For the best corrosion resistance
  • RS200™ Zinc-Aluminum Rich Coating
  • Optimal Surface Finish
  • For consistent and confident braking from the first stop
  • Carbon Enhanved Advanced Metallurgy
  • For optimal heat transfer and structural strength
  • OE Vane Design and Plate Thickness
  • For heat capacity and strength
  • Low Initial Lateral Run-Out
  • For smooth vibration free stopping
  • Precision Balance
  • For vibration free performance

CENTRIC 320.65125F Specifications

Product Attributes

Disc Mounting [cntrc]Floating / DIH
Weight [cntrc] Kgs15.550
Max Pb Drum Dia [cntrc] In8.984
Misc Holes [cntrc]0
California Proposition 65 Text [cntrc]WARNING: Cancer and Reproductive Harm
Weight [cntrc] Lbs34.200
Vane Style [cntrc]Straight
Product Grade [cntrc]Premium
Max Pb Drum Dia [cntrc] Mm228.200
Discard Thickness1.354 IN
Discard Thickness34.400 MM
Nominal Thickness36.000 MM
Nominal Thickness1.417 IN
Disc FinishFully Coated
Hat FinishCoated
Overall Height107.000 MM
Overall Height4.213 IN
Outside Diameter13.583 IN
Outside Diameter345.000 MM
ABS Tone Ring IncludedNo
Surface TypeSmooth
Solid Or Vented Type RotorVented
Nominal Drum Diameter226.000 MM
Nominal Drum Diameter8.898 IN
Bearings IncludedNo
Center Hole Diameter4.854 IN
Center Hole Diameter123.300 MM
Mounting Bolt Hole Circle Diameter145.000 MM
Mounting Bolt Hole Circle Diameter5.709 IN
Stud/Lug Hole Quantity8
Stud/Lug Hole Diameter13.000 MM
Stud/Lug Hole Diameter0.512 IN

Additional Information

Harmonized Tariff Code (HTS)8708305030
NAFTA Preference Criterion CodeB
Country of Origin (Primary)CN
UPC00889590393132

CENTRIC 320.65125F Cross References

BrandPart Number
MAGMA PRODUCTSPSR205233
RAYBESTOS680680, 680680FZN, 680680R, 680680R2
Raybestos Brakes680680, 680680FZN, 680680R

CENTRIC 320.65125F Fits Vehicles

  • Ford E-350 Super Duty (2008-2019, 2021-2023)
