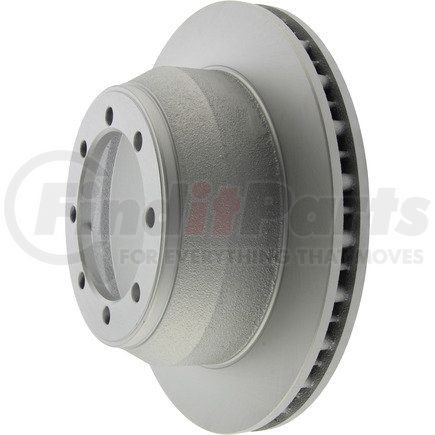

CENTRIC 320.65079F Centric GCX Rotor with Full Coating

★★★★★ (0)
Centric 320.65079F Disc Brake Rotor Centric GCX Rotor with Full Coating
CENTRIC
Tap to view 4 more

$54.49

Limited availability at this price!

In Stock

Get as soon as Thursday, Dec 3
30-day Return Policy On eligible items Details
Free Ground shipping on orders over $499 details
Orders placed over the weekend will be processed the next business day.

CENTRIC 320.65079F Part Description

Manufacturer

CENTRIC

Product Description

Centric GCX Rotor with Full Coating

Features & Benefits

  • RS200 Coating our exclusive corrosion resistant coating for longer life and good looks; Iron FormulationEnhanced iron and high carbon metallurgies means the right rotor for your car; Operational Efficiency Full coverage with 80% fewer SKUs
  • For the best corrosion resistance
  • RS200™ Zinc-Aluminum Rich Coating
  • Optimal Surface Finish
  • For consistent and confident braking from the first stop
  • Carbon Enhanved Advanced Metallurgy
  • For optimal heat transfer and structural strength
  • OE Vane Design and Plate Thickness
  • For heat capacity and strength
  • Low Initial Lateral Run-Out
  • For smooth vibration free stopping
  • Precision Balance
  • For vibration free performance

CENTRIC 320.65079F Specifications

Product Attributes

Max Pb Drum Dia [cntrc] In8.157
California Proposition 65 Text [cntrc]WARNING: Cancer and Reproductive Harm
Disc Mounting [cntrc]Floating / DIH
Misc Holes [cntrc]0
Max Pb Drum Dia [cntrc] Mm207.200
Weight [cntrc] Lbs25.000
Weight [cntrc] Kgs11.360
Vane Style [cntrc]Pillar
Product Grade [cntrc]Premium
Discard Thickness1.102 IN
Discard Thickness28.000 MM
Nominal Thickness30.000 MM
Nominal Thickness1.181 IN
Disc FinishFully Coated
Hat FinishCoated
Overall Height110.700 MM
Overall Height4.358 IN
Outside Diameter12.835 IN
Outside Diameter326.000 MM
ABS Tone Ring IncludedNo
Surface TypeSmooth
Solid Or Vented Type RotorVented
Nominal Drum Diameter8.110 IN
Nominal Drum Diameter206.000 MM
Bearings IncludedNo
Center Hole Diameter4.854 IN
Center Hole Diameter123.300 MM
Mounting Bolt Hole Circle Diameter145.000 MM
Mounting Bolt Hole Circle Diameter5.709 IN
Stud/Lug Hole Quantity8
Stud/Lug Hole Diameter13.000 MM
Stud/Lug Hole Diameter0.512 IN

Additional Information

Harmonized Tariff Code (HTS)8708305030
NAFTA Preference Criterion CodeB
Country of Origin (Primary)CN
UPC00889590392777

CENTRIC 320.65079F Cross References

BrandPart Number
MAGMA PRODUCTSPSR207285
RAYBESTOS66834, 66834FZN, 66834R, 66834R2
Raybestos Brakes66834, 66834FZN, 66834R

CENTRIC 320.65079F Fits Vehicles

  • Ford E-350 Club Wagon (2002-2005)
  • Ford E-350 Econoline (1999-2000)
  • Ford E-350 Econoline Club Wagon (1999, 2001-2002)
  • Ford E-350 Super Duty (1999-2007)
  • Ford F-150 (2000-2003)
  • Ford F-150 Heritage (2004)
