RAYBESTOS 66834 Part Description
Manufacturer
Product Description

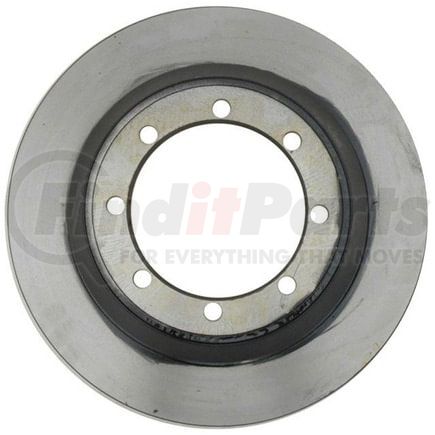

Raybestos Specialty - Truck Brake Rotor
Application Summary
2003-2001 Ford F-150 Rear, 2007-1999 Ford E-350 Super Duty Rear, 2002-1996 Ford E-350 Econoline Club Wagon Rear, 2004 Ford F-150 Heritage Rear, 2005-2002 Ford E-350 Club Wagon Rear, 2000-1996 Ford E-350 Econoline Rear
Features & Benefits
- OE Fit, Form, and Function
- Our vehicle-specific design matches OE fit, form and function, providing ultimate strength and performance
- Cooling Vanes
- We dedicate time to match the cooling vanes on our Specialty rotors to OE designs, ensuring: Optimal cooling Reduced fade Less noise Increased pad life
- Coating
- All Specialty rotors are protected against the elements. All new Specialty rotors come fully coated with Grey Fusion 4.0® rated at 300 hrs. salt spray or a Black Fusion painted hat and edge for rust protection.
- All Specialty rotors are protected against the elements. All new Specialty rotors come fully coated with Grey Fusion 4.0(R) rated at 300 hrs. salt spray or a Black Fusion painted hat and edge for rust protection.
- SAE Standard for Tensile Strength
- Our rotors follow SAE standards for tensile strength, hardness, and iron grade, providing structural integrity and maximum service life
- Turned Finish
- A turned finish provides an excellent surface for the pads to engage with to ensure a smooth and effective stop right out of the box
RAYBESTOS 66834 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 4.86 IN |
| Center Hole Diameter | 123.45 MM |
| Conventional Or Drum-In-Hat Type Rotor | Drum-In-Hat |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 1.102 IN |
| Discard Thickness | 28 MM |
| Harmonize Code | 8708.30.5030 |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 5.709 IN |
| Mounting Bolt Hole Circle Diameter | 145 MM |
| Mounting Bolt Hole Diameter | 0.511 IN |
| Mounting Bolt Hole Diameter | 13 MM |
| Mounting Bolt Hole Quantity | 8 |
| Nominal Thickness | 1.18 IN |
| Nominal Thickness | 29.95 MM |
| Outside Diameter | 12.835 IN |
| Outside Diameter | 326 MM |
| Overall Height | 4.36 IN |
| Overall Height | 110.75 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 8 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00747730618913 |
RAYBESTOS 66834 Cross References
| Brand | Part Number |
|---|---|
| 74675000, 747730618913 | |
| ADVANCE AUTO PARTS | 145268, G12367SD, YH145268, YH145268C, YH145268P |
| AMERICAN REMANUFACTURED | 89-42079 |
| AUTOPARTSOURCE | 492015 |
| AUTOSPECIALTY | AR8579, AR8579E |
| AUTOXTRA | 125701, 8066834, AX54085 |
| AUTOZONE | 54085, 54085DG, 54085DL |
| BENDIX | 145268 |
| BRAKEBEST | 20010366, 66834, 66834FZN, 66834R, 66834RGS, 81-125701, BD125701 |
| BREMBO | 09.9050.85, 27270, 09.9050.11 |
| Brembo | 09.9050.10 |
| CENTRIC | 120.65079, 120.65079CRY, 121.65079, 126.65079CSL, 126.65079CSR, 126.65079SL, 126.65079SR, 127.65079L, 127.65079R, 320.65079, 320.65079F |
| Casting Numbers | 133218, 1C242C026BA, 211256-C, 325506, KH133218 |
| Centric Parts | 120.65079, 120.65079CRY, 121.65079, 126.65079CSL, 126.65079CSR, 126.65079SL, 126.65079SR, 127.65079L, 127.65079R, 320.65079, 320.65079F |
| DURA CORP | BR54085 |
| DuraGo | BR54085 |
| EUCLID | E-12342 |
| FORD | XC2Z2C026BB |
| FORMULA BLUE HYDRAULIC BRAKE PARTS | E12570084 |
| GUARDIAN | 52-125701 |
| MAGMA PRODUCTS | PSR207285 |
| MIGHTY DISTRIBUTING SYSTEM | 54085 |
| MONROE BRAKES | BD125701 |
| MOTORCRAFT | BRR72 |
| Motorcraft | NBRR43 |
| NEOTEK | 1071012GF |
| NEWTEK AUTOMOTIVE | 54085 |
| Newtek Automotive USA | 54085 |
| PEP BOYS | 54085G |
| PROMAX | 14-54085 |
| PRONTO | BR54085 |
| QUALIS | 54085 |
| QUALITY BRAND | 54085, Q4143 |
| STANDARD ROTORS AND DRUMS | 54085 |
| THE UNIVERSAL GROUP | 102004 |
| UAP | 54085 |
| Ultra Brake | 54362 |
| Universal | 102004 |
| VIPAR - VEHICLE INDUSRTY PARTS & MANUFACTURING | X51301 |
| WABCO | PS125701 |
| WABCO - Archived | PS125701 |
| WAGNER | BD125701, BD125701E |
| WAGNER BRAKE | BD125701 |
| WINHERE | 662653, YH2653 |
| WORLDPAC | 1407-25808, 1427-732060 |
| Wagner Brake | BD125701E |
RAYBESTOS 66834 Fits Vehicles
- Ford Econoline (1999-2005)
- Ford F-350 (1998-2005)
- Ford E-350 Super Duty (1999-2007)
- Ford F-150 Heritage (2004)
- Ford E-450 Econoline Super Duty (2000-2002)
- Ford F-150 (2000-2004)
- Ford E-350 Club Wagon (2002-2005)
- Ford E-350 Econoline Club Wagon (1996-2002)
- Ford E-350 Econoline (1996-2000, 2007)
- Ford Econoline Super Duty (1996-1999)
- Ford E-450 Super Duty (2003-2006)
