(888) 312-8812 Login SignupCENTRIC 320.61011F Centric GCX Rotor with Full Coating
Tap to view 4 more
$4849
Limited availability at this price!
1 Day Lead Time
Get as soon as Friday, Sep 25
CENTRIC 320.61011F Part Description
Manufacturer
Product Description

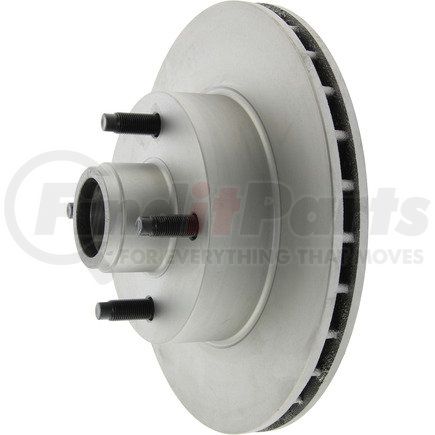

Centric GCX Rotor with Full Coating
Features & Benefits
- RS200 Coating our exclusive corrosion resistant coating for longer life and good looks; Iron Formulation Enhanced iron and high carbon metallurgies means the right rotor for your car; Operational Efficiency Full coverage with 80% fewer SKUs
CENTRIC 320.61011F Specifications
Product Attributes
| Inner Seal # [cntrc] | 417.61000 |
| Weight [cntrc] Kgs | 7.560 |
| Misc Holes [cntrc] | 0 |
| Vane Style [cntrc] | Straight |
| Product Grade [cntrc] | Premium |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Weight [cntrc] Lbs | 16.630 |
| Inner Bearing # [cntrc] | 410.91017 |
| Outer Bearing # [cntrc] | 410.91012 |
| Disc Mounting [cntrc] | Hub & Rotor |
| Discard Thickness | 20.600 MM |
| Discard Thickness | 0.811 IN |
| Nominal Thickness | 22.200 MM |
| Nominal Thickness | 0.874 IN |
| Disc Finish | Fully Coated |
| Hat Finish | Coated |
| Stud Thread Diameter | 0.500 IN |
| Overall Height | 102.300 MM |
| Overall Height | 4.028 IN |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Rotor Outside Diameter | 256.200 MM |
| Rotor Outside Diameter | 10.087 in |
| Solid Or Vented Type Rotor | Vented |
| Bolt Thread Pitch | 20.000 IN |
| Bearings Included | No |
| Center Hole Diameter | 63.800 MM |
| Center Hole Diameter | 2.512 IN |
| Mounting Bolt Hole Circle Diameter | 108.000 MM |
| Mounting Bolt Hole Circle Diameter | 4.252 IN |
| Stud/Lug Hole Quantity | 4 |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 00889590390988 |
CENTRIC 320.61011F Cross References
CENTRIC 320.61011F Fits Vehicles
- Ford Cougar (1985-1988)
- Mercury Zephyr (1978-1983)
- Mercury Marquis (1983-1986)
- Mercury Cougar (1980-1988)
- Mercury Capri (1979, 1982-1986)
- Ford Thunderbird (1980-1988)
- Ford Fairmont (1978-1983)
- Ford Mustang (1979, 1982-1993)
- Ford LTD (1983-1986)
- Ford Granada (1981-1982)
