CENTRIC 320.35014F Centric GCX Rotor with Full Coating

★★★★★ (0)

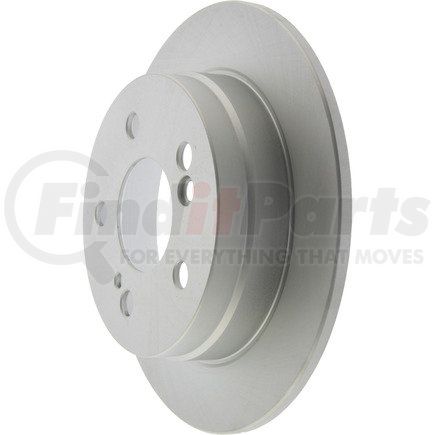

Centric 320.35014F Disc Brake Rotor Centric GCX Rotor with Full Coating
CENTRIC
Tap to view 4 more

$17.99

Limited availability at this price!

In Stock

Get as soon as Thursday, Dec 3
30-day Return Policy On eligible items Details
Free Ground shipping on orders over $499 details
Orders placed over the weekend will be processed the next business day.

CENTRIC 320.35014F Part Description

Manufacturer

CENTRIC

Product Description

Centric GCX Rotor with Full Coating

Features & Benefits

  • RS200 Coating our exclusive corrosion resistant coating for longer life and good looks; Iron FormulationEnhanced iron and high carbon metallurgies means the right rotor for your car; Operational Efficiency Full coverage with 80% fewer SKUs
  • For the best corrosion resistance
  • RS200™ Zinc-Aluminum Rich Coating
  • Optimal Surface Finish
  • For consistent and confident braking from the first stop
  • Carbon Enhanved Advanced Metallurgy
  • For optimal heat transfer and structural strength
  • OE Vane Design and Plate Thickness
  • For heat capacity and strength
  • Low Initial Lateral Run-Out
  • For smooth vibration free stopping
  • Precision Balance
  • For vibration free performance

CENTRIC 320.35014F Specifications

Product Attributes

California Proposition 65 Text [cntrc]WARNING: Cancer and Reproductive Harm
Product Grade [cntrc]Premium
Weight [cntrc] Kgs3.370
Weight [cntrc] Lbs7.420
Misc Holes [cntrc]2
Disc Mounting [cntrc]Floating / DIH
Discard Thickness0.287 IN
Discard Thickness7.300 MM
Nominal Thickness9.000 MM
Nominal Thickness0.354 IN
Disc FinishFully Coated
Hat FinishCoated
Overall Height55.300 MM
Overall Height2.177 IN
Outside Diameter258.000 MM
Outside Diameter10.157 IN
ABS Tone Ring IncludedNo
Surface TypeSmooth
Solid Or Vented Type RotorSolid
Nominal Drum Diameter6.457 IN
Nominal Drum Diameter164.000 MM
Bearings IncludedNo
Center Hole Diameter2.638 IN
Center Hole Diameter67.000 MM
Mounting Bolt Hole Circle Diameter112.000 MM
Mounting Bolt Hole Circle Diameter4.409 IN
Stud/Lug Hole Quantity5
Stud/Lug Hole Diameter15.000 MM
Stud/Lug Hole Diameter0.591 IN

Additional Information

Harmonized Tariff Code (HTS)8708305030
NAFTA Preference Criterion CodeB
Country of Origin (Primary)CN
UPC00889590387797

CENTRIC 320.35014F Cross References

BrandPart Number
MAGMA PRODUCTSPSR383008
RAYBESTOS96303, 96303R
Raybestos Brakes96303, 96303R

CENTRIC 320.35014F Fits Vehicles

  • Mercedes-Benz 190D (1984-1989)
  • Mercedes-Benz 190E (1984-1993)
  • Mercedes-Benz 260E (1987-1989)
  • Mercedes-Benz 300CE (1988-1989)
  • Mercedes-Benz 300D (1987, 1990-1993)
  • Mercedes-Benz 300E (1986-1993)
  • Mercedes-Benz E300 (1995)
