RAYBESTOS 96303 Part Description
Manufacturer
Product Description

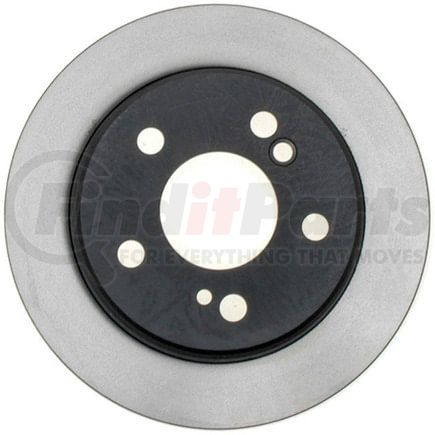

Raybestos Specialty - Street Performance Brake Rotor
Application Summary
1993-1986 Mercedes-Benz 300E Rear, 1993-1984 Mercedes-Benz 190E Rear, 1993-1990 Mercedes-Benz 300D Rear, 1995 Mercedes-Benz E300 Rear, 1989-1984 Mercedes-Benz 190D Rear, 1989-1987 Mercedes-Benz 260E Rear
Features & Benefits
- Application Specific Enhanced Iron
- Raybestos® Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Raybestos(R) Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Cooling Vanes
- The cooling vanes match OE configurations and provide optimal cooling and reduced fade.
- Application Specific Coating
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0® coating on the entire rotor
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0(R) coating on the entire rotor
- Black fusion coating on the rotor hat and Grey Fusion 4.0® coating on the rotor inboard surface and cooling vanes
- Black fusion coating on the rotor hat and Grey Fusion 4.0(R) coating on the rotor inboard surface and cooling vanes
- Turned Finish
- Turned finish minimizes noise and improves responsiveness for smoother stops.
- S-Groove Slot
- Depending on the application, some Raybestos® Performance Rotors are designed with a patented S-Groove Slot.
- Depending on the application, some Raybestos(R) Performance Rotors are designed with a patented S-Groove Slot.
RAYBESTOS 96303 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.638 IN |
| Center Hole Diameter | 67 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 0.287 IN |
| Discard Thickness | 7.3 MM |
| Harmonize Code | 8708.30.5030 |
| Mounting Bolt Hole Circle Diameter | 4.409 IN |
| Mounting Bolt Hole Circle Diameter | 112 MM |
| Mounting Bolt Hole Diameter | 4.409 IN |
| Mounting Bolt Hole Diameter | 112 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 0.354 IN |
| Nominal Thickness | 9 MM |
| Outside Diameter | 10.16 IN |
| Outside Diameter | 258.05 MM |
| Overall Height | 2.19 IN |
| Overall Height | 55.65 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00030999544964 |
RAYBESTOS 96303 Cross References
| Brand | Part Number |
|---|---|
| 030999544964, 120.35014 | |
| ADVANCE AUTO PARTS | 141427, YH141427, YH141427C |
| AMERICAN REMANUFACTURED | 789-74014, 89-74014 |
| AUTOPART INTERNATIONAL | 78874 |
| AUTOSPECIALTY | EBR245, EBR245E |
| AUTOZONE | 3208, 3208DG |
| BECK/ARNLEY | 083-2086 |
| BENDIX | 141427 |
| BOSCH | 36010939 |
| BRAKE HEADQUARTERS | BR07250 |
| BRAKE PRO | 4619414 |
| BRAKEBEST | 36010939, 96303, 96303R, 96303RGS, BD61922 |
| BREMBO | 08.4738.10, 25105, 08.4738.14 |
| CALIFORNIA DRUM & ROTOR | 61922 |
| CENTRIC | 120.35014, 121.35014, 125.35014, 126.35014CSL, 126.35014CSR, 126.35014SL, 126.35014SR, 127.35014L, 127.35014R, 128.35014CL, 128.35014CR, 128.35014L, 128.35014R, 320.35014, 320.35014F |
| CENTURY | 9414 |
| CONTINENTAL-CONTITECH | CW09118 |
| Casting Numbers | 32081, 325821 |
| Centric Parts | 120.35014, 121.35014, 125.35014, 126.35014CSL, 126.35014CSR, 126.35014SL, 126.35014SR, 127.35014L, 127.35014R, 128.35014CL, 128.35014CR, 128.35014L, 128.35014R, 320.35014, 320.35014F |
| DAYTON WALTHER | D7308, D7338 |
| DELPHI | RB322 |
| DURA CORP | BR3208 |
| DuraGo | BR3208 |
| EIS BRAKES | D17417 |
| EUROROTOR | ME161 |
| GREN | 430601 |
| INTERBRAKES | MR091P |
| ITM ENGINE COMPONENTS | 1602718 |
| MAGMA PRODUCTS | PSR383008 |
| MCI | 3910, 3985 |
| MERCEDES-BENZ | 2014231212 |
| MIGHTY DISTRIBUTING SYSTEM | 3208 |
| NEWTEK AUTOMOTIVE | 3208 |
| Newtek Automotive USA | 3208 |
| PROMAX | 14-3208 |
| PRONTO | BR3208 |
| QUALIS | 3208 |
| QUALITEE INTERNATIONAL | 64-13-060 |
| QUALITY BRAND | 3208 |
| QUINTON HAZELL | BDC3447 |
| ROADMATES | 526612 |
| ROCKHILL | 3208 |
| STANDARD ROTORS AND DRUMS | 3208 |
| THE UNIVERSAL GROUP | 110080 |
| TRUSTAR | 413060, R13060 |
| TRW | 1583, DF1583S |
| UAP | 3208 |
| Universal | 110080 |
| VAICO | V3040008 |
| VERA | 3402813 |
| VIPAR - VEHICLE INDUSRTY PARTS & MANUFACTURING | X50429 |
| WAGNER | BD61922 |
| WAGNER BRAKE | BD61922 |
| WINHERE | 441228, YH1228 |
RAYBESTOS 96303 Fits Vehicles
- Mercedes-Benz E300 (1995)
- Mercedes-Benz 300E (1986-1993)
- Mercedes-Benz 300D (1987, 1990-1993)
- Mercedes-Benz 300CE (1988-1989)
- Mercedes-Benz 260E (1987-1989)
- Mercedes-Benz 190E (1984-1993)
- Mercedes-Benz 190D (1984-1989)
