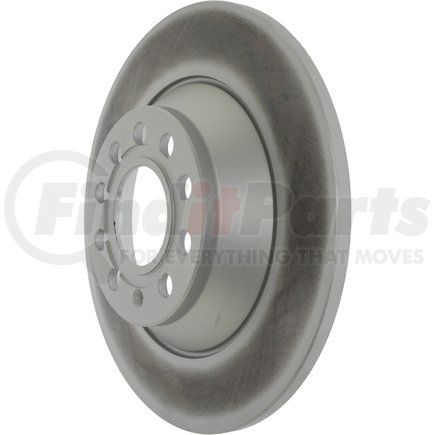

CENTRIC 320.33104C Centric GCX HC Rotor with High Carbon Content and Partial Coating

★★★★★ (0)
Centric 320.33104C Disc Brake Rotor Centric GCX HC Rotor with High Carbon Content and Partial Coating
CENTRIC
Tap to view 4 more

Out of Stock

We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.

We may have similar parts for sale. Search Alternatives >

CENTRIC 320.33104C Part Description

Manufacturer

CENTRIC

Product Description

Centric GCX HC Rotor with High Carbon Content and Partial Coating

Features & Benefits

  • RS200 Coating our exclusive corrosion resistant coating for longer life and good looks; Iron Formulation Enhanced iron and high carbon metallurgies means the right rotor for your car; Operational Efficiency Full coverage with 80% fewer SKUs
  • For the best corrosion resistance
  • RS200™ Zinc-Aluminum Rich Coating
  • Optimal Surface Finish
  • For consistent and confident braking from the first stop
  • Carbon Enhanved Advanced Metallurgy
  • For optimal heat transfer and structural strength
  • OE Vane Design and Plate Thickness
  • For heat capacity and strength
  • Low Initial Lateral Run-Out
  • For smooth vibration free stopping
  • Precision Balance
  • For vibration free performance

CENTRIC 320.33104C Specifications

Product Attributes

Weight [cntrc] Lbs12.400
Disc Mounting [cntrc]Floating
Misc Holes [cntrc]5
Weight [cntrc] Kgs5.640
California Proposition 65 Text [cntrc]WARNING: Cancer and Reproductive Harm
Product Grade [cntrc]Premium
Discard Thickness10.000 MM
Discard Thickness0.394 IN
Nominal Thickness0.472 IN
Nominal Thickness12.000 MM
Disc FinishPartially Coated
Hat FinishCoated
Overall Height49.500 MM
Overall Height1.949 IN
Outside Diameter301.800 MM
Outside Diameter11.882 IN
ABS Tone Ring IncludedNo
Surface TypeSmooth
Solid Or Vented Type RotorSolid
Bearings IncludedNo
Center Hole Diameter68.000 MM
Center Hole Diameter2.677 IN
Mounting Bolt Hole Circle Diameter112.200 MM
Mounting Bolt Hole Circle Diameter4.417 IN
Stud/Lug Hole Quantity5
Stud/Lug Hole Diameter15.300 MM
Stud/Lug Hole Diameter0.602 IN

Additional Information

Harmonized Tariff Code (HTS)8708305030
NAFTA Preference Criterion CodeB
Country of Origin (Primary)CN
UPC00889590399783

CENTRIC 320.33104C Cross References

BrandPart Number
RAYBESTOS980465, 980465FZN, 980465R
Raybestos Brakes980465FZN, 980465R, 980465
