(888) 312-8812 Login SignupDELPHI TC5428 Control Arm and Ball Joint Assembly
Tap to view 20 more
$4249
Limited availability at this price!
In Stock
Get it by Monday, Feb 23
DELPHI TC5428 Part Description
Manufacturer
Product Description

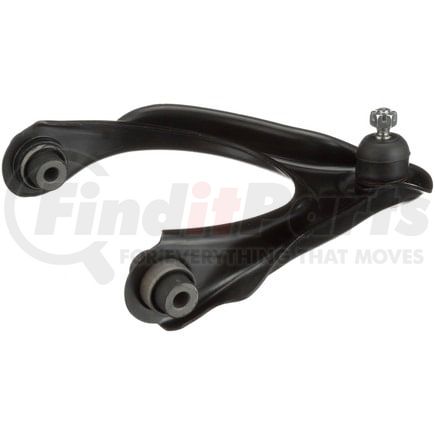

Control Arm and Ball Joint Assembly
Features & Benefits
- Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specifications
- Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
- Control arms utilize robot welding for consistent performance and quality
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TC5428 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Right Upper |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Bushings Included | Yes |
| Ball Joint Mounting Type | Press In |
| Ball Joint Stud Type | Threaded |
| Control Arm Construction | Stamped |
| Control Arm Material | Steel |
| Mounting Hardware Included | Yes |
| Mounting Hole Quantity | 0 |
| Adjustable | No |
| Greaseable | No |
| Control Arm Maximum Width | 10.827 IN |
| Control Arm Maximum Width | 275.00 MM |
| Control Arm Color | Black |
| Ball Joint Thread Diameter | 0.394 IN |
| Ball Joint Thread Diameter | 10.00 MM |
| Ball Joint Stud Length | 1.969 IN |
| Ball Joint Stud Length | 50.00 MM |
| Control Arm Maximum Length | 17.520 IN |
| Control Arm Maximum Length | 445.00 MM |
| Bushing Material | Rubber |
| Thread Direction | Clockwise (Right) |
| Bushing Color | Black |
| Finish | Painted |
| Dust Boot Included | Yes |
| Ball Joint Included | Yes |
| Grade Type | Premium |
| Boot Material | Chloroprene Rubber (CR) |
| Locking Nut Included | Yes |
| Thread Diameter | 10.00 MM |
| Boot Color | Black |
| Steering Type | Power |
| Bearing Material | Plastic |
| Dust Boot Material | Chloroprene Rubber (CR) |
| Thread Diameter | 0.394 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | CN |
| UPC | 00689604307731 |
| VMRS Code | 016001002 |
| UNSPSC | 25172013 |
DELPHI TC5428 Cross References
DELPHI TC5428 Fits Vehicles
- Honda Prelude (1997-2001)
