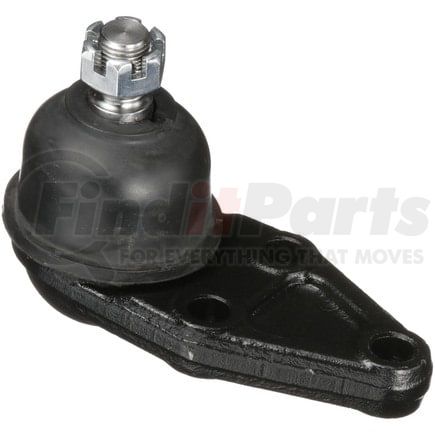

Delphi TC5105 - Ball Joint
$2399
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
DELPHI part description
Product Description
Ball Joint
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Rear Upper |
| Material | Steel |
| Color | Black |
| Stud Thread Diameter | 0.63 IN |
| Stud Thread Diameter | 16 MM |
| Castle Nut Included | Yes |
| Grease Fitting Included | No |
| Suspension Grade Type | Standard |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Width | 62 MM |
| Type | Threaded |
| Cotter Pin Included | Yes |
| Cotter Pin Hole | Yes |
| Mounting Hardware Included | No |
| Washers Included | No |
| Height | 3.980 IN |
| Height | 101.00 MM |
| Nuts Included | No |
| Mounting Hole Quantity | 3 |
| Adjustable | No |
| Greaseable | No |
| Stud Thread Length | 0.87 IN |
| Stud Thread Length | 22 MM |
| Mounting Type | Bolt-In |
| Distance Between Mounting Holes | 52.10 MM |
| Dust Boot Material | Rubber |
| Tapered Stud | Yes |
| Stud Thread Pitch | 1.5 MM |
| Length | 162.00 MM |
| Length | 6.380 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| UPC | 00689604299173 |
| VMRS Code | 016001014 |
| UNSPSC | 25174203 |
Part Interchanges
Fits Vehicles
- Mitsubishi Montero (2001-2006)
