(888) 312-8812 Login SignupDELPHI TC3563 Control Arm and Ball Joint Assembly
Tap to view 8 more
$11549
Limited availability at this price!
5 Day Lead Time
Get it by Wednesday, Jul 15
DELPHI TC3563 Part Description
Manufacturer
Product Description

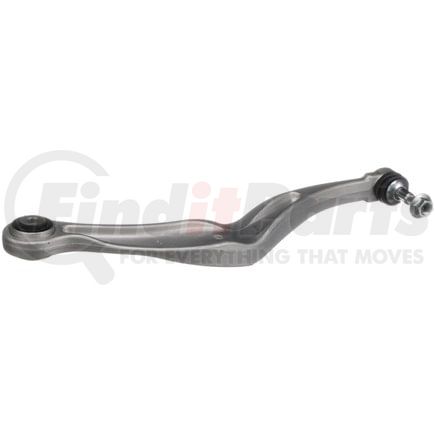

Control Arm and Ball Joint Assembly
Features & Benefits
- Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specifications
- Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
- Control arms utilize robot welding for consistent performance and quality
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TC3563 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Rear Left Upper Rearward |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Bushings Included | Yes |
| Ball Joint Mounting Type | Machined |
| Ball Joint Stud Type | Threaded |
| Control Arm Construction | Casting/Forged |
| Mounting Hardware Included | Yes |
| Mounting Hole Quantity | 1 |
| Adjustable | No |
| Greaseable | No |
| Control Arm Maximum Width | 2.638 IN |
| Control Arm Maximum Width | 67.00 MM |
| Control Arm Color | Gray |
| Ball Joint Thread Diameter | 14.00 MM |
| Ball Joint Stud Length | 83.00 MM |
| Control Arm Maximum Length | 20.591 IN |
| Control Arm Maximum Length | 523.00 MM |
| Mounting Hole Diameter | 12.20 MM |
| Bushing Material | Rubber |
| Thread Direction | Clockwise (Right) |
| Bushing Color | Black |
| Finish | Uncoated |
| Dust Boot Included | Yes |
| Ball Joint Included | Yes |
| Control Arm Material | Aluminum |
| Grade Type | Premium |
| Boot Material | Chloroprene Rubber (CR) |
| Locking Nut Included | Yes |
| Thread Diameter | 14.00 MM |
| Boot Color | Black |
| Steering Type | Power |
| Bearing Material | Plastic |
| Dust Boot Material | Chloroprene Rubber (CR) |
| Ball Joint Thread Diameter | 0.551 IN |
| Ball Joint Stud Length | 3.268 IN |
| Thread Diameter | 0.551 IN |
| Mounting Hole Diameter | 0.480 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Country of Origin (Primary) | TR |
| UPC | 00689604297001 |
| VMRS Code | 016008121 |
| UNSPSC | 25172013 |
DELPHI TC3563 Cross References
DELPHI TC3563 Fits Vehicles
- BMW 550i GT xDrive (2010-2017)
- BMW 535i GT xDrive (2011-2017)
- BMW 535i GT (2010-2017)
- BMW 550i GT (2010-2015)
