CENTRIC 320.40067 Part Description
Manufacturer
Product Description

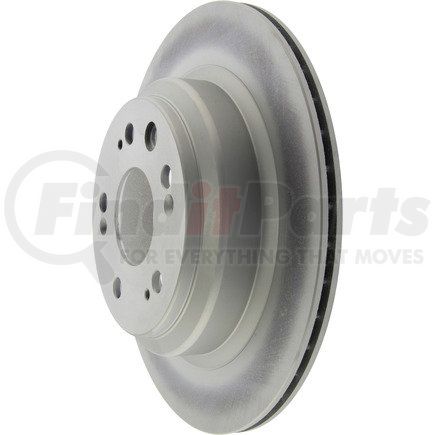

Centric GCX Rotor with Partial Coating
Features & Benefits
- RS200 Coating our exclusive corrosion resistant coating for longer life and good looks; Iron FormulationEnhanced iron and high carbon metallurgies means the right rotor for your car; Operational Efficiency Full coverage with 80% fewer SKUs
CENTRIC 320.40067 Specifications
Product Attributes
| Disc Mounting [cntrc] | Floating / DIH |
| Vane Style [cntrc] | Straight |
| Max Pb Drum Dia [cntrc] In | 7.520 |
| Weight [cntrc] Kgs | 5.230 |
| Product Grade [cntrc] | Premium |
| Weight [cntrc] Lbs | 11.500 |
| Misc Holes [cntrc] | 5 |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Max Pb Drum Dia [cntrc] Mm | 191.000 |
| Discard Thickness | 14.000 MM |
| Discard Thickness | 0.551 IN |
| Nominal Thickness | 16.000 MM |
| Nominal Thickness | 0.630 IN |
| Disc Finish | Partially Coated |
| Hat Finish | Coated |
| Overall Height | 67.000 MM |
| Overall Height | 2.638 IN |
| Outside Diameter | 309.500 MM |
| Outside Diameter | 12.185 IN |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Nominal Drum Diameter | 189.500 MM |
| Nominal Drum Diameter | 7.461 IN |
| Bearings Included | No |
| Center Hole Diameter | 2.760 IN |
| Center Hole Diameter | 70.100 MM |
| Mounting Bolt Hole Circle Diameter | 120.000 MM |
| Mounting Bolt Hole Circle Diameter | 4.724 IN |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 14.700 MM |
| Stud/Lug Hole Diameter | 0.579 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 889590388817 |
CENTRIC 320.40067 Part Interchanges
| Brand | Part Number |
|---|---|
| Raybestos Brakes | 980342, 980342FZN, 980342R |
CENTRIC 320.40067 Cross References
We have 3 alternatives for the 320.40067 by CENTRIC:
