(888) 312-8812 Login SignupCENTRIC 120.6514 Premium Brake Rotor
Tap to view 4 more
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
CENTRIC 120.6514 Part Description
Manufacturer
Product Description

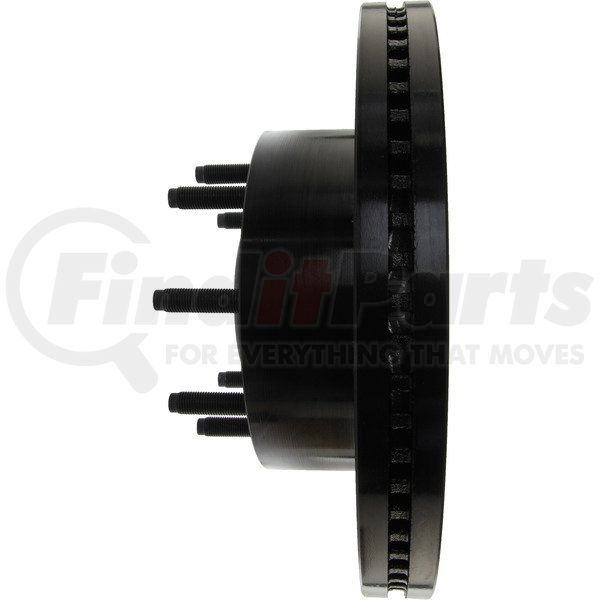

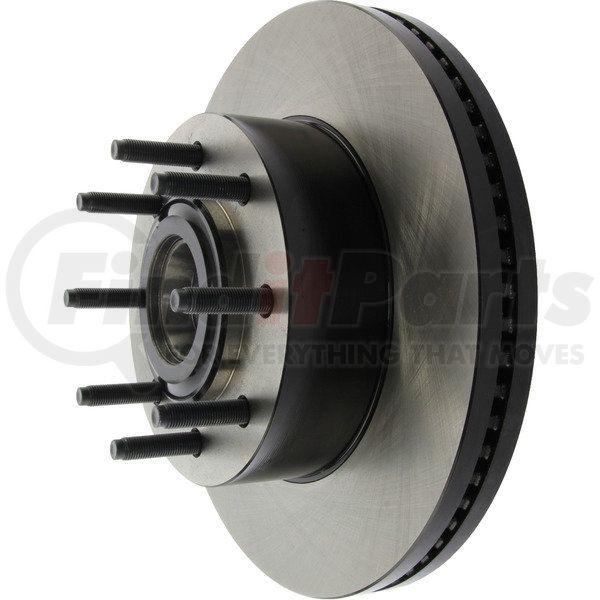

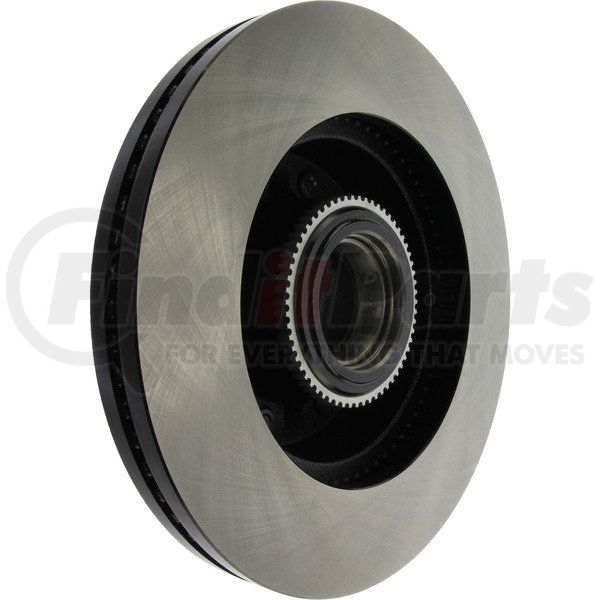

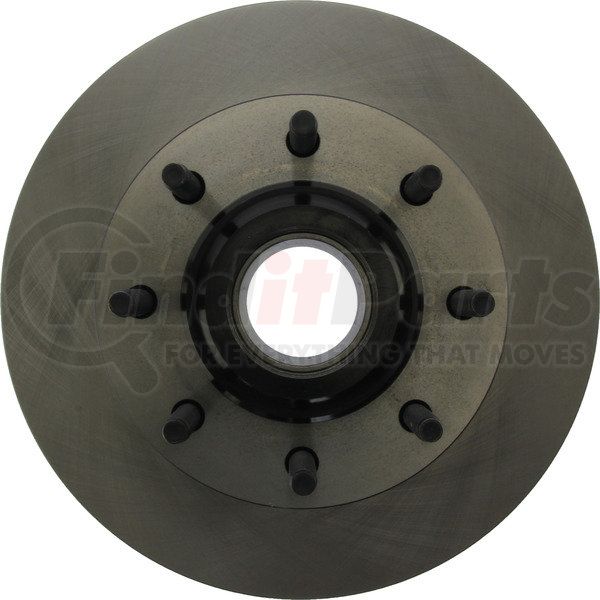

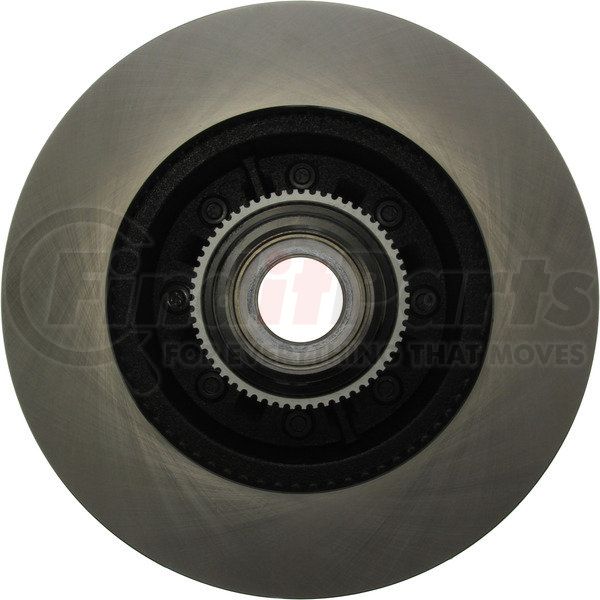

Premium Brake Rotor
Application Summary
2012 - 2020 Ford F-250 Super Duty, 2012 - 2020 Ford F-350 Super Duty
Features & Benefits
- Symmetric vane; split-core castings for uniform heat distribution. Black E-Coat anti-corrosive coating protects much better than competitors spray paint. Double disc ground friction surface for optimal performance and serviced life
Premium rotor; rotors; Centric; brake rotor; break; brake disc; disc brake
CENTRIC 120.6514 Specifications
Product Attributes
| Discard Thickness | 1.433 IN |
| Discard Thickness | 36.40 MM |
| Nominal Thickness | 1.496 IN |
| Nominal Thickness | 38.00 MM |
| Hat Finish | Coated |
| Stud Thread Diameter | 14.00 MM |
| Outside Diameter | 14.291 IN |
| Outside Diameter | 363.00 MM |
| ABS Tone Ring Included | Yes |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Bolt Thread Pitch | 1.50 MM |
| Center Hole Diameter | 4.921 IN |
| Center Hole Diameter | 125.00 MM |
| Mounting Bolt Hole Circle Diameter | 6.693 IN |
| Mounting Bolt Hole Circle Diameter | 170.00 MM |
| Stud/Lug Hole Quantity | 8 |
| Disc Mounting [cntrc] | Hub & Rotor |
| Hat Inside Diameter [cntrc] | 8.118 IN |
| Hat Inside Diameter [cntrc] | 206.200 MM |
| Height | 4.555 |
| Hub Hole/Whl Reg [cntrc] | 125.0 MM |
| Misc Holes [cntrc] | 8 |
| OEM Vane Count [cntrc] | 67 |
| Vane Style [cntrc] | Straight |
| Weight [cntrc] | 28.260 KG |
| Weight [cntrc] | 62.300 LB |
| Disc Mounting | Hub & Rotor |
| Hat Inside Diameter | 8.118 IN |
| Hat Inside Diameter | 206.200 MM |
| Hub Hole Diameter | 125.0 MM |
| Misc Holes | 8 |
| Oem Vane Quantity | 67 |
| Vane Style | Straight |
| Weight | 28.260 KG |
| Weight | 62.300 LB |
Additional Information
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| UPC | 00805890968030 |
CENTRIC 120.6514 Cross References
CENTRIC 120.6514 Fits Vehicles
- Ford F-350 Super Duty (2012-2021)
- Ford F-250 Super Duty (2012-2021)
