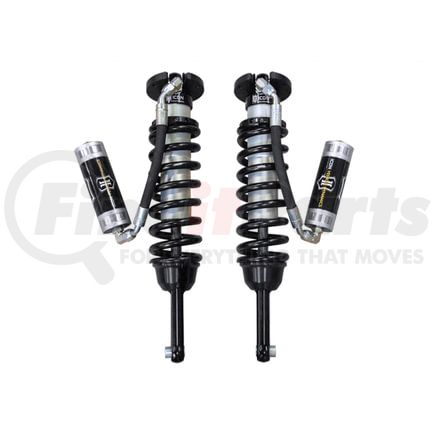

ICON 58747 Part Description
Manufacturer
Product Description
10-14 FJ/10-24 4RNR/10-23 GX EXT TRAVEL 2.5 VS RR COILOVER KIT
Features & Benefits
- Adjustable coilovers yield 0-3.5" of front lift height
- Increased wheel travel and vehicle specific valving provides unrivaled ride quality across a wide range of on and off-road use
- Extended Travel length requires installation of aftermarket front upper control arms
- Superior low speed control reduces body roll and increases on-road stability
- External reservoir to attain cooler operating temperatures during extended off-road use
- High quality ICON-engineered coil springs guaranteed for life against sagging or breaking
- Corrosion resistant CAD plated shock body with 7/8" shaft
- FK Rod End bearings provide extended longevity and minimal deflection
- Fully serviceable design allows for revalves, rebuilds, and an immeasurable service life
- Bolt-in design makes for an easy install into OEM shock location
- All ICON 2.5 Series Piggyback and Remote Reservoir shocks can be upgraded to ICON’s Compression Damping Control Valve (CDCV)
Factory Wheels & Tires Fitment: Yes
ICON 58747 Specifications
Product Attributes
| Aap_uda_12 | EA |
| Aap_uda_22 | 1 |
| Aap_uda_4 | 55 |
| Active or Passive Suspension | Passive |
| Add-on Part | 198001 - BILLET SPANNER WRENCH KIT |
| Adjustable Compression | No |
| Adjustable Damping | NO |
| Adjustable Rebound | No |
| Adjustable Ride Height | Yes |
| Assembled | Yes |
| Body Diameter | 2.5 in |
| California Prop 65 Warning | Yes |
| Coil Over Springs Included | Yes |
| Compressed Length | 17.42 IN |
| Cylinder Color | Silver |
| Cylinder Finish | Cadmium Plated |
| Cylinder Material | Steel |
| Damping Type | Oil |
| Dust Shield Included | No |
| Extended Length | 22.57 IN |
| 10107 | 650 PPI |
| Gas Charged | yes |
| Grade Type | Performance |
| Includes Bump Stop | No |
| Internal Construction Type | Single Tube |
| Lower Mount Type | Eyelet |
| Material | Aluminum |
| Maximum Lift | 3.5 IN |
| Maximum Ride Height Raising Distance | 3.5 IN |
| Minimum Lift | 0 IN |
| OEM Wheels & Tires Fitment | Yes |
| Recommended Aftermarket Tires | 33" x 11.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required) |
| Recommended Aftermarket Wheels | ICON Alloys - 20x9" w/ 5” Backspace / 0mm Offset |
| Remote Reservoir | Yes |
| Reservoir Style | Remote |
| Self-Leveling | No |
| Service Parts | 252003 - SEAL INSTALL TOOL 2.5/3.0 |
| Shaft Diameter | 0.875 IN |
| Shock Absorber Body End Measuring Point | Top of Upper Mount Plate |
| Shock Absorber Rod End Measuring Point | Center of Eylet |
| Spring Color | Black |
| Spring Material | Steel |
| Spring Rate Type | Linear |
| Title | ICON 2010-2024 Toyota 4Runner/2010-2014 FJ Cruiser/2010-2023 Lexus GX460, 0-3.5" Lift, V.S. 2.5 Series Extended Travel Coilover Kit, Remote Reservoir |
| Travel Length | 5.16 IN |
| Upper Mount Type | Mounting Plate |
| Valving Type | Digressive |
Additional Information
| Warranty Special | 1 Year-Shock Absorbers; Limited Lifetime-Coil Springs |
| Warranty Special UOM | TX |
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| NAFTA Preference Criterion Code | C |
| UPC | 00840103404431 |
ICON 58747 Cross References
ICON 58747 Fits Vehicles
- Toyota FJ Cruiser (2010-2014)
- Toyota 4Runner (2010-2024)
- Lexus GX460 (2010-2023)
