(888) 312-8812 Login SignupFLEETGUARD FF5632 Fuel Filter - 7.94 in. Height, Cummins 4934845
Tap to view 3 more
MSRP: $43.60
$2799
Save $15.61
Limited availability at this price!
In Stock
Get it by Thursday, Feb 5

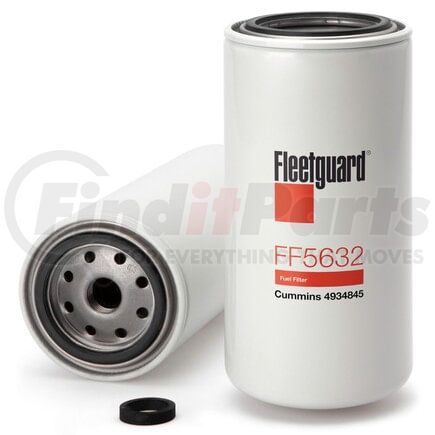

FLEETGUARD FF5632 Part Description
Manufacturer
Features & Benefits
- Grip-friendly contour helps with removal inside confined engine compartments
- Thread alignment reduces cross-thread risk during overhead filter mounting tasks
- Weight distribution allows balanced handling during under-chassis service operations
- End-cap stiffness helps prevent distortion during rapid pressure fluctuations
- Surface treatment reduces sticking after extended exposure to warming engine bays
Fleetguard Fuel Filter
The Fleetguard Fuel Filter is built to support consistent fuel-system cleanliness by capturing fine particulate matter before it can circulate through sensitive injection components. Its extended 7.94-inch height provides space for a deep filtration path while still fitting common housings used on Cummins applications such as 4934845. The canister structure is shaped to tolerate vibration patterns found on high-output engines, and its sealing surface engages smoothly against the mounting base to limit installation complications. Moreover, the Fleetguard FF5632’s form supports steady flow during long operating periods in varied environments.
FLEETGUARD FF5632 Specifications
Product Attributes
| Efficiency (TWA) | 0.98 |
| Micron Rating | 5 µm (SAE J1985) |
| Thread Size | M20 × 1.5‑6H INT |
| Gasket OD / ID | 2.83 in / 2.46 in |
| Standpipe | No |
| Outer Diameter | 3.68 in (93.5 mm) |
| Filter Type | Spin-On Fuel Filter |
| Overall Length | 7.94 in (201.6 mm) |
| Gasket Inside Diameter | 2.459843848 IN |
| Gasket Outside Diameter | 2.829922788 IN |
| Height | 7.935043655 in |
| Gasket Inside Diameter | 2.459843848 IN |
| Largest Outside Diameter | 3.679923247 IN |
| Gasket Inside Diameter | 2.459843848 IN |
| Gasket Outside Diameter | 2.829922788 IN |
| Gasket Outside Diameter | 2.829922788 IN |
| Height | 7.935043655 in |
| Height | 7.935043655 in |
| Largest Outside Diameter | 3.679923247 IN |
| Largest Outside Diameter | 3.679923247 IN |
Additional Information
| Warranty Distance | 100000 |
| Warranty Distance UOM | DH |
| Warranty Time | 1 |
| Warranty Time UOM | YR |
| UPC | 00638217146039 |
FLEETGUARD FF5632 Cross References
| Brand | Part Number |
|---|---|
| FGFF5632, F37Z9928486A | |
| BALDWIN | BF7940 |
| Baldwin | BK6031 |
| CARQUEST | 86966 |
| CUMMINS | 4934845 |
| CUMMINS (OEM) | 4934845 |
| DYNAPAC | 4812041530 |
| Donaldson | P550880 |
| FRAM | P10715 |
| HAGIE | 317160 |
| HASTINGS | FF1174 |
| HITACHI | YA00019068 |
| HYUNDAI | 11Q770010PB |
| JC Bamford | 333F6607 |
| JCB | 333F6607 |
| LUBER-FINER | LFF5632 |
| MACK | 5839FF5632 |
| Mann-Filter | WK9037X |
| N/A | YA00019068, H374WK, FC45012 |
| NAPA | 3966 |
| PREMIUM GUARD | DF30165 |
| Purolator | F65942 |
| SENNEBOGEN | 167975 |
| WIX FILTERS | WIX FILTERS, 33966, 33966NP |
| Wix | 33966 |
FLEETGUARD FF5632 Customer Reviews
No reviews yet
Be the first to review this product!
FLEETGUARD FF5632 Manufacturer Information
Since 1987, Fleetguard® has been one of the world's leaders in filtration solutions for both on- and off-highway applications. Whether it's air, fuel, oil, or hydraulic filtration, Fleetguard filters provide superior protection against contaminants for engines and sensitive equipment in the agriculture, construction, commercial vehicle, marine, mining, and power generation industries. Each filter is fitted with high-quality filter media for longer service life as well as a more compact design to accommodate shrinking engine compartments found in modern vehicles. All products also undergo extensive performance tests and strict quality control procedures to ensure durability and consistent performance, even in the most demanding operating conditions.
FLEETGUARD FF5632 Questions & Answers
No questions yet
Be the first to ask a question about this product!
