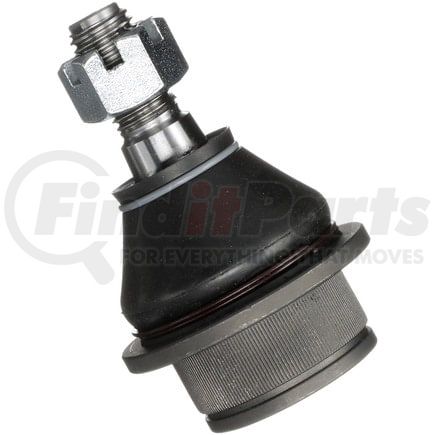

(888) 312-8812 Login SignupDELPHI TC5293 Ball Joint
Tap to view 8 more
$3649
Limited availability at this price!
In Stock
Get it by Thursday, Feb 19
DELPHI TC5293 Part Description
Manufacturer
Product Description
Ball Joint
Features & Benefits
- Delphi ball joints manufactured with high quality forgings for increased strength and smooth operation
- Ball joints utilize chloroprene rubber boots which improves durability, preventing premature failure
- Delphi machines to micron tolerances to guarantee durability and smooth joint operation
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TC5293 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Rear Lower |
| Material | Ball Material - Alloy Steel SAE 5140, Housing Material - Carbon Steel SAE 1040 |
| Maximum Outside Diameter | 1.909 IN |
| Color | Gray |
| Stud Thread Diameter | 12 MM |
| Castle Nut Included | Yes |
| Grease Fitting Included | No |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Ball Joint Assembly | No |
| Width | 48.5 MM |
| Cotter Pin Included | Yes |
| Cotter Pin Hole | Yes |
| Mounting Hardware Included | Yes |
| Washers Included | No |
| Height | 3.701 IN |
| Height | 94.00 MM |
| Nuts Included | Yes |
| Mounting Hole Quantity | 0 |
| Adjustable | No |
| Stud Thread Length | 0.764 IN |
| Stud Thread Length | 19.4 MM |
| Mounting Type | Press-In |
| Dust Boot Material | Rubber |
| Mount Plate Included | No |
| Tapered Stud | Yes |
| Stud Tapered End 2 Diameter | 0.661 IN |
| Stud Tapered End 2 Diameter | 16.8 MM |
| Stud Tapered End 1 Diameter | 0.488 IN |
| Stud Tapered End 1 Diameter | 12.4 MM |
| Stud Thread Pitch | 1.75 MM |
| Maximum Outside Diameter | 48.49 MM |
| Stud Thread Diameter | 0.47 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Country of Origin (Primary) | TR |
| UPC | 00689604288276 |
| VMRS Code | 016001015 |
| UNSPSC | 25174203 |
DELPHI TC5293 Cross References
DELPHI TC5293 Fits Vehicles
- Lincoln Navigator (2007-2017)
- Ford Expedition (2007-2017)
