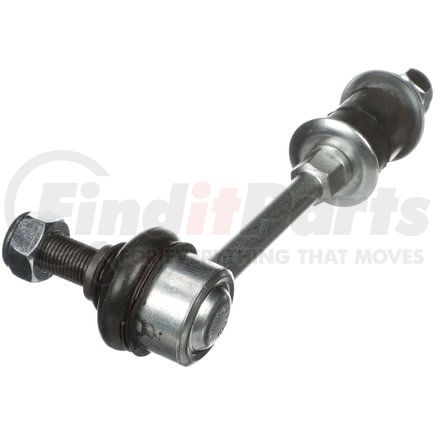

(888) 312-8812 Login SignupDELPHI TC5046 Suspension Stabilizer Bar Link
Tap to view 5 more
$1849
Limited availability at this price!
In Stock
Get it by Friday, Jul 24
DELPHI TC5046 Part Description
Manufacturer
Product Description
Suspension Stabilizer Bar Link
Features & Benefits
- Sway bar links manufactured with ultrasonic molding to help prevent future weld breakage
- Delphi sway bar links are fatigue tested to avoid failure
- Delphi machines to micron tolerances to guarantee durability and smooth joint operation
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TC5046 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front |
| Material | Steel |
| Bushing Color | Black |
| Length | 151.00 MM |
| Length | 5.945 IN |
| End 1 Type | Bushing |
| End 2 Type | Ball Joint |
| Bushings Included | Yes |
| Dust Boot Included | Yes |
| Bolt Thread Size | M12 |
| Width | 32 MM |
| Width | 1.26 IN |
| Washers Included | No |
| Height | 2.953 IN |
| Height | 75.00 MM |
| Grade Type | Standard Replacement |
| Bolts Included | No |
| Housing Material | Steel |
| Greaseable | No |
| Bolt Head Diameter | 12.00 MM |
| Bushing Material | Rubber |
| Wrench Size | 14mm |
| Bolt Length | 0.972 IN |
| Bolt Length | 24.70 MM |
| Bolt Thread Diameter | 12.00 MM |
| Locking Nuts Included | Yes |
| Bolt Head Diameter | 0.470 IN |
| Bolt Thread Diameter | 0.470 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Country of Origin (Primary) | TR |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| UPC | 00689604283509 |
| VMRS Code | 016004006 |
| UNSPSC | 25172001 |
DELPHI TC5046 Cross References
DELPHI TC5046 Fits Vehicles
- Toyota 4Runner (1990-1995)
