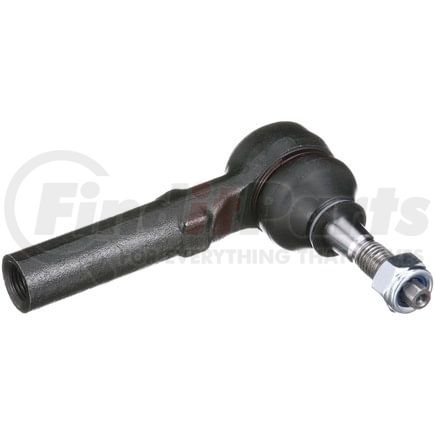

Delphi TA5370 - Tie Rod End
$2699
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
DELPHI part description
Product Description
Tie Rod End
Product Attributes
| Position(s) | Outer |
| Item Grade | Standard Replacement |
| Length | 132.00 MM |
| Color | Black |
| End 2 Gender | Female |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Dust Boot Included | Yes |
| Width | 39.5 MM |
| Type | Straight |
| Mounting Hardware Included | Yes |
| End 2 Thread Diameter | 0.551 IN |
| End 2 Thread Diameter | 14.00 MM |
| Height | 102.30 MM |
| Housing Material | Steel |
| Tube Diameter | 0.866 IN |
| Tube Diameter | 22.00 MM |
| Adjustable | No |
| Greaseable | No |
| Weight | 1.21 lb |
| Cone Outside Diameter | 16.00 MM |
| Bearing Material | Plastic |
| End 1 Thread Direction | Clockwise (Right) |
| End 2 Thread Direction | Clockwise (Right) |
| Stud Type | Threaded |
| End 2 Thread Pitch | 1.5 MM |
| Length - Stud Center to End | 4.350 IN |
| Length - Stud Center to End | 110.50 MM |
| Dust Boot Material | Rubber |
| Tie Rod Material | Steel |
| End 1 Thread Diameter | 0.472 IN |
| Shank Length | 16.00 MM |
| Stud Length | 16.00 MM |
| Grade Type | Standard |
| Grade | Premium |
| End 1 Thread Diameter | 11.99 MM |
| Shank Length | 0.630 IN |
| Stud Length | 0.630 IN |
| Cone Outside Diameter | 0.630 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708998175 |
| Harmonized Tariff Code (HTS) | 8708998180 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | TR |
| UPC | 00689604289426 |
| VMRS Code | 015004045 |
| UNSPSC | 25174205 |
Part Interchanges
- Beck/Arnley 101-7868
- MOOG Chassis Products ES800030
- General Motors 15140337
- General Motors 15220347
- General Motors 19149840
- General Motors 22664783
- General Motors 22684863
- General Motors 22729240
- General Motors 22729249
- MAS Industries TO92245
- MAS Industries TO92245XL
- TRW JTE1289
- 25937432
- MES80479
- 531-234
- GES80479
- TXES80479
- ES80479
Fits Vehicles
- Pontiac G5 (2007-2010)
- Pontiac Pursuit (2005-2006)
- Pontiac Torrent (2006-2009)
- Chevrolet HHR (2006-2011)
- Chevrolet Cobalt (2005-2010)
- Chevrolet Equinox (2005-2009)
- Saturn Ion (2003-2007)
- Saturn Vue (2002-2009)
