(888) 312-8812 Login SignupDELPHI TA5309 Tie Rod End
Tap to view 1 more
$4199
5 Day Lead Time
Due to limited availability, we will confirm your order and notify you within 1 business day.

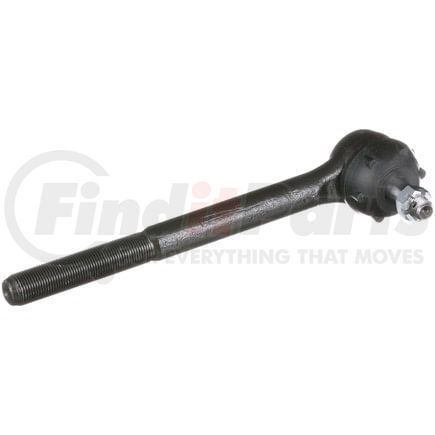

DELPHI TA5309 Part Description
Manufacturer
Product Description
Tie Rod End
Features & Benefits
- Delphi includes the necessary accessories for a complete job
- Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
- Delphi tie rods are fatigue tested to avoid failure
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TA5309 Specifications
Product Attributes
| Position(s) | Inner |
| Item Grade | Standard Replacement |
| Length | 252.00 MM |
| Color | Black |
| End 1 Gender | Male |
| End 2 Gender | Male |
| Pre-Greased | Yes |
| Grease Fitting Included | Yes |
| Dust Boot Included | Yes |
| Width | 43 MM |
| Type | Straight |
| Mounting Hardware Included | Yes |
| End 2 Thread Diameter | 0.687 IN |
| End 2 Thread Diameter | 17.46 MM |
| Height | 84.40 MM |
| Housing Material | Steel |
| Tube Diameter | 0.787 IN |
| Tube Diameter | 20.00 MM |
| Adjustable | No |
| Greaseable | Yes |
| Weight | 1.39 lb |
| Cone Outside Diameter | 15.90 MM |
| Bearing Material | Plastic |
| End 2 Thread Direction | Counterclockwise (Left) |
| Stud Type | Threaded |
| Length - Stud Center to End | 8.583 IN |
| Length - Stud Center to End | 218.00 MM |
| Dust Boot Material | Rubber |
| Tie Rod Material | Steel |
| End 2 Threads Per Inch | 18 |
| End 1 Threads Per Inch | 20 |
| End 1 Thread Diameter | 0.437 IN |
| End 1 Thread Diameter | 11.11 MM |
| Shank Length | 15.90 MM |
| Stud Length | 15.90 MM |
| Grade Type | Standard Replacement |
| Grade | Premium |
| Shank Length | 0.626 IN |
| Stud Length | 0.626 IN |
| Cone Outside Diameter | 0.626 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708998180 |
| Warranty Special | Limited |
| Warranty Special UOM | LT |
| Harmonized Tariff Code (Schedule B) | 8708998175 |
| Country of Origin (Primary) | TR |
| UPC | 00689604288962 |
| VMRS Code | 015004070 |
| UNSPSC | 25174205 |
DELPHI TA5309 Cross References
DELPHI TA5309 Fits Vehicles
- Buick GS (1971-1972)
- Buick GS 455 (1971-1972)
- Buick Skylark (1971-1972)
- Buick Sportwagon (1971-1972)
- Chevrolet Chevelle (1971-1972)
- Chevrolet El Camino (1971-1972)
- Chevrolet Monte Carlo (1971-1972)
- GMC Sprint (1971-1972)
- Oldsmobile 442 (1971)
- Oldsmobile Cutlass (1971-1972)
- Oldsmobile F85 (1971-1972)
- Oldsmobile Vista Cruiser (1971-1972)
- Pontiac GTO (1971-1972)
- Pontiac Grand Prix (1971-1972)
- Pontiac LeMans (1971-1972)
