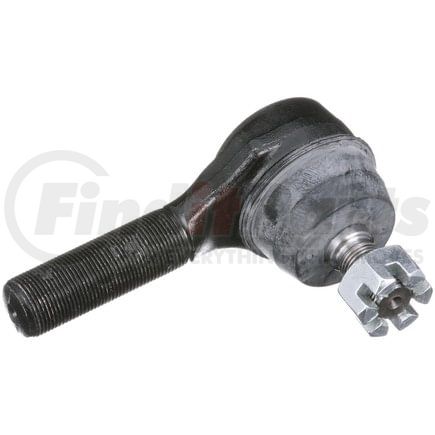

DELPHI TA5273 Part Description
Manufacturer
Product Description
Tie Rod End
Features & Benefits
- Delphi includes the necessary accessories for a complete job
- Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
- Delphi tie rods are fatigue tested to avoid failure
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TA5273 Specifications
Product Attributes
| Position(s) | Outer |
| Item Grade | Standard Replacement |
| Length | 140.00 MM |
| Color | Black |
| End 1 Gender | Male |
| End 2 Gender | Male |
| Pre-Greased | Yes |
| Grease Fitting Included | Yes |
| Dust Boot Included | Yes |
| Width | 53 MM |
| Type | Straight |
| Mounting Hardware Included | Yes |
| End 2 Thread Diameter | 0.875 IN |
| End 2 Thread Diameter | 22.23 MM |
| Height | 98.20 MM |
| Housing Material | Steel |
| Tube Diameter | 0.875 IN |
| Tube Diameter | 22.23 MM |
| Adjustable | No |
| Greaseable | Yes |
| Weight | 1.78 lb |
| Cone Outside Diameter | 19.70 MM |
| Bearing Material | Steel |
| End 1 Thread Direction | Clockwise (Right) |
| End 2 Thread Direction | Clockwise (Right) |
| Stud Type | Threaded |
| Length - Stud Center to End | 4.449 IN |
| Length - Stud Center to End | 113.00 MM |
| Dust Boot Material | Rubber |
| Tie Rod Material | Steel |
| End 2 Threads Per Inch | 18 |
| End 1 Threads Per Inch | 18 |
| End 1 Thread Diameter | 0.625 IN |
| End 1 Thread Diameter | 15.88 MM |
| Shank Length | 19.70 MM |
| Stud Length | 19.70 MM |
| Grade Type | Standard Replacement |
| Grade | Premium |
| Shank Length | 0.776 IN |
| Stud Length | 0.776 IN |
| Cone Outside Diameter | 0.776 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708998180 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Harmonized Tariff Code (Schedule B) | 8708998175 |
| Country of Origin (Primary) | TR |
| UPC | 00689604290262 |
| VMRS Code | 015004045 |
| UNSPSC | 25174205 |
DELPHI TA5273 Cross References
DELPHI TA5273 Fits Vehicles
- Dodge D350 (1989-1993)
- Dodge D250 (1989-1993)
