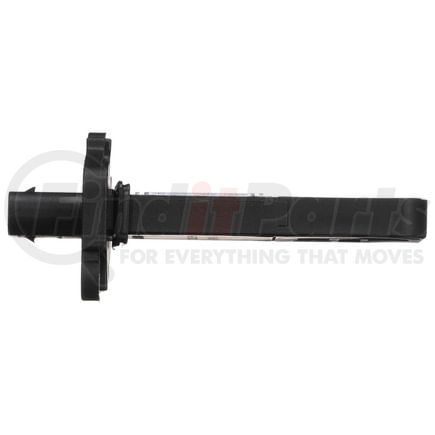

(888) 312-8812 Login SignupDELPHI AF10480 Mass Air Flow Sensor
$14949
Limited availability at this price!
In Stock
Get it by Wednesday, Dec 17
DELPHI AF10480 Part Description
DELPHI AF10480 Specifications
Product Attributes
| Item Grade | Premium |
| Package Contents | Mass Air Flow Sensor - Probe Only |
| Color | Black |
| Housing Included | No |
| Terminal Type | Pin |
| Mounting Hardware Included | No |
| Universal Or Specific Fit | Specific |
| Grade Type | Regular |
| Connector Quantity | 1 |
| Connector Shape | Oval |
| Mounting Hole Quantity | 2 |
| Terminal Quantity | 5 |
| Connector Gender | Female |
| Terminal Gender | Male |
| Wiring Harness Included | No |
| Mounting Type | Bolt-On |
| Mounting Bracket Included | No |
| Sensor Casing Length | 46 MM |
| Sensor Casing Width | 41 MM |
| Voltage | 12.0 2H |
| Gasket Or Seal Included | Yes |
| Bolt Hole Center To Bolt Hole Center | 40.20 MM |
| Mounting Hole Diameter | 0.1 IN |
| Seal Outside Diameter | 39.5 mm |
| Seal Quantity | 1 |
| Sensor Casing Length | 1.8 IN |
| Sensor Casing Width | 1.6 IN |
| Bolt Hole Center To Bolt Hole Center | 1.50 IN |
| Mounting Hole Diameter | 4.5 MM |
| Seal Outside Diameter | 1.5 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 9026802000 |
| Warranty Distance UOM | DH |
| Warranty Distance | 12000 |
| Harmonized Tariff Code (Schedule B) | 9026800000 |
| Warranty Time UOM | MO |
| Warranty Time | 12 |
| Country of Origin (Primary) | CN |
| UPC | 00689604294437 |
| VMRS Code | 045021019 |
| UNSPSC | 41111931 |
DELPHI AF10480 Part Interchanges
| Brand | Part Number |
|---|---|
| Spectra Premium | MA328 |
| Carquest | MQ7400 |
| Hitachi Automotive | MAF0116 |
| BWD | MA1234 |
| Volkswagen | 06J 906 461 D |
| CARDONE Reman | 74-50075 |
| Standard Motor Products | MAS0331 |
| NAPA Reman Computers | XTP450075 |
| N/A | 5S17328, MAS0402, MF21288 |
DELPHI AF10480 Fits Vehicles
- Audi Q3 Quattro (2015-2017)
- Audi Q3 (2015-2017)
- Audi allroad (2013-2016)
- Audi A3 Quattro (2009-2010)
- Audi A6 Quattro (2013-2015)
- Audi A6 (2012-2015)
- Audi Q5 (2011-2017)
- Audi A5 (2010-2014)
- Audi A5 Quattro (2010-2017)
- Audi A3 (2009-2010)
- Audi A4 Quattro (2009-2016)
- Audi A4 (2009-2016)
