(888) 312-8812 Login SignupRANCHO RS55826 RS5000X Suspension Strut
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
RANCHO RS55826 Part Description
Manufacturer
Product Description

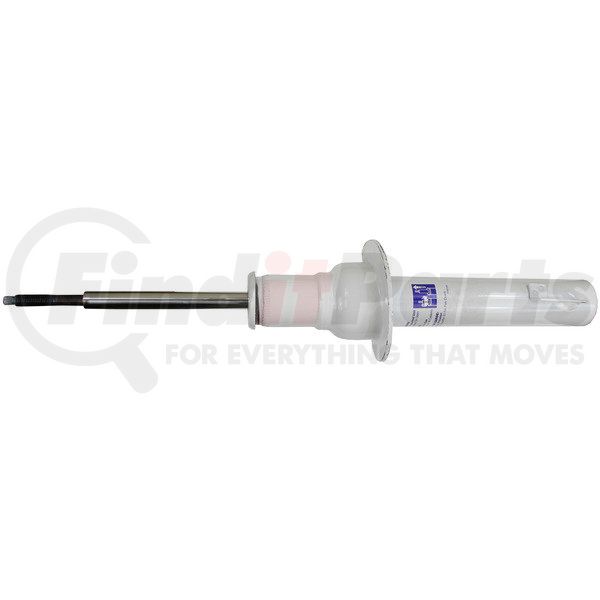

RS5000X Suspension Strut
Features & Benefits
- IMPROVED HANDLING AND PERFORMANCE -- Cross Tuned technology featuring exclusive rebound valving system and advanced compression phase improves overall handling and performance on and off road
- MINIMIZES ROUGH RIDE -- Exclusive Progressive Engagement Valving is custom-tuned for each vehicle to help reduce initial impacts at low speeds and minimizes a rough ride
- STRONG AND DURABLE -- Features a nitro-carburized piston rod to resist scuffs & corrosion, double-welded loops at stress areas, application-specific sintered iron piston for enhanced structural integrity and polyvinyl protective boot
- HANDLES EXTREME TEMPERATURE CHANGES -- Large twin-tube body filled with all-weather fluid allows for cooler operation, increased vehicle control and ability to withstand internal temperatures of -40 to 248degF
- HANDLES EXTREME TEMPERATURE CHANGES -- Large twin-tube body filled with all-weather fluid allows for cooler operation, increased vehicle control and ability to withstand internal temperatures of -40 to 248°F
- SMOOTH PERFORMANCE -- Polyurethane rebound bumper and rubber bushings help absorb ride harshness while the fluon-banded piston enhances responsiveness to changing road conditions for an overall smoother ride
- REDUCES FADE -- Nitrogen gas pressurized to 60 PSI to minimize air-to-oil mixture to reduce damping performance fade and foaming
- MAINTAINS VEHICLE CONTROL -- Compression Control Valve is custom-tuned for each vehicle to regulate fluid transfer to absorb impacts without disc flutter and help maintain shock motion control
- BUILT TO LAST -- Low-friction, self-lubricating seal retains gas and oil for quicker rebound and smoother compression while the application-specific piston delivers heightened control of shock motion due to the expanded piston area
- BUY WITH CONFIDENCE -- Comes with Rancho's Limited Lifetime Warranty
- BUY WITH CONFIDENCE -- Comes with Rancho’s Limited Lifetime Warranty
RANCHO RS55826 Specifications
Product Attributes
| Body Type | B3 |
| Compressed Length | 13.92 IN |
| Travel Length | 6.33 in |
| Grade Type | Performance |
| Extended Length | 20.25 in |
| Gas Charged | Yes |
| Body Length | 13.42 IN |
| Adjustable Damping | No |
| Dust Shield Included | No |
| Finish | Painted |
| Lower Mount Type | Loop Bushing Mount - 5/8" Bushing ID X 1.5/16" Bushing OAL |
| Parts Pack(s) | None |
| Upper Mount Type | Loop Bushing Mount - 5/8" Bushing ID X 1.5/16" Bushing OAL |
| Compressed Length | 353.6 MM |
| Extended Length | 514.4 MM |
| Travel Length | 160.8 MM |
| Body Length | 340.9 MM |
| Lower Mount Type | Loop (Eyelet) Bushing |
| Upper Mount Type | Loop (Eyelet) Bushing |
Additional Information
| Country of Origin (Primary) | US |
| Canadian Harmonizing Tariff Code | 8708801910 |
| Harmonized Tariff Code (Schedule B) | 8708801600 |
| Harmonized Tariff Code (HTS) | 8708801600 |
| MSDS Sheet Number | 01164 |
| UPC | 00039703008617 |
| VMRS Code | 016020000 |
| UNSPSC | 25172007 |
RANCHO RS55826 Cross References
| Brand | Part Number |
|---|---|
| AL-KO Xtreme | 813093 |
| Gabriel | G56807 |
| Jeep | 5135573AC, 5135573AD, 5135573AE, 5135573AH, 5135573AJ, 5135577AC, 5135578AD, 5166820AE, 5166820AF, 5166820AH, 5166820AI, 5175959AA, 5175959AC, 52089709AC, 52090246AL |
| KYB | 341603 |
| MONROE | 71377 |
| Monroe Shocks & Struts | 71377 |
| NAPA Shocks | 71377 |
| Rancho | RS5826 |
| Sensen | 32140117 |
RANCHO RS55826 Fits Vehicles
- Jeep Commander (2006-2010)
- Jeep Grand Cherokee (2005-2010)
