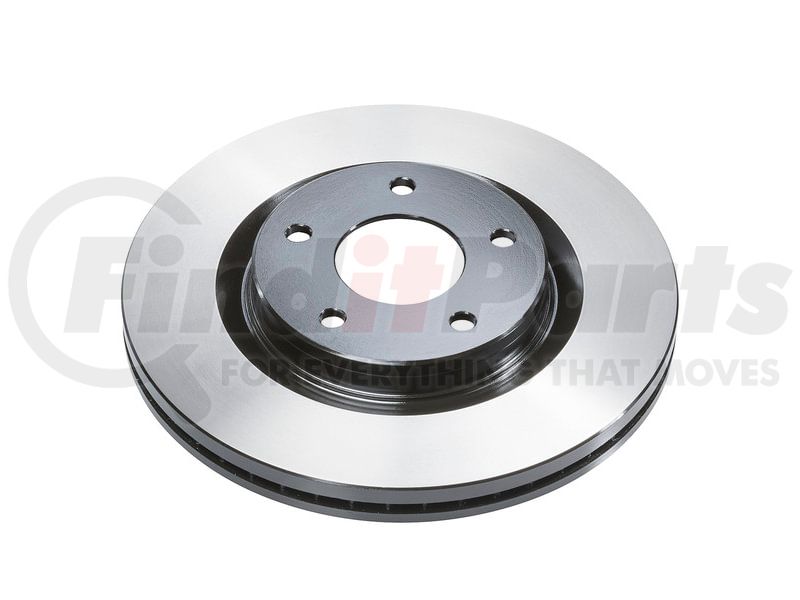

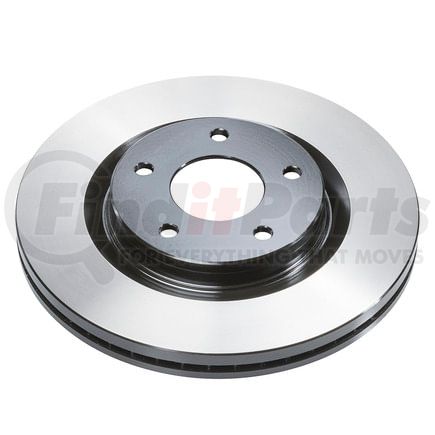

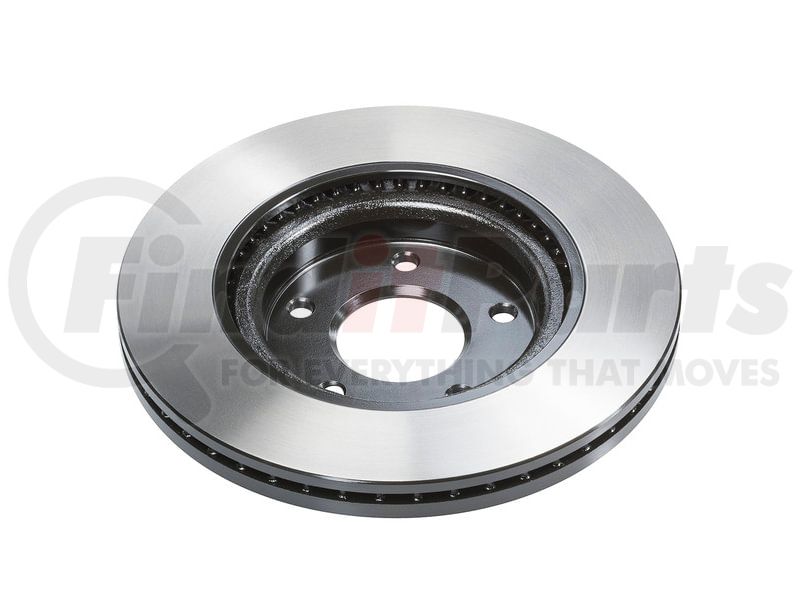

(888) 312-8812 Login SignupWAGNER BD180431E Wagner Brake BD180431E Disc Brake Rotor
Tap to view 2 more
MSRP: $97.94
$6999
Save $27.95
Limited availability at this price!
In Stock
Get as soon as Friday, Sep 25
WAGNER BD180431E Part Description
Manufacturer
Product Description
Disc Brake Rotor
Application Summary
2011-2017 Nissan Juke SV SL S Nismo (Front) (Qualifier: Black E-Coat on non-braking surface to prevent rust and corrosion / Note: 5 Stud Wheel, with 296mm Diameter Rotor); 2017-2019 Nissan Sentra (Front) (Liter: 1.6 & Engine(cc): 1618 & Cylinder: 4 & Block: L & Bore(in): 3.14 & Bore(mm): 79.7 & Stroke(in): 3.19 & Stroke(mm): 81.1 / Qualifier: Black E-Coat on non-braking surface to prevent rust and corrosion / Note: 5 Stud Wheel, with 296mm Diameter Rotor)
Features & Benefits
- ENGINEERED FOR PERFORMANCE -- OE-specific vane design provides effective braking power and heat dissipation while controlling noise, vibration and harshness
- OE-STYLE DESIGN -- Restores like-new braking performance while matching OE fit, form and function
- PREMIUM PROTECTION -- E-Shield(R) protective coating is applied to non-braking surfaces to inhibit corrosion
- RESISTS CORROSION -- Painted edges & hats provide reliable corrosion resistance
- TURNED AND SMOOTH FINISH -- Requires less pad break-in time and aids in proper bedding
- NON-DIRECTIONAL FINISH -- Reduces pad break-in time and promotes proper bedding for consistent stopping power
- EASY INSTALLATION -- Rotors are packaged in a Vapor Corrosion Inhibitor bag, eliminating the need for an oil coating which reduces prep time
- CONSISTENT PERFORMANCE -- Precision ground surface finish delivers reliable performance, noise reduction and heat dissipation
- PROPER BALANCE -- Spin balanced and cut to limit vibration for improving stability and control
- SMOOTH BRAKING -- Application-specific OE vane design and thickness help control noise, vibration and harshness (NVH)
- PERFECT PAIRING -- Pair Wagner premium rotors with premium brake pads for optimal performance
- BALANCED FOR SMOOTH STOPS -- Precision-balanced to minimize pedal pulsation and deliver a smoother ride
- QUALITY MATERIALS -- Proven metallurgy provides structural integrity and heat dispersion for reliable performance
- EASY TO INSTALL -- Simply wash the oil off and bolt on; no machining required
- COMPREHENSIVE COVERAGE -- Available for foreign and domestic nameplates
- PERFECT PAIRING -- Pair Wagner® Standard rotors with Wagner brake pads and calipers (sold separately) for optimal performance
- PERFECT PAIRING -- Pair Wagner(R) Standard rotors with Wagner brake pads and calipers (sold separately) for optimal performance
WAGNER BD180431E Specifications
Product Attributes
| Material | Cast Iron |
| Nominal Thickness | 1.024 IN |
| Disc Finish | Directional |
| Construction | Full Cast |
| Rust Resistant Coating | Yes |
| Outside Diameter | 11.634 IN |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Height | 1.732 in |
| Part Description | Disc Brake Rotor |
| Height | 44.0 MM |
| Stud/Lug Hole Quantity | 5 |
| Outside Diameter | 295.5 MM |
| Overall Height | 44.0 MM |
| Overall Height | 1.732 IN |
| Nominal Thickness | 26.0 MM |
| Bearings Included | No |
| Directional or Non-Directional Brake Surface | Non-Directional |
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.681 IN |
| Center Hole Diameter | 68.1 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 24.0 MM |
| Discard Thickness | 0.945 IN |
| Mounting Bolt Hole Circle Diameter | 114.3 MM |
| Mounting Bolt Hole Circle Diameter | 4.500 IN |
| Mounting Bolt Hole Diameter | 12.8 MM |
| Mounting Bolt Hole Diameter | 0.506 IN |
| Prop 65 Label (Yes/No) | No |
Additional Information
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (Schedule B) | 8708305030 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00008536957744 |
| VMRS Code | 013017001 |
| UNSPSC | 25171715 |
WAGNER BD180431E Cross References
| Brand | Part Number |
|---|---|
| ACDelco | 18A2925A, 18A2925AC |
| AISIN | B6F064U |
| ATE | 426177 |
| Aimco | 90095800 |
| Autospecialty | JBR1538 |
| Bosch | 40011557 |
| Carquest Platinum Painted Rotors | YH317653P |
| Carquest Platinum Plus Coated Rotors | YH317653C |
| Carquest Professional High Carbon Rotors | YH317653HC |
| Carquest Wearever | YH317653 |
| Centric Parts | 120.42108, 121.42108, 12042108, 12142108, 320.42108F |
| Datsun/Nissan | 402061KC1A, 402061KC1B |
| DuraGo | BR900958, BR900958-01, BR900958-B257102 |
| Duralast | 44720 |
| Dynamic Friction Company | 600-67100, 604-67100 |
| NAPA BRAKES | 880864CR, 48880864, 248880864 |
| PowerStop | JBR1538, JBR1538EVC |
| Pro-Series | C08296, PS44720 |
| Promax | 14-31569, 20-31569 |
| Raybestos Brakes | 980864R, 980864FZN, 980864R2 |
| Winhere | 6621267 |
| Worldparts Synergy | WS1231569 |
WAGNER BD180431E Fits Vehicles
- Nissan Sentra (2017-2019)
- Nissan Juke (2011-2017)
