RAYBESTOS 980864R Part Description
Manufacturer
Product Description

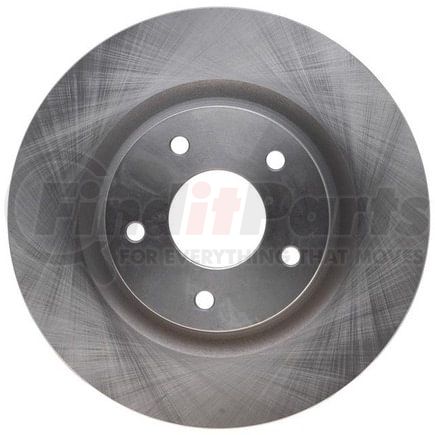

Raybestos R-Line Brake Rotor
Application Summary
2019-2017 Nissan Sentra Front, 2017-2011 Nissan Juke Front
Features & Benefits
- OE Fit, Form, and Function
- Developed from OE samples and made with G3000-qualified material, ensuring OE fit, form and function for dependable braking.
- SAE Standard
- R-Line Rotors meet the SAE standard for tensile strength, providing structural integrity and a maximum service life.
- Low Initial Lateral Runout and Thickness Variation
- R-Line Rotors have a small parameter lateral runout and a thickness variation ensuring less pedal pulsation, less brake noise, and an extended pad life.
- Mill Balanced Edges
- R-Line Rotors are mill balanced and 100 percent validated. This helps minimize the thickness variation on the rotor and leads to minimized vibration and smoother stopping.
RAYBESTOS 980864R Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.68 IN |
| Center Hole Diameter | 68.05 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 0.945 IN |
| Discard Thickness | 24 MM |
| Harmonize Code | 8708.30.5030 |
| Inside Diameter | 7.736 IN |
| Inside Diameter | 196.5 MM |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 4.5 IN |
| Mounting Bolt Hole Circle Diameter | 114.3 MM |
| Mounting Bolt Hole Diameter | 0.495 IN |
| Mounting Bolt Hole Diameter | 12.55 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 1.024 IN |
| Nominal Thickness | 26 MM |
| Outside Diameter | 11.646 IN |
| Outside Diameter | 295.8 MM |
| Overall Height | 1.73 IN |
| Overall Height | 43.95 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00829352839812 |
RAYBESTOS 980864R Cross References
| Brand | Part Number |
|---|---|
| ADVANCE AUTO PARTS | YH317653, YH317653C, YH317653P |
| AUTOPARTSOURCE | 476365 |
| AUTOXTRA | AX900958 |
| AUTOZONE | 44720, 44720DG |
| Autoxtra | AX900958P |
| BENDIX | PRT6105 |
| BRAKEBEST | 980864R, 980864RGS |
| CENTRIC | 120.42108, 121.42108, 126.42108SL, 126.42108SR, 127.42108L, 127.42108R, 128.42108L, 128.42108R, 320.42108 |
| Centric Parts | 120.42108, 121.42108, 126.42108SL, 126.42108SR, 127.42108L, 127.42108R, 128.42108L, 128.42108R, 320.42108 |
| DATSUN/NISSAN | 402061KC1A, 402061KC1B |
| DURA CORP | BR900958 |
| DuraGo | 900958, BR900958, BR90095802 |
| MAGMA PRODUCTS | PMR425116 |
| NAPA BRAKES | TSR9316 |
| NEWTEK AUTOMOTIVE | 31569 |
| Newtek Automotive USA | 31569 |
| Nissan | 402061KC1A, 402061KC1B |
| Omnicraft | QBRR618 |
| POWERSTOP | JBR1538EVC |
| QUALIS | 44720 |
| TRW | DF4964S |
| TopNotch | TN980864GEO |
| UAP | 31569 |
| Ultra Brake | NI-4031 |
| WAGNER BRAKE | BD180431, BD180431E, SB980864 |
| WORLDPAC | 1407-317653, 1427-499340 |
| Winhere | 6621267 |
RAYBESTOS 980864R Fits Vehicles
- Nissan Sentra (2017-2019)
- Nissan Juke (2011-2017)
