(888) 312-8812 Login SignupMOTORAD CH4906 Engine Coolant Water Outlet
Tap to view 6 more
$2249
Limited availability at this price!
In Stock
Get it by Thursday, Jul 16
MOTORAD CH4906 Part Description
Manufacturer
Product Description

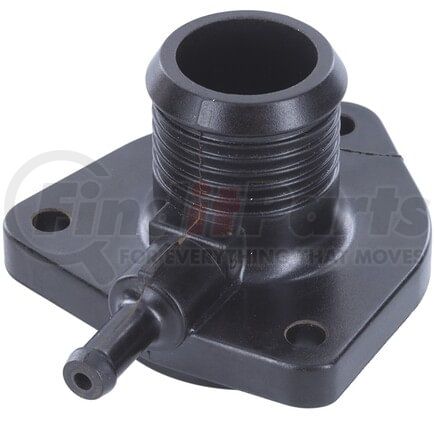

Engine Coolant Water Outlet
Features & Benefits
- Easy, one step fit and installation
- No special tools required
- Meets or exceeds all OEM standards
MOTORAD CH4906 Specifications
Product Attributes
| Outlet Diameter | 1.33 in |
| Bolts Included | No |
| Material | Plástico |
| Color | Negro |
| Gasket Or Seal Included | No |
| Mounting Hole Quantity | 3 |
| Gasket Quantity | 0 |
| Bolt Hole Center To Bolt Hole Center | 2.68 IN |
| Outlet Tube Length | 1.32 IN |
| Bleeder Screw Included | No |
| Inlet Quantity | 1 |
| Outlet Inside Diameter | 0.99 IN |
| Outlet Quantity | 1 |
| Flange Length | 3.06 IN |
| Flange Thickness | 0.39 in |
| Flange Width | 2.68 IN |
| Mounting Hole Diameter | 0.28 IN |
| Sensor Port Count | 0 |
| Bypass Outside Diameter | 0.37 IN |
| Bypass Inside Diameter | 0.13 IN |
| Seal Quantity | 0 |
| Bypass Holes | 1 |
| Grade Type | OEM |
| Bypass Hose Connection Type | Barbed |
| 10800 | 0.77 IN |
| Bypass Quantity | 1 |
| Outlet Hose Connection Type | Barbed |
| Gasket Press | No |
| Gasket Seat | No |
| Outlet Outside Diameter | 1.33 IN |
| Inlet Port Outside Diameter | 2.19 IN |
| Inlet Port Inside Diameter | 1.65 IN |
| Bolt Hole Quantity | 3 |
| Type | Estándar |
| Mounting Hardware Included | No |
| Height | 2.13 IN |
| Universal Or Specific Fit | Specific |
| 10800 | 19.56 MM |
| Outlet Outside Diameter | 33.78 MM |
| Inlet Port Outside Diameter | 55.63 MM |
| Inlet Port Inside Diameter | 41.91 MM |
| Height | 54.10 MM |
| Bolt Hole Center To Bolt Hole Center | 68.07 MM |
| Outlet Tube Length | 33.53 MM |
| Outlet Inside Diameter | 25.15 MM |
| Flange Length | 77.72 MM |
| Flange Thickness | 9.91 MM |
| Flange Width | 68.07 MM |
| Mounting Hole Diameter | 7.11 MM |
| 9814 | 9.40 MM |
| 9815 | 3.30 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8409915085 |
| Harmonized Tariff Code (HTS) | 8409915085 |
| Warranty Time UOM | MO |
| Warranty Time | 12 |
| Country of Origin (Primary) | CN |
| UPC | 00055644682457 |
MOTORAD CH4906 Cross References
MOTORAD CH4906 Fits Vehicles
- Ford Focus (2000-2001)
- Ford Contour (1995-2000)
- Mercury Mystique (1995-1999)
- Mercury Cougar (1999)
- Ford Mystique (1995-1999)
