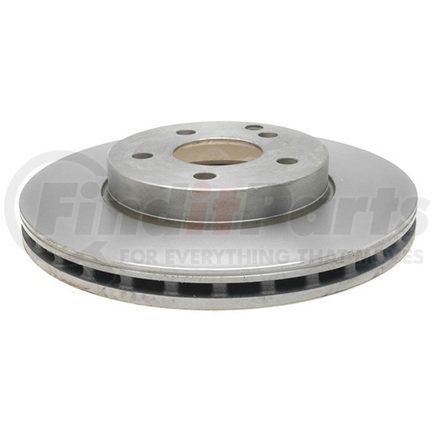

ACDelco 18A1713 - Disc Brake Rotor - 5 Lug Holes, Cast Iron, Plain, Turned Ground, Vented, Front
$8949
In stock
limited availability at this price!
. Learn more
ACDELCO part description
Product Description
Front Brake Rotor
Product Attributes
| Nominal Thickness | 32.41mm (1.276 in.) |
| Center Hole Diameter | 66.04mm (2.6 in.) |
| BOLT CIRCLE | 111.989mm (4.409 in.) |
| Lug Holes Quantity | 5 |
| Lug Holes Quantity | 5 |
| Minimum Thickness | 29.388mm (1.157 in.) |
| Minimum Thickness | 29.388mm (1.157 in.) |
| Quantity | 1 Per Pack |
| Quantity | 1 Per Pack |
| Rotor Construction | 1-Piece |
| Rotor Construction | 1-Piece |
| Rotor Design | Rotors Only |
| Rotor Design | Rotors Only |
| Rotor Diameter | 330mm (12.99 in.) |
| Rotor Diameter | 330mm (12.99 in.) |
| Rotor Finish | Turned Ground |
| Rotor Finish | Turned Ground |
| Rotor Height | 53.34mm (2.1 in.) |
| Rotor Height | 53.34mm (2.1 in.) |
| Rotor Material | Cast Iron |
| Rotor Material | Cast Iron |
| Rotor Style | Plain |
| Rotor Style | Plain |
| Rotor type | Vented |
| Rotor type | Vented |
| Discard Thickness | 1 IN |
| Nominal Thickness | 1.102 IN |
| Height (in) | 2.1 in |
| Pad Contact Surface Width | 2.4 IN |
| Center Bore Diameter (in) | 2.6in |
| Bolt Circle Diameter (in) | 4.4 in |
| Bolt Hole Quantity | 5 |
| Discard Thickness | 25.4 MM |
| Center Hole Diameter | 2.638 IN |
| Height (mm) | 54.5 mm |
| Pad Contact Surface Width | 60 MM |
| Center Bore Diameter (mm) | 67mm |
| Bolt Circle Diameter (mm) | 112 mm |
| Overall Rotor Diameter (mm) | 295.4mm |
| Outside Diameter | 295.5 MM |
| Center Hole Diameter | 67 MM |
| Product Description | ACDelco Gold (Professional) Non-Coated Disc Brake Rotors are a high quality alternative to Original Equipment (OE) parts. ACDelco Gold (Professional) parts are manufactured to meet your expectations for fit, form, and function, making them a smart choice for General Motors vehicles, as well as most makes and models, including special applications. These high-quality parts are backed by General Motors. Some ACDelco Gold parts may have formerly appeared as ACDelco Professional. ⚠<b> WARNING:</b> Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Material | Cast Iron |
| Construction | Full Cast |
| Disc Finish | Ground |
| Features & Benefits - Bullet 3 | Manufactured to meet specifications for fit, form, and function for General Motors vehicles as well as most makes and models |
| Programming Required | No |
| Slotted | No |
| Features & Benefits - Bullet 2 | Premium aftermarket replacement part |
| Grade Type | Regular |
| Surface Type | Smooth |
| Features & Benefits - Bullet 1 | Some ACDelco Gold parts may have formerly appeared as ACDelco Professional |
| Hat Finish | Turned |
| Solid Or Vented Type Rotor | Vented |
| Rust Resistant Coating | Yes |
| Mounting Bolt Hole Circle Diameter | 4.409 IN |
| Mounting Bolt Hole Circle Diameter | 112 MM |
| Mounting Bolt Hole Diameter | 4.409 IN |
| Mounting Bolt Hole Diameter | 112 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 28 MM |
| Outside Diameter | 11.634 IN |
| Overall Height | 2.146 IN |
| Overall Height | 54.5 MM |
| Stud/Lug Hole Quantity | 5 |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| ABS Tone Ring Included | No |
Additional Information
| Warranty Special | 24 Months/Unlimited Miles Limited Warranty (Parts Only). Please see ACDelco.com for more details|36 Months/60,000 Kilometers Limited Warranty (Parts Only). Please see ACDelcocanada.com for more details |
| Harmonized Tariff Code (HTS) | 8708305030 |
| Country of Origin 2 | CN |
| Country of Origin (Primary) | IT |
| Warranty Special UOM | TX |
| UPC | 00707773190241 |
Fits Vehicles
- Mercedes-Benz E500 (2003-2006)
- Mercedes-Benz E350 (2006-2009)
- Mercedes-Benz E320 (2003-2009)
A true OEM auto parts brand for GM and non-GM vehicles, ACDelco® offers a wide portfolio of parts designed to keep vehicles on the road longer. These parts work precisely and fit perfectly because they are designed, engineered, tested, and backed by General Motors. But ACDelco also carries aftermarket components that go through the same 18-step quality approval process as the OE parts. Whether customers choose OE or aftermarket, they’d get the same reliable performance, precise engineering, and superior reliability for years to come. ACDelco’s expansive product portfolio includes alternators, filters, batteries, brakes, belts and hoses, oil and fluids, and suspension parts. These products are made to meet GM and non-GM vehicles’ ever-evolving powertrain, collision, maintenance, and repair needs.
