CENTRIC 320.67080 Part Description
Manufacturer
Product Description

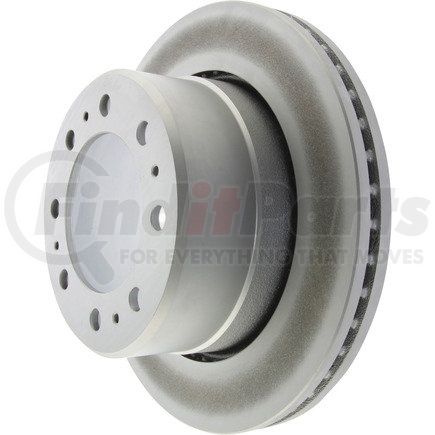

Centric GCX Rotor with Partial Coating
Features & Benefits
- RS200 Coating our exclusive corrosion resistant coating for longer life and good looks; Iron FormulationEnhanced iron and high carbon metallurgies means the right rotor for your car; Operational Efficiency Full coverage with 80% fewer SKUs
- For the best corrosion resistance
- RS200™ Zinc-Aluminum Rich Coating
- Optimal Surface Finish
- For consistent and confident braking from the first stop
- Carbon Enhanved Advanced Metallurgy
- For optimal heat transfer and structural strength
- OE Vane Design and Plate Thickness
- For heat capacity and strength
- Low Initial Lateral Run-Out
- For smooth vibration free stopping
- Precision Balance
- For vibration free performance
CENTRIC 320.67080 Specifications
Product Attributes
| Max Pb Drum Dia [cntrc] In | 8.157 |
| Weight [cntrc] Kgs | 17.360 |
| Max Pb Drum Dia [cntrc] Mm | 207.200 |
| Weight [cntrc] Lbs | 38.250 |
| Hat Id [cntrc] In | 8.098 |
| Hat Id [cntrc] Mm | 205.700 |
| Product Grade [cntrc] | Premium |
| OEM Vane Count [cntrc] | 47 |
| Misc Holes [cntrc] | 4 |
| Disc Mounting [cntrc] | Floating / DIH |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Vane Style [cntrc] | Straight |
| Discard Thickness | 1.276 IN |
| Discard Thickness | 32.400 MM |
| Nominal Thickness | 34.000 MM |
| Nominal Thickness | 1.339 IN |
| Disc Finish | Partially Coated |
| Hat Finish | Coated |
| Overall Height | 125.000 MM |
| Overall Height | 4.921 IN |
| Outside Diameter | 14.094 IN |
| Outside Diameter | 358.000 MM |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Nominal Drum Diameter | 205.000 MM |
| Nominal Drum Diameter | 8.071 IN |
| Bearings Included | No |
| Center Hole Diameter | 4.843 IN |
| Center Hole Diameter | 123.000 MM |
| Mounting Bolt Hole Circle Diameter | 165.000 MM |
| Mounting Bolt Hole Circle Diameter | 6.496 IN |
| Stud/Lug Hole Quantity | 8 |
| Stud/Lug Hole Diameter | 16.800 MM |
| Stud/Lug Hole Diameter | 0.661 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 00889590302400 |
