(888) 312-8812 Login SignupRAYBESTOS 780733 Raybestos Specialty - Truck Brake Rotor
$21099
Limited availability at this price!
In Stock
Get it by Tuesday, Aug 18
RAYBESTOS 780733 Part Description
Manufacturer
Product Description

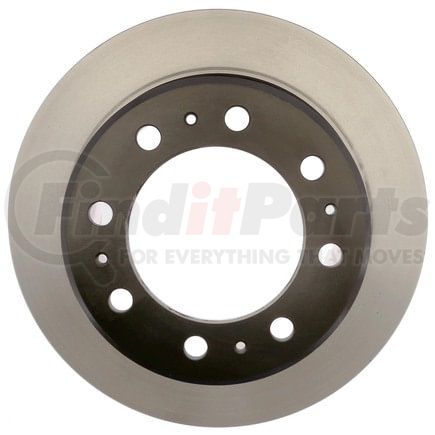

Raybestos Specialty - Truck Brake Rotor
Application Summary
2023-2011 Ram 2500 Rear, 2023-2011 Ram 3500 Rear, 2010-2009 Dodge Ram 2500 Rear, 2010-2009 Dodge Ram 3500 Rear, 2010-2009 Dodge Ram 4000 Rear, 2015-2011 Ram 4000 Rear
Features & Benefits
- OE Fit, Form, and Function
- Our vehicle-specific design matches OE fit, form and function, providing ultimate strength and performance
- Cooling Vanes
- We dedicate time to match the cooling vanes on our Specialty rotors to OE designs, ensuring: Optimal cooling Reduced fade Less noise Increased pad life
- Coating
- All Specialty rotors are protected against the elements. All new Specialty rotors come fully coated with Grey Fusion 4.0® rated at 300 hrs. salt spray or a Black Fusion painted hat and edge for rust protection.
- All Specialty rotors are protected against the elements. All new Specialty rotors come fully coated with Grey Fusion 4.0(R) rated at 300 hrs. salt spray or a Black Fusion painted hat and edge for rust protection.
- SAE Standard for Tensile Strength
- Our rotors follow SAE standards for tensile strength, hardness, and iron grade, providing structural integrity and maximum service life
- Turned Finish
- A turned finish provides an excellent surface for the pads to engage with to ensure a smooth and effective stop right out of the box
RAYBESTOS 780733 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 4.84 IN |
| Center Hole Diameter | 122.95 MM |
| Conventional Or Drum-In-Hat Type Rotor | Drum-In-Hat |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 1.276 IN |
| Discard Thickness | 32.4 MM |
| Harmonize Code | 8708.30.5030 |
| Inside Diameter | 9.774 IN |
| Inside Diameter | 248.25 MM |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 6.5 IN |
| Mounting Bolt Hole Circle Diameter | 165.1 MM |
| Mounting Bolt Hole Diameter | 0.657 IN |
| Mounting Bolt Hole Diameter | 16.7 MM |
| Mounting Bolt Hole Quantity | 8 |
| Nominal Thickness | 1.343 IN |
| Nominal Thickness | 34.1 MM |
| Outside Diameter | 14.098 IN |
| Outside Diameter | 358.1 MM |
| Overall Height | 4.91 IN |
| Overall Height | 124.7 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 8 |
| Surface Type | Smooth |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00829352704202 |
RAYBESTOS 780733 Cross References
| Brand | Part Number |
|---|---|
| DYN-6922, 829352704202 | |
| ADVANCE AUTO PARTS | 274916, G09603SD, YH274916, YH274916C, YH274916P, YH527287P |
| AUTOXTRA | AX900698, AX901450 |
| AUTOZONE | 72184, 72184DG |
| Advance Auto Parts | YH527287AP |
| AutoZone | 72184SD |
| Autoxtra | AX901450P |
| BENDIX | SDR5910 |
| BOSCH | 16011496 |
| BRAKEBEST | 16011496, 780733, 780733FZN, 780733R, 780733RGS |
| Brembo | 09.D273.11 |
| CENTRIC | 120.67073, 120.67080, 120.67080CRY, 121.67073, 121.67080, 125.67080, 126.67080CSL, 126.67080CSR, 126.67080SL, 126.67080SR, 127.67080CL, 127.67080CR, 127.67080L, 127.67080R, 128.67080CL, 128.67080CR, 128.67080L, 128.67080R, 320.67080, 320.67080F, 120.6708 |
| CHRYSLER | 52122184AA, 68188899AA, 68188899AA001, 68188899AB, 68414883AB, 68414884AA, 68414884AB |
| Centric Parts | 120.67073, 120.67080, 120.67080CRY, 121.67073, 121.67080, 126.67080CSL, 126.67080CSR, 126.67080SL, 126.67080SR, 127.67080CL, 127.67080CR, 127.67080L, 127.67080R, 128.67080CL, 128.67080CR, 128.67080L, 128.67080R, 320.67080, 320.67080F, 125.67080 |
| DURA CORP | BR53056, BR900698, BR901450 |
| DuraGo | 900698, BR900698, BR901450, BR901450-02 |
| Dynamic Friction Company | 600-40118 |
| Eurorotor | 53166 |
| MAGMA PRODUCTS | PSR145192 |
| MONROE BRAKES | BD180310 |
| NEOTEK | 1070105GF |
| NEWTEK AUTOMOTIVE | 53056, R1450 |
| Newtek Automotive USA | 53056, R1450 |
| POWERSTOP | AR83067EVC, AR8374EVC |
| PROMAX | 14-53056 |
| Parts Master | 901450 |
| Qualis | 43169, 43198 |
| Ram | 68414884AB |
| TopNotch | TN780733GEO |
| UAP | 2053056, 53056 |
| Ultra Brake | 53166 |
| WABCO | PS180310 |
| WABCO - Archived | PS180310 |
| WAGNER | BD180310E |
| WAGNER BRAKE | BD180310 |
| WINHERE | 6621173 |
| WORLDPAC | 1407-527287, 1427-732025, 1427-732845 |
| Wagner Brake | BD180310E |
RAYBESTOS 780733 Fits Vehicles
- Ram 4000 (2011-2015)
- Dodge Ram 4000 (2009-2010)
- Ram 3500 (2011-2024)
- Ram 2500 (2010-2024)
- Dodge Ram 2500 (2009-2010)
- Dodge Ram 3500 (2009-2010)
