CENTRIC 320.34080 - GCX Rotor with Partial Coating
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
CENTRIC part description
California Proposition 65 Warning
California Proposition 65 Warning
WARNING: This product can expose you to chemical which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov. (Read more)
Product Description

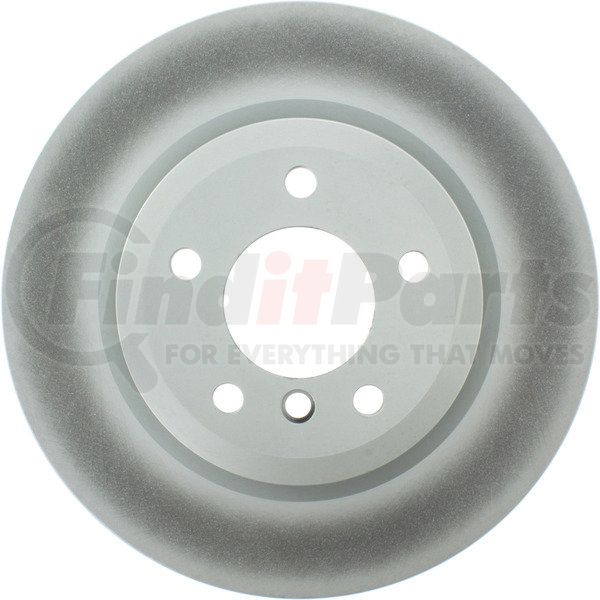

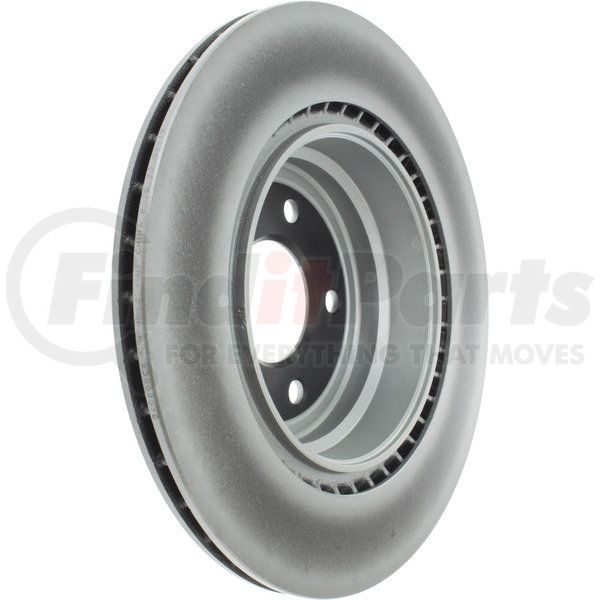

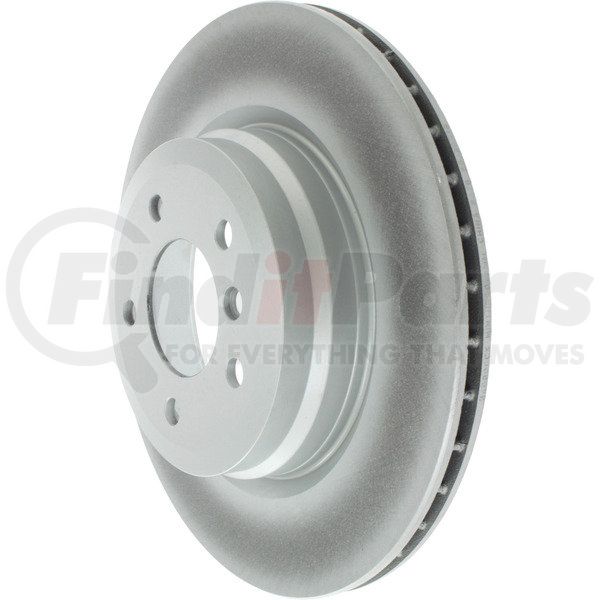

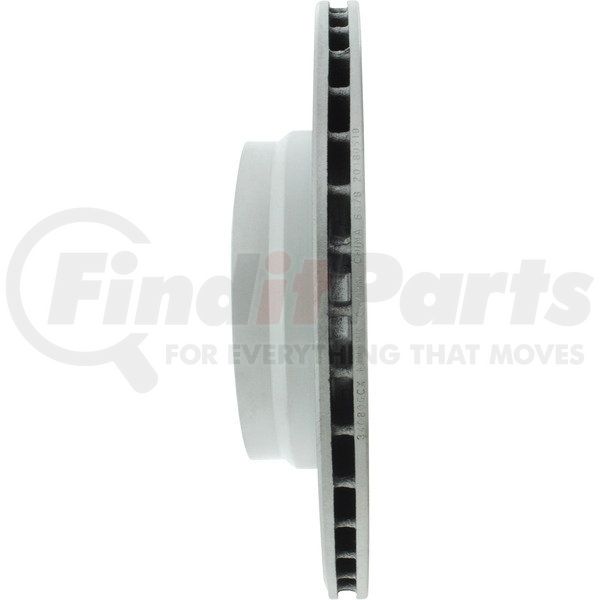

GCX Rotor with Partial Coating
Application Summary
2006 - 2006 BMW 330i, 2006 - 2006 BMW 330xi, 2009 - 2011 BMW 335d, 2007 - 2013 BMW 335i, 2009 - 2013 BMW 335i xDrive, 2011 - 2013 BMW 335is, 2007 - 2008 BMW 335xi, 2010 - 2015 BMW X1
Features & Benefits
- RS200 Coating our exclusive corrosion resistant coating for longer life and good looks; Iron Formulation Enhanced iron and high carbon metallurgies means the right rotor for your car; Operational Efficiency Full coverage with 80% fewer SKUs
C-Tek; Centric; Standard brake rotor; brake rotor; break rotor; rotors; rotor
Product Attributes
| Discard Thickness | 0.803 IN |
| Discard Thickness | 20.40 MM |
| Nominal Thickness | 0.862 IN |
| Nominal Thickness | 21.90 MM |
| Disc Finish | Partially Coated |
| Hat Finish | Coated |
| Outside Diameter | 13.228 IN |
| Outside Diameter | 336.00 MM |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Nominal Drum Diameter | 7.283 IN |
| Nominal Drum Diameter | 185.00 MM |
| Center Hole Diameter | 2.953 IN |
| Center Hole Diameter | 75.00 MM |
| Mounting Bolt Hole Circle Diameter | 4.724 IN |
| Mounting Bolt Hole Circle Diameter | 120.00 MM |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 0.583 IN |
| Stud/Lug Hole Diameter | 14.80 MM |
| Disc Mounting [cntrc] | Floating / DIH |
| Height | 67.20 |
| Hub Hole/Whl Reg [cntrc] | 75 MM |
| Misc Holes [cntrc] | 1 |
| Solid / Vented | Straight |
| Vane Style [cntrc] | Straight |
| Weight [cntrc] | 8.270 KG |
| Weight [cntrc] | 18.200 LB |
| Disc Mounting | Floating / DIH |
| Hub Hole Diameter | 75 MM |
| Misc Holes | 1 |
| Vane Style | Straight |
| Weight | 8.270 KG |
| Weight | 18.200 LB |
Additional Information
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| UPC | 00889590300734 |
Part Interchanges
CENTRIC 320.34080 Cross Reference
We have 3 alternatives for the 320.34080 by CENTRIC:
