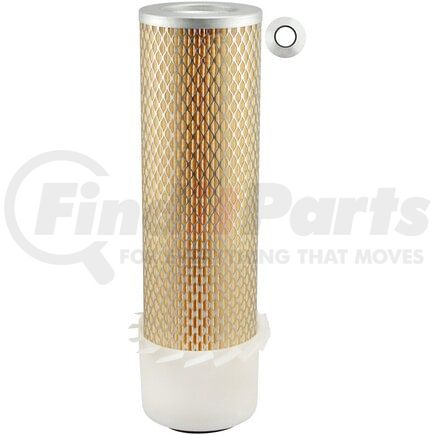

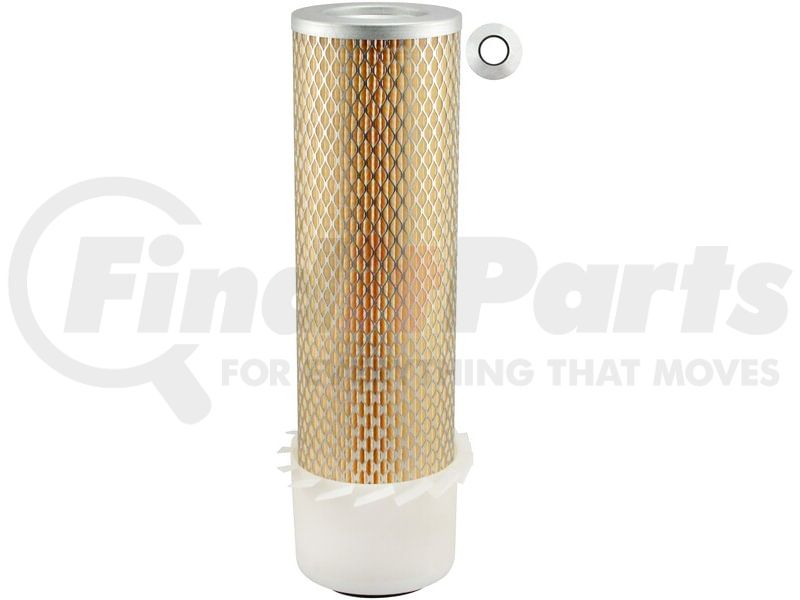

(888) 312-8812 Login SignupBALDWIN PA2344-FN AIR FILTER
$4799
Limited availability at this price!
In Stock
Get it by Monday, Jul 27
BALDWIN PA2344-FN Part Description
Manufacturer
Product Description
Outer Air Element with Fins
Application Summary
Case, Ford, Gehl, JD, New Holland Equip
Outer Air Element with Fins
BALDWIN PA2344-FN Specifications
Product Attributes
| Inside Diameter 1 (mm) | 19.8 |
| Use With | {PA2602} |
| Replaces | Case R39392; Gehl 263638; John Deere MG221406; New Holland 221406 |
| Remark 2 | & |
| Remark 1 | Fins |
| Related to | {LL2344-FN} (Long-Life Media Version) |
| Outside Diameter 2 (mm) | 130.2 |
| Outside Diameter 2 | 5.125 |
| Outside Diameter 1 (mm) | 104 |
| Inside Diameter 2 (mm) | 62.7 |
| Inside Diameter 2 | 2.46875 |
| Attached Gasket | [1] Attached |
| Inside Diameter 1 | 25/32 |
| Height (mm) | 363.5 |
| Height | 14 5/16 |
| Furnished Gasket | [1] Included |
| Fits | Case, Ford, Gehl, John Deere, New Holland, Thomas Equipment; Ingersoll-Rand Compressors |
| Outside Diameter 1 | 4 3/32 |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8421310000 |
| UPC | 00791440017849 |
BALDWIN PA2344-FN Cross References
| Brand | Part Number |
|---|---|
| BALPA2344-FN, BLDPA2344FN | |
| ACDELCO | A614C |
| ADVANCE MACHINE CO. | 478720, 478710 |
| AIR REFINER | ARM120281 |
| ALLIS-CHALMERS | 71014652, 1014652 |
| AMERICAN PARTS | 93489, 1169 |
| ATHEY | P85149 |
| BALDWIN FILTERS | PA2344FN, LL2344FN |
| BIG A FILTER | 93489, 1169 |
| BOWES | LAF281 |
| BUDA | 71014652, 1014652 |
| CANADIAN FILTER CO. | CFM644F |
| CARQUEST | 87489, 93727 |
| CASE | R39392, S236468, S113979 |
| CATERPILLAR | 9Y6846, 3I0395, 3I0823, 3I0943 |
| CHAMPION LABORATORIES | LAF281 |
| COOPERS | AEK2046 |
| DAEWOO | D470244, D460123 |
| DONALDSON | SMP181072, P181072, P152656, P151776, P148967, P120281, FHG052617, FHG052593, FHG052569, FHG052562, FHG052561, FHG052560, FHG052559, FHG052558, XLP182072, P182072 |
| DROTT | 5512140 |
| EATON | 5300504 |
| FIAT | 71014652 |
| FLEETGUARD | AH19062, AH19061, AF1823K |
| FLEETRITE | AHR819062, AHR819061, AFR81823K |
| FORD MOTOR | 197362, 9809915, 221688, 221407, 221406 |
| FRAM | CAK1531, CAK8200S |
| GEHL | 263638, 92397 |
| GENERAC | 81293 |
| GM GENERAL MOTORS | 8994564 |
| GPC | FC418K |
| GRAINGER | 2NUY3, 4ZRP7 |
| GREYFRIARS | 1493AF |
| GROVE | 9304100091 |
| GUARDIAN FILTER CO. | G120281 |
| HASTINGS | AF588 |
| HEAVY DUTY AIR | HDA0281 |
| INGERSOLL RAND | 35291509, 12403, 39154703 |
| JOHN DEERE | MG221406 |
| JURA (HIFI) | SA11773K |
| KOEHRING | 8273234 |
| KRALINATOR | LA644F, LA644 |
| LUBER-FINER | LAF281 |
| MASSEY FERGUSON | TRA8273234 |
| MOTORCRAFT | FA816 |
| MUSTANG MANUFACTURING | 42034599 |
| NAPA GOLD | 2489 |
| NELSON | 70617N, 70250N, 120281 |
| NELSON-WINSLOW | 75542N, 120281 |
| NEW HOLLAND | 221406, 221688, 221407, 197362 |
| NSN NATIONAL STOCK NUMBER | 2940011033268 |
| ONAN | 1401851, 1401841 |
| OWATONNA | 42034599 |
| PERRY | PAK827 |
| PREMIUM GUARD | HA40548 |
| PROMATCH | 9Y6846 |
| PUROLATOR | AF2973, A62973 |
| QUAKER STATE | QSAK1531 |
| RAYGO | 221688A |
| RYCO | HDA5426 |
| SAKURA | AS9231S, AS9231 |
| SF-FILTER / SCHUPP | SL6224 |
| SURE FILTER TECHNOLOGY | SFA1072PF |
| TECHNICAL FILTRATION | BSA1823 |
| THOMAS EQUIPMENT LTD. | 31787 |
| TRACTOMOTIVE | 71014652, 1014652 |
| VIRGIS FILTER | CH0511467 |
| WIX | 542489, 42489 |
| WIX FILTERS | WIX FILTERS, 42489 |
| WOODGATE | WGA478K |
| YALE | 5300504 |
BALDWIN PA2344-FN Customer Reviews
No reviews yet
Be the first to review this product!
BALDWIN PA2344-FN Manufacturer Information
Baldwin® is a world-renowned leader in the engine mobile filtration. A brand of Parker Engine Mobile Aftermarket Division (E.M.A.M.), Baldwin Filters provides high-quality filtration products and services for engines and mobile equipment. Since 1936, J.A. Baldwin, the founder of Baldwin Filtration, has recognized the importance of a highly efficient mobile filtration system. It is what inspired him to design an improved lube filter and set off its production in Wisconsin. Currently, Baldwin offers outstanding product quality, a vast distribution network, and one of the industry's most comprehensive product lines. Baldwin's broad range of filtration products and technologies provides customers with a one-stop source for all their engine and mobile filtration needs.
