(888) 312-8812 Login SignupBALDWIN BD324 Engine Oil Filter - Dual-Flow Lube Spin-On used for Various Applications
MSRP: $193.13
$7099
Save $122.14
Limited availability at this price!
In Stock
Get it by Friday, Jul 24
BALDWIN BD324 Part Description
Manufacturer
Product Description
Dual-Flow Lube Spin-on
Application Summary
Agco, Case, Fiat-Allis, Grove, Equip
Features & Benefits
- Replacement coverage includes Case J919562 applications
- 2.25 thread size aligns with the specified engine mounting bases
- Dual-flow configuration separates the full-flow and bypass oil circuits
- Internal flow routing supports staged filtration performance
Dual-Flow Lube Spin-on

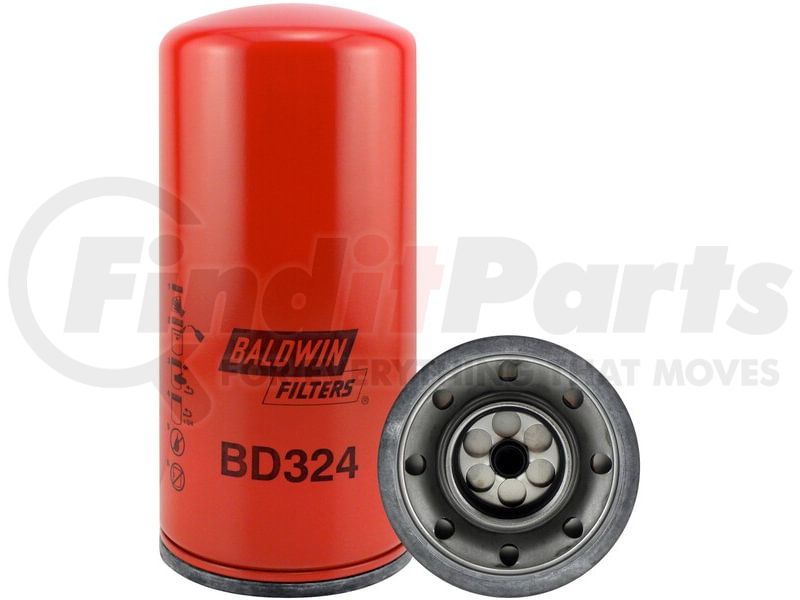

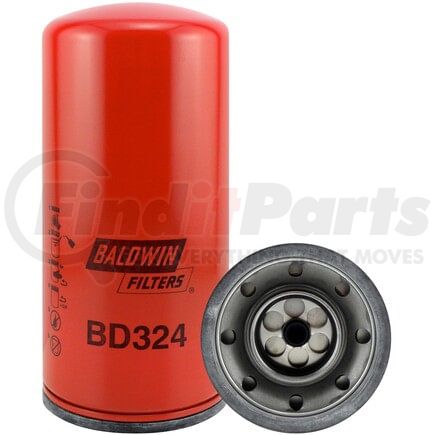

Baldwin Engine Oil Filter
The Baldwin Engine Oil Filter is a spin-on filter used in applications that require both full-flow and bypass filtration. Replacing Case J919562 and built with a 2.25 thread size, this oil filter installs into designated mounting bases without modification. Its dual-flow configuration channels oil through separate filtration paths within the housing. Equipment operating under changing load conditions benefits from staged filtration during continuous engine cycles. The Baldwin BD324 fits service intervals where dual-flow oil filtration is specified.
BALDWIN BD324 Specifications
Product Attributes
| Attached Gasket | [1] Attached |
| Fits | Agco, Case, Fiat-Allis, Grove, Ingersoll-Rand, Komatsu, Link-Belt Equipment |
| Height | 9.625 |
| Height (mm) | 244.5 |
| Outside Diameter 1 | 4.65625 |
| Outside Diameter 1 (mm) | 118.3 |
| Per Inch | 12 |
| Related to | {BD103} (Long Version) |
| Replaces | Case J919562 |
| Thread | 2.25 |
| Integral Gasket | {G293-B} |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8421230000 |
| UPC | 00791440003859 |
BALDWIN BD324 Cross References
| Brand | Part Number |
|---|---|
| LFP2265, BALBD324, BLDBD324 | |
| ACDELCO | PF2151 |
| AGCO | 72513286 |
| AMERICAN PARTS | 92741 |
| BALDWIN FILTERS | BD324 |
| BIG A FILTER | 92741 |
| CARQUEST | 85741 |
| CASE | J919562, 84475543, 87349593, 84301243, 84229397 |
| CUMMINS | 3973686, 3919562 |
| DONALDSON | P553548, P551258, LFP553548 |
| FLEETGUARD | LF9548, LF3548 |
| FLEETRITE | LFR83548 |
| FRAM | HPH6349AFP |
| FURUKAWA | 1241160H1 |
| GRAINGER | 2KZE4 |
| HASTINGS | LF278 |
| IHC INTERNATIONAL HARVESTER | 1295155H1 |
| JURA (HIFI) | SO3548 |
| KOMATSU | CULF3548, 1295155H1 |
| KRALINATOR | D301 |
| LUBER-FINER | LFP2265, L4851 |
| MACK | 5839LF3548 |
| MANN+HUMMEL | WP12308 |
| NAPA GOLD | 1741XD, 1741 |
| NEW HOLLAND | 87349593, 86990980, 84475543, 84301243, 84229397 |
| PUROLATOR | L54851, L45851 |
| SAKURA | C57390, C7927 |
| SF-FILTER / SCHUPP | SP4515 |
| SURE FILTER TECHNOLOGY | SFO3548, SFO9548 |
| WIX | 51741XD, 51741 |
| WIX FILTERS | WIX FILTERS, 51741 |
| WOODGATE | WGL3548 |
BALDWIN BD324 Fits Vehicles
- Volvo WX (2004)
- Volvo VHD (2004-2005)
- Kenworth T400 (2010-2015)
- Autocar LLC. Xpeditor WXR (2003-2006)
- Kenworth W900 (2001, 2003-2004)
- Autocar LLC. Xpeditor (2009-2017)
- Autocar LLC. Xpeditor WXLL (2003-2009)
- Kenworth T370 (2009-2010, 2014)
- Kenworth T800 (2000-2004)
- Kenworth T600A (2001)
- Kenworth K300 (1999)
- Sterling Truck AT9500 (2001)
- Sterling Truck A9500 (2002-2003)
- Blue Bird Commercial Bus (2003-2004, 2006-2007)
- Blue Bird SHL Commercial (2002, 2004)
- Sterling Truck SC7000 Cargo (2001)
BALDWIN BD324 Customer Reviews
No reviews yet
Be the first to review this product!
BALDWIN BD324 Manufacturer Information
Baldwin® is a world-renowned leader in the engine mobile filtration. A brand of Parker Engine Mobile Aftermarket Division (E.M.A.M.), Baldwin Filters provides high-quality filtration products and services for engines and mobile equipment. Since 1936, J.A. Baldwin, the founder of Baldwin Filtration, has recognized the importance of a highly efficient mobile filtration system. It is what inspired him to design an improved lube filter and set off its production in Wisconsin. Currently, Baldwin offers outstanding product quality, a vast distribution network, and one of the industry's most comprehensive product lines. Baldwin's broad range of filtration products and technologies provides customers with a one-stop source for all their engine and mobile filtration needs.
