BALDWIN B196 Engine Oil Filter - Full-Flow Lube Spin-On used for Cummins Engines

★★★★★ (0)

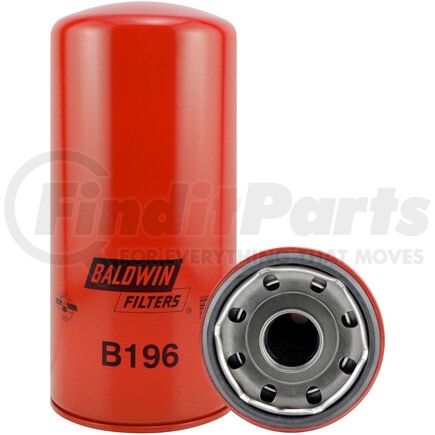

B196 by BALDWIN - Engine Oil Filter - Full-Flow Lube Spin-On used for Cummins Engines
BALDWIN

MSRP: $88.88

$32.99

Save $55.89

Limited availability at this price!

In Stock

Get it by Monday, Jul 13
No Hassle Return Policy Details
Free Economy shipping on orders over $499 details

BALDWIN B196 Part Description

Manufacturer

BALDWIN

Product Description

Full-Flow Lube Spin-on

Application Summary

Cummins Engines

Features & Benefits

  • Thick outer casing provides a solid installation presence
  • Smooth enamel finish enhances underhood visual appeal
  • Broad sealing gasket delivers consistent surface contact
  • Rounded body shape allows a steady grip during replacement
  • Bold printed graphics remain visible after installation

Full-Flow Lube Spin-on

Baldwin Lube Spin-On Filter

The Baldwin Lube Spin-On Filter is used in Cummins engines to filter oil before it circulates through internal passages. Pressurized lubricant enters the filter housing and moves through internal filtration layers that retain suspended contaminants. This model features a 1.5 thread, allowing it to secure onto compatible mounting studs. It can be used with the OB1368 base in designated configurations, providing flexibility within approved setups. Proper oil filtration supports smooth mechanical movement under continuous operation. The Baldwin B196 fits lubrication systems designed for this thread and base compatibility.

BALDWIN B196 Specifications

Product Attributes

Thread 1.5
Notes Can be used with {OB1368} base.
Integral Gasket [1] Included
Replaces Fleetguard LF670SC
Related to {B96}, {B96-MPG} (Long Versions)
Per Inch 12
Outside Diameter 1 (mm) 118.3
Outside Diameter 1 4.65625
Fits Cummins Engines
Height 9.9375
Height (mm) 252.4
Contains Integral Post Seal

Additional Information

Country of Origin (Primary) US
Harmonized Tariff Code (Schedule B) 8421230000
UPC 00791440002494

BALDWIN B196 Cross References

BrandPart Number
BALB196, BLDB196
ABC BUS631301360
ACDELCOPF980, PF899, PF893, PF670
ACTFCO004
AG-CHEM EQUIPMENT604208, 27695
AIR MAZECCSL1003, AML670
AIR REFINERPL670SC, PL670
ALLIS-CHALMERS70697634, 43966456, 4396645
AMERICAN PARTS92870, 92671, 92669, 2155, 2020, 2005
AMSOILSDF72
AP FILTERSAP3496
AP LOCKHEEDLK3496, AP3496A, AP3496
ASAHIKO1542
ATLAS COPCO2900535000
ATSAATS3375
BALDWIN FILTERSB196
BIG A FILTER92970, 92870, 92671, 92669
BOMAG31701670
BOWESLFP670
BUDA70697634, 43966456, 4396645
CARQUEST85970MP, 85970, 85870, 85671, 85669, 84174
CASE12187
CATERPILLAR9Y4465, 9Y4464, 3I1216, 3I1202, 3I1201
CHAMPION24355
CHAMPION LABORATORIESPH670SC, LFP670SC, LFP670
CHAMPION SPARK PLUGHO511, HO510
CLARK EQUIPMENTM0961172, 961711
CLARK MATERIAL HANDLING CO.961172
COACH GUARDT081073, T081062
COLES9779663, 8779663
COMPAIRC160121044
COOPERSLSF5162, AZL135, AXL135
CROSLAND9350
CUMMINSC3313279, AR12990, 961172, 3889310, 3313287, 3313280, 3313279, 3310445, 3302026, 299670, 298670
CYCLONEPM519, PMA519
DAFC3313279
DELUXEWD399SC, WD399, 399
DEMAG988687
DONALDSONP779173, P779144, P551230, P550671, P550670, P502081, P172554, P166451, P166174, P166173, LFP551670, LFP550671, LFP550670, LFP170670
ERFC299670, 1356338, 135633
EUCLID4084261, 4054552
FAUN FRISCH4799645, 4197896, 4134896
FIAAMFT5098
FIAT76191168, 74396656, 74396645, 70697634, 70463222, 700703331, 4396645, 1930741
FILTER CONTROL LTD.FCL7443, FCL7282, FCL7181
FILTERMART3A11646, 3A11539
FLEETGUARDLF670SC, LF747, LF670, LF3333
FLEETRITENL307, LFR8747, LFR8670SC, LFR8670
FLO-LINEPL670SC, PL670
FLUXFILTERL3575, L3442
FLXIBLE97607800151
FODENY02942403, Y02926604, Y02924203
FORD MOTORV31133, SFD012187, E4HZ6731C, E4HZ6731B, E4HZ6731A, 77MF6714AA, 789F6714AA, 789F6144AA, 785F6714AA, 31133, 1584209, 1582092
FRAMPH3612A, PH3442, PH3375, PH3612
FRAM EUROPE (SOGEFI)PH5778
FURUKAWA1212622H1
GFFOFS4012
GLOBAL FILTERS20096, 20095
GM GENERAL MOTORS9059909, 5266844, 25010450, 25010449, 25010043, 25010042, 25011398
GONHERGP670SCL, GP53M, GP53
GOULDP519
GRAINGER2KYJ2
GREYFRIARS960S
GROVE9414100482
GUARDIAN FILTER CO.G051870
GUD FILTERSZ236, Z208, Z183
HASTINGSLF438
HASTINGS OLD NUMBERP438
HEAVY DUTY AIRA15004
HESSTON700703331
HIGHFILTH11816
HITACHI76191168, 40859131, 4085913
HOUGH1212622H1
IHC INTERNATIONAL HARVESTER1239943H1, 1212622H1
INGERSOLL RAND92048925, 59651265, 90769647, 35357243
JIMCOJOC88022
JOHN BEAN3A11646
JOHN DEERERE45576, RE42042, PMLF670
JURA (HIFI)SO670SC
KENWORTHKW670SC, KW670
KLOBIKL133, KL118
KNECHTOC101
KNUDSON201001
KOMATSUX6002111231, X6002111230, CULF670SC, CULF670, CU299670, 6725514101, 6712514301, 6712514300, 6216543120, 6215516101, 6212515600, 6212515301, 6212515300, 6211515821, 6211515820, 6211515401, 6211515400, 6151516401, 6151515302, 6151515301, 6151515300, 6151515101, 6151515100, 6127515403, 6127515402, 6162535402, 6162535400, 6162535102, 6162535101, 6162535100, 6002111100, 6002111291, 6002111290, 6002111231E, 6002111231, 6002111230, 127564, 1212622H1
KORODY COLYERFB96
KRALINATORL201U, L201, L200U, L200, KFP670
LETOURNEAUVJ8003
LEYLANDCU3313279, CU299670, C3313279
LIEBHERR8779663, 7363465, 7363165, 5602720
LINDEE780113237
LINK-BELT3A15999, 3A11646
LTHLTH53CD
LUBER-FINERLFP670SC, LFP670
MANN+HUMMELW1294, W12106
MARINE PERFORMANCE LINEMPL862
MASSEY FERGUSON1055914M2, 1055914M1
MELROE-BOBCAT900007
MITSUBISHI3754001101E, 3754001101
MORBARK29214175
MOTORCRAFTFL760FP, FL760, FL759, FL319FP, FL319AFP, FL319A, FL319, EFL141
NAPA GOLD7174, 1970, 1870, 1671, 1670, 1669
NEW HOLLANDV31133, 86546625, 31133
NORTHERN LIGHTS/LUGGERNL2404801, 2404801
O&K ORENSTEIN & KOPPEL945197, 103849
ONAN1220755, 1220745
P&H PAWLING & HARNISCHFEGER1046Z514, 1046Z315
PAIFT050510
PARKER HANNIFINPER116
PBRBC1137
PERMATICFH503V
PERRYGP53M
PETERBILTPB670
POCLAINS1350553
PPME2750505
PREMIUM GUARDHG50142
PURFLUXLS845
PUROLATORPER116S, PER116, PER259, L60116, L50116, 6934464, 6719356, 6697462
QUAKER STATEQS3612, QS3375
RENAULT5001004323, 5000808716
ROMANLUS101
RYCOHDZ232
SAKURAC5715, C57012, C57011, C5605, C5603
SF-FILTER / SCHUPPSP4290
SISU1216400521
STEIGERSFD012187, 12187
SURE FILTER TECHNOLOGYSFO2446, SFO1670, SFO1230
TECALEMITFB5007
TECFILPSL270, PS270
TRACTO PARTESTPL670
TRACTOMOTIVE70697634, 43966456, 4396645
TRUCK CARE7105050
UFI FILTERS2340900, 2310700
V.M.E. (VOLVO-MICHIGAN-EUCLID)E12000200, 12000200
VERSATILE31133
VOLVOVOE79250015, VOE120002001, VOE12000200, M12000200, 79250015, 120002001, 12000200
VOOLCO FILTERVO2006
WABCOVJ8003
WIX57174, 557174, 551970, 51970MP, 51970, 51870, 51671, 51670, 51669
WIX FILTERSWIX FILTERS, 51671
WOODGATEWGL670R, WGL670, WGL3325
ZETTELMEYER2288131

BALDWIN B196 Fits Vehicles

  • Western Star 4900SA (2002)
  • Kenworth 548CH (1985)
  • Western Star WSH (1982-1983)
  • Mack U (1981, 1983, 1985)
  • Mack RWL (1981-1985)
  • Mack RS (1989)
  • Peterbilt 320 (1987-1988, 2001)
  • Peterbilt 385 (2001-2002)
  • Mack DM (1981-1982, 1985)
  • Peterbilt 387 (1981-1982, 2002)
  • Freightliner MC Line (1986)
  • Freightliner FLB (1994-1999)
  • Freightliner FLL086 (1988-1998)
  • Freightliner FLA086 (1989-1994)
  • Freightliner FLD132 (2001)
  • Kenworth C540 (1990, 1992-1993)
  • Autocar C / DC (1981-1986)
  • Freightliner FLD120 (1988-2003)
  • Volvo VNM (2000-2002)
  • Freightliner FLT086 (1981-1989)
  • Freightliner FLC112 (1985-1997)
  • Freightliner FLC120 (1981-1988)
  • Freightliner FLD112 (1991-1999)
  • Volvo VN (1998-1999)
  • Volvo WX (1996-1998)
  • Volvo WH (1996-1997)
  • Volvo WC (1996-1998)
  • Volvo ACL (1996-1998)
  • Volvo WI (1996-1998)
  • Volvo WG (1996-2001)
  • Western Star 4900FA (2002)
  • Western Star 5800 (1997-2001)
  • Autocar S (1981-1984)
  • Western Star 4900E (1997-2002)
  • Autocar AT (1983-1988)
  • Western Star 6900 (1989-1993, 1995, 1998-2001)
  • Western Star 4900 (1981-2002)
  • Western Star 4800 (1981-2002)
  • Peterbilt 352 (1981, 1988)
  • Mack WS (1981-1984)
  • Mack WL (1982-1983)
  • Mack RWS (1981-1985)
  • Mack RW (1985-1991)
  • Mack RD (1981, 1983-1991)
  • Mack MH (1983-1991)
  • Peterbilt 353 (1981-1988)
  • Peterbilt 372 (1989-1993, 1997)
  • Peterbilt 348 (1981-1984)
  • Peterbilt 349 (1984-1987)
  • Mack CH (1997-1998)
  • Peterbilt 377 (1987-2001)
  • Peterbilt 362 (1981-2002)
  • Peterbilt 310 (1981-1987)
  • Kenworth L700 (1981-1987)
  • Kenworth K100E (1985-2002)
  • Kenworth C550 (1986-1994)
  • Kenworth C500 (1981-2002)
  • Peterbilt 359 (1981-1987)
  • Autocar DS (1983-1988)
  • Autocar DK (1983-1988)
  • Autocar ACL (1984-1986, 1988)
  • Kenworth K100 (1981-1985)
  • Western Star 3800 (1989-1997)
  • Peterbilt 376 (1989, 1992, 1999)
  • Kenworth T450 (1993-1996)
  • Kenworth T400 (1982, 1984, 1989-1998)
  • Mack MR (1984-1988)
  • Mack R (1981-1985)
  • Peterbilt 330 (2000-2002)
  • Peterbilt 378 (1988-2002)
  • Peterbilt 379 (1986-2002)
  • Kenworth T800 (1987-2002)
  • Peterbilt 357 (1987-2002)
  • Kenworth W900 (1981-1998, 2000-2002)
  • Kenworth T600A (1986-1994, 1996-1998)
  • Kenworth T2000 (1997-2002)
  • International F1954 (1984-1985)
  • International 1954 (1985-1987)
  • Peterbilt 282 (1965-1980)
  • Freightliner Columbia (2001-2002)
  • Freightliner Argosy (1999-2002)
  • Freightliner Century Class (1997-2002)
  • International 5600i (2000-2002)
  • International 5500i (2000-2002)
  • International 9100 SBA (1998-1999)
  • International 9200 SBA (1994-2000)
  • International 9400 (1990-2000)
  • International 9700 (1989-1996)
  • International 8300 (1988-1994)
  • International 8200 (1990-1997)
  • International 5000 (1990-1999)
  • International 9600 (1989-1996)
  • International 9300 (1988-1998)
  • International 8100 (1990-1999)
  • International COF5870 Paystar (1987-1988)
  • International F2276 S (1983-1989)
  • International 9370 (1985-1987)
  • International F2675 (1987-1989)
  • International 2675 (1987-1989)
  • International F9370 (1984-1987)
  • International 2575 (1984-1989)
  • International 2276 S (1983-1989)
  • International COF9670 (1982-1988)
  • International F2375 S (1983-1989)
  • International 2375 S (1983-1989)
  • International F2575 (1982-1989)
  • International F2275 (1979-1989)
  • International CO9670 (1982-1988)
  • International F2574 (1979-1989)
  • International 2275 (1979-1989)
  • International F2674 (1979-1989)
  • International 4900 (1990-1992, 1994, 1999)
  • International 4600 (1990)
  • International 4700 (1990-1991, 1994)
  • International 3800 (1990-1991, 1993)
  • International 3700 (1992)
  • International 2674 (1984-2003)
  • International 2574 (1984-2003)
  • International 2654 (1999-2000)
  • International 2554 (1999-2000)
  • Kenworth T300 (1999-2002)
  • Sterling Truck Acterra 8500 (2001)
  • Spartan Motors Mountain Master (2000)
  • Ford LT9501 (1997-1998)
  • Ford LT9513 (1996-1998)
  • Sterling Truck AT9522 (1999-2000)
  • Sterling Truck A9513 (1999)
  • Chevrolet Bruin (1979-1981)
  • Sterling Truck Acterra 6500 (2001)
  • GMC Brigadier (1981-1988)
  • Sterling Truck ST9500 (1999-2001)
  • Ford LTL9000 (1986-1990, 1992-1996)
  • Ford LLS9000 (1996)
  • Ford LTLA9000 (1992-1997)
  • Ford LTA9000 (1988-1997)
  • Ford L9513 (1997-1998)
  • Ford L9511 (1998)
  • Ford L9501 (1997)
  • White WIL (1984-1988)
  • Ford LNT9000 (1981-1997)
  • Ford LN9000 (1981-1997)
  • Ford LL9000 (1987-1992, 1994, 1996)
  • Ford LT9522 (1997-1998)
  • Ford LTLS9000 (1992-1997)
  • Ford LTS9000 (1981-1997)
  • Ford LT9511 (1998)
  • Ford LT9000 (1981-1997)
  • Ford LS9000 (1987-1997)
  • Ford LLA9000 (1992-1995)
  • Ford LA9000 (1988-1997)
  • Ford L9000 (1981-1997)
  • White/GMC WHM (1988-1989)
  • White WHM (1981, 1984-1987)
  • White WXLL (1986-1988)
  • White WCA (1988)
  • White WCL (1981-1988)
  • White/GMC WIL (1988-1992)
  • White/GMC WHEB (1991-1995)
  • Ford AT9522 (1997-1998)
  • White/GMC J9C0 (1988-1989)
  • Ford AT9513 (1996-1998)
  • Ford A9513 (1996-1998)
  • White/GMC WHLB (1991-1994)
  • Ford CLT9000 (1981-1991)
  • White WIM (1984-1988)
  • White WHL (1981-1988)
  • White WHS (1981-1988)
  • White/GMC WXLL (1988-1995)
  • White/GMC WIS (1988-1990)
  • White/GMC WIM (1988-1994)
  • White/GMC WIA (1988-1995)
  • White/GMC WHS (1988-1991)
  • White/GMC WHR (1989-1995)
  • White/GMC WHL (1988-1995)
  • White WX (1981-1988)
  • White WIS (1984-1988)
  • White WCS (1981-1988)
  • White WCM (1981-1988)
  • White/GMC WCS (1988-1991)
  • White/GMC WCM (1988-1994)
  • White/GMC ACM (1988-1992)
  • Ford CL9000 (1981-1991)
  • White WIA (1988)
  • White/GMC ACL (1988-1995)
  • White/GMC WCL (1988-1993)
  • White/GMC WCA (1988-1995)
  • White/GMC WXR (1993-1995)
  • White/GMC WX (1988-1995)
  • White/GMC WG (1990-1995)
  • GMC Astro (1981-1988)
  • Sterling Truck LT9511 (1999-2000)
  • Sterling Truck L9500 (1999-2002)
  • Sterling Truck AT9513 (1999-2000)
  • Sterling Truck A9500 (2000-2001)
  • Sterling Truck LT9522 (1999-2000)
  • Sterling Truck L9513 (1999-2000)
  • Sterling Truck L9511 (1999, 2001)
  • Oshkosh Motor Truck Co. S (1983-1988, 1991-1998, 2001)
  • GMC General (1981-1988)
  • Sterling Truck LT9500 (1999-2003)
  • Sterling Truck AT9500 (1999-2002)
  • Sterling Truck LT9501 (1999-2001)
  • Sterling Truck LT7500 (2002)
  • Sterling Truck L7501 (2001)
  • Chevrolet B60 (1985-1986)
  • GMC B6000 (1985-1986)
  • Chevrolet C60 (1986)
  • GMC C6000 (1985)
  • Chevrolet C70 (1986)
  • GMC C7000 (1980-1982)

BALDWIN B196 Customer Reviews

No reviews yet

Be the first to review this product!

Write a Review

B196 by BALDWIN - Engine Oil Filter - Full-Flow Lube Spin-On used for Cummins Engines

BALDWIN B196

Engine Oil Filter - Full-Flow Lube Spin-On used for Cummins Engines

*
*

Maximum 100 characters.

Maximum 500 characters.

Order number must be in the format F followed by 9 digits (e.g., F100000000)

*

You can upload up to 3 images to help illustrate your review. Supported formats: JPG, PNG, GIF, WebP

* Required fields

Review Guidelines

  • • Focus on the product's performance and quality
  • • Include details about installation and usage
  • • Be honest and constructive in your feedback
  • • Avoid personal information or inappropriate content

Please complete the reCAPTCHA verification to submit your review.

BALDWIN B196 Manufacturer Information

Baldwin® is a world-renowned leader in the engine mobile filtration. A brand of Parker Engine Mobile Aftermarket Division (E.M.A.M.), Baldwin Filters provides high-quality filtration products and services for engines and mobile equipment. Since 1936, J.A. Baldwin, the founder of Baldwin Filtration, has recognized the importance of a highly efficient mobile filtration system. It is what inspired him to design an improved lube filter and set off its production in Wisconsin. Currently, Baldwin offers outstanding product quality, a vast distribution network, and one of the industry's most comprehensive product lines. Baldwin's broad range of filtration products and technologies provides customers with a one-stop source for all their engine and mobile filtration needs.

BALDWIN B196 Questions & Answers

No questions yet

Be the first to ask a question about this product!

California Proposition 65 Warning California residents see

Recommended Products

More from BALDWIN

(Browse all)
