MOTORAD 228-170JV Thermostat-170 Degrees

★★★★★ (0)

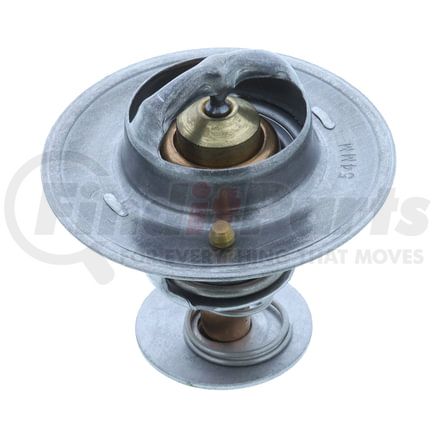

Motorad 228-170JV Engine Coolant Thermostat Thermostat-170 Degrees
MOTORAD
Tap to view 6 more
Motorad 228-170JV Engine Coolant Thermostat Thermostat-170 Degrees

$10.49

Limited availability at this price!

In Stock

Get as soon as Tuesday, Sep 22
30-day Return Policy On eligible items Details
Free Ground shipping on orders over $499 details
Orders placed over the weekend will be processed the next business day.

MOTORAD 228-170JV Part Description

Manufacturer

MOTORAD

Product Description

Thermostat-170 Degrees

Features & Benefits

  • High grade stainless steel and copper construction
  • Meets or exceeds OEM standards
  • Consistent and precise response to cooling system needs
  • Original equipment design for worry-free direct fit replacement
  • 100% tested and calibrated

MOTORAD 228-170JV Specifications

Product Attributes

Bypass Diameter 1.09 in
Bypass Length 1.37 in
Sealing Flange Outside Diameter 2.12 IN
Gasket Or Seal Included No
Jiggle Pin Weep Hole Yes
Start to Open Temperature 170.0 FA
Installation Tool Included No
Flange Thickness 0.06 in
Depth 1.39 IN
Seal Material N/A
Electric No
Bypass Flange Length 0.65 IN
Bypass Flange Diameter 1.09 IN
Seal Quantity 0
Engine Coolant Thermostat Quantity 1
Jiggle Pin Check Valve Quantity 1
Flange Height 0.16 IN
Includes Jiggle Pin Check Valve Yes
Outlet Inside Diameter 26.42 mm
Outlet Outside Diameter 1.23 in
Valve Outside Diameter 29.25 mm
Material Copper
Gasket or Seal Pre-Installed No
Height Between Flanges 1.52 IN
MAP Controlled No
Design OEM
Color Brass
Gasket Or Seal Required Yes
Gasket Quantity 0
Grade Type OEM
Height 2.17 IN
Type Estándar
Bolt Hole Quantity 0
Sealing Flange Outside Diameter 53.85 MM
Height Between Flanges 38.61 MM
Height 55.12 MM
Start to Open Temperature 76.67 CE
Flange Thickness 1.52 MM
Depth 35.31 MM
9812 16.52 MM
Bypass Flange Diameter 27.68 MM
Flange Height 4.15 MM

Additional Information

Harmonized Tariff Code (HTS) 9032100090
Harmonized Tariff Code (Schedule B) 9032100090
Warranty Time UOM MO
Warranty Time 12
Country of Origin (Primary) IL
UPC 00055644228716
VMRS Code 042006001

MOTORAD 228-170JV Cross References

BrandPart Number
ACDelco12T19CJ
Balkamp170JV-822
CST3777
Mighty Distributing System3777
Motorad228-170JV
Murray Temperature Control3777
N/A228-170JV
Parts Master22871
Pep Boys228-170JV
REACH COOLINGT4-10254
StantNI
Worldparts9228170JV

MOTORAD 228-170JV Fits Vehicles

  • Ford F-700 LPO (1992)
  • Ford F-550 Super Duty (2017-2019)
  • Ford F-750 (2016-2019)
  • Blue Bird Vision School Bus (2013-2021)
  • Ford F-59 Commercial Stripped Chassis (2011-2012)
  • Ford Econoline Wagon (2010-2014)
  • Ford Econoline Van (2010-2014)
  • Ford F-650 (2012-2013, 2015-2019)
  • Ford Lobo (1997-2014)
  • Ford F-350 (1999-2004, 2011-2016)
  • Ford Econoline (1999-2006)
  • Ford F-450 Super Duty (1998, 2017-2019)
  • Ford Club Wagon (1997-1998)
  • Ford Grand Marquis (1993-2004)
  • Ford Explorer Sport Trac (2007-2010)
  • Lincoln Mark LT (2006-2008, 2010)
  • Mercury Monterey (2005-2006)
  • Ford E-350 Super Duty (1999-2019)
  • Ford F-150 Heritage (2004)
  • Pontiac Acadian (1981-1986)
  • Ford E-450 Econoline Super Duty (2000-2002)
  • Mercury Mountaineer (2002-2010)
  • Mercury Grand Marquis (1992-2011)
  • Mercury Cougar (1994-1997)
  • Lincoln Town Car (2003-2011)
  • Lincoln Navigator (1998-2014)
  • Lincoln Blackwood (2002)
  • Ford Windstar (1996-1998)
  • Ford Mustang (1996-2004, 2007-2010)
  • Ford F-350 Super Duty (1999-2022)
  • Ford F-250 Super Duty (1999-2021)
  • Ford F-250 (1997-2009)
  • Ford F-150 (1997-2014)
  • Ford Explorer (2002-2010)
  • Ford Expedition (1997-2014)
  • Ford Excursion (2000-2005)
  • Ford E-350 Econoline Club Wagon (1997-2002)
  • Ford E-350 Club Wagon (2003-2005)
  • Ford E-350 Econoline (1997-2000)
  • Ford E-250 (2003-2014)
  • Ford E-250 Econoline (1997-2002)
  • Ford E-150 Econoline Club Wagon (1997-2002)
  • Ford E-150 Club Wagon (2003-2005)
  • Ford E-150 (2002-2014)
  • Ford E-150 Econoline (1997-2002)
  • Ford Econoline Super Duty (1997-1999)
  • Ford E-450 Super Duty (2003-2004, 2006-2019)
  • Ford Crown Victoria (1992-2011)
  • Chevrolet Chevette (1981-1986)
  • Peugeot 405 (1989-1991)
