GATES part description

Product Description

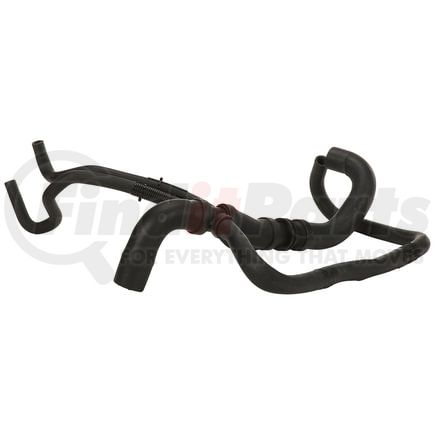

Premium Modular Coolant Hose

Application Summary

2019-11 Ford, F-59, Ford V-10 6.8 L, Lower

Features & Benefits

  • Specifically-engineered materials resist collapse under vacuum
  • Specifically-engineered materials resist collapse under vacuum
  • Engineered to resist electrochemical degradation - the leading cause of hose failure
  • Engineered to resist electrochemical degradation – the leading cause of hose failure
  • EPDM tube; synthetic fiber knit reinforcement, heat-, ozone- and chemical coolant-resistant EPDM cover
  • Manufactured with OEM-exact hose components (quick connects, branch connectors/tees, sensors, etc.)
  • Meets SAE 20R3 EC Class D1 under 25mm (1 in.) ID, SAE 20R4 EC Class D1 for 25mm (1 in.) ID and over
  • Temperature Range: -40 Deg. F to +257 Deg. F (-40 Deg. C to +125 Deg. C)
  • Note: Gates recommends replacing clamps each time a new coolant hose is installed
  • Caution: Do not use for fuel or oil transfer applications

Product Attributes

Centerline Length 32 IN
Modular Yes
Modular Components Included 3 Branches
Branch Quantity 3
Quick Connect Fitting Quantity 0
End 1 Inside Diameter 1.71 in
End 2 Inside Diameter 1.92 in
End 3 Inside Diameter .72 in
End 4 Inside Diameter .72 in
End 5 Inside Diameter .97 IN
Contains Spring No
Material EPDM, Plastic
Molded Yes
Centerline Length 18 MM
End 1 Inside Diameter 43 MM
End 2 Inside Diameter 49 MM
End 4 Inside Diameter 18 MM
End 5 Inside Diameter 25 MM

Additional Information

Country of Origin (Primary) US
Harmonized Tariff Code (Schedule B) 4009310000
UPC 00770075722298
VMRS Code 042004014
UNSPSC 40142000

Part Interchanges

Fits Vehicles

  • Ford F-59 Commercial Stripped Chassis (2011-2019)
  • Ford F-53 Motorhome Chassis (2007-2009, 2011-2019)
