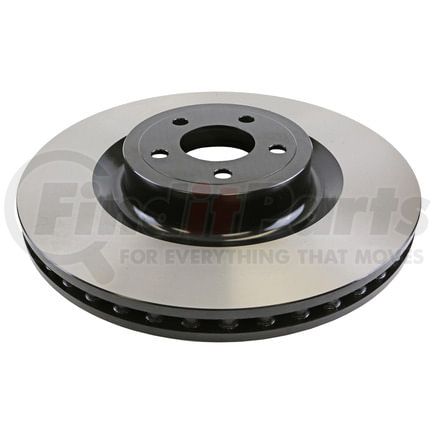

(888) 312-8812 Login SignupWAGNER BD180696E Wagner Brake BD180696E Disc Brake Rotor
Tap to view 2 more
$19499
Limited availability at this price!
In Stock
Get it by Tuesday, Aug 25
WAGNER BD180696E Part Description
Manufacturer
Product Description
Disc Brake Rotor
Application Summary
2015-2018 Ford Mustang GT GT Premium GT 50 Years Limited Edition (Front) (Qualifier: with Brembo Package, Black E-Coat on non-braking surface to prevent rust and corrosion)
Features & Benefits
- ENGINEERED FOR PERFORMANCE -- OE-specific vane design provides effective braking power and heat dissipation while controlling noise, vibration and harshness
- OE-STYLE DESIGN -- Restores like-new braking performance while matching OE fit, form and function
- PREMIUM PROTECTION -- E-Shield(R) protective coating is applied to non-braking surfaces to inhibit corrosion
- RESISTS CORROSION -- Painted edges & hats provide reliable corrosion resistance
- TURNED AND SMOOTH FINISH -- Requires less pad break-in time and aids in proper bedding
- NON-DIRECTIONAL FINISH -- Reduces pad break-in time and promotes proper bedding for consistent stopping power
- EASY INSTALLATION -- Rotors are packaged in a Vapor Corrosion Inhibitor bag, eliminating the need for an oil coating which reduces prep time
- CONSISTENT PERFORMANCE -- Precision ground surface finish delivers reliable performance, noise reduction and heat dissipation
- PROPER BALANCE -- Spin balanced and cut to limit vibration for improving stability and control
- SMOOTH BRAKING -- Application-specific OE vane design and thickness help control noise, vibration and harshness (NVH)
- PERFECT PAIRING -- Pair Wagner premium rotors with premium brake pads for optimal performance
- BALANCED FOR SMOOTH STOPS -- Precision-balanced to minimize pedal pulsation and deliver a smoother ride
- QUALITY MATERIALS -- Proven metallurgy provides structural integrity and heat dispersion for reliable performance
- EASY TO INSTALL -- Simply wash the oil off and bolt on; no machining required
- COMPREHENSIVE COVERAGE -- Available for foreign and domestic nameplates
- PERFECT PAIRING -- Pair Wagner® Standard rotors with Wagner brake pads and calipers (sold separately) for optimal performance
- PERFECT PAIRING -- Pair Wagner(R) Standard rotors with Wagner brake pads and calipers (sold separately) for optimal performance
WAGNER BD180696E Specifications
Product Attributes
| Stud/Lug Hole Quantity | 5 |
| Outside Diameter | 380.0 MM |
| Outside Diameter | 14.961 IN |
| Overall Height | 64.0 MM |
| Overall Height | 2.519 IN |
| Solid Or Vented Type Rotor | Vented |
| Surface Type | Smooth |
| Construction | Full Cast |
| Material | Cast Iron |
| Rust Resistant Coating | Yes |
| Part Description | Disc Brake Rotor |
| Bearings Included | No |
| Directional or Non-Directional Brake Surface | Directional |
Additional Information
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (Schedule B) | 8708305030 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00008536962465 |
| VMRS Code | 013017001 |
| UNSPSC | 25171705 |
WAGNER BD180696E Cross References
| Brand | Part Number |
|---|---|
| ACDelco | 18A81954, 18A81954SD, 18A81954A, 18A81954AC |
| Autospecialty | AR85159 |
| BrakeBest Select Drum/Rotor | 621785RGS |
| Centric Parts | 125.61116 |
| Duralast | 75026DL |
| Dynamic Friction Company | 900-54079, 600-54079, 604-54079 |
| Ford | FR3Z1125D, GR3Z1125H, KR3Z1125G |
| NAPA BRAKES | 881954CR, RA881954, 48881954, 248881954 |
| PowerStop | AR85159, AR85159XPR |
| Pro-Series | C10244 |
| RAYBESTOS | 681953, 681953R, 681953FZN |
| Raybestos Brakes | 681954FZN, 681954R, 681954, 681954PER |
| Winhere | 6621785, UR006212, UR023885 |
WAGNER BD180696E Fits Vehicles
- Ford Mustang (2015-2024)
