(888) 312-8812 Login SignupCENTRIC 228.51030 C-Tek Standard Drilled Brake Rotor
Tap to view 4 more
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
CENTRIC 228.51030 Part Description
Manufacturer
Product Description

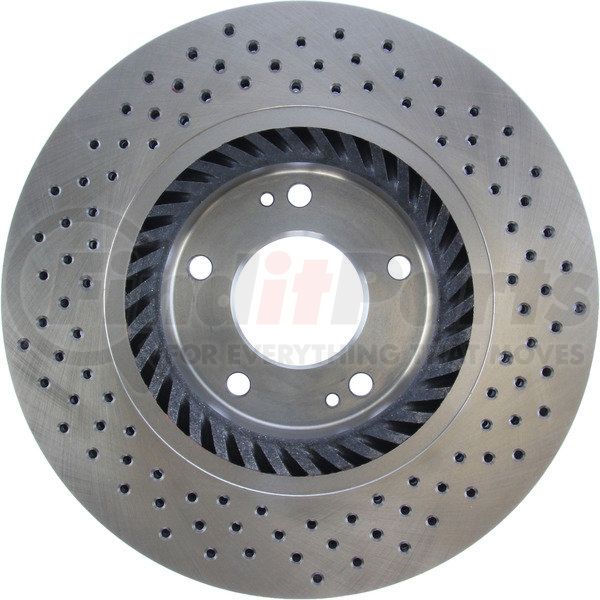

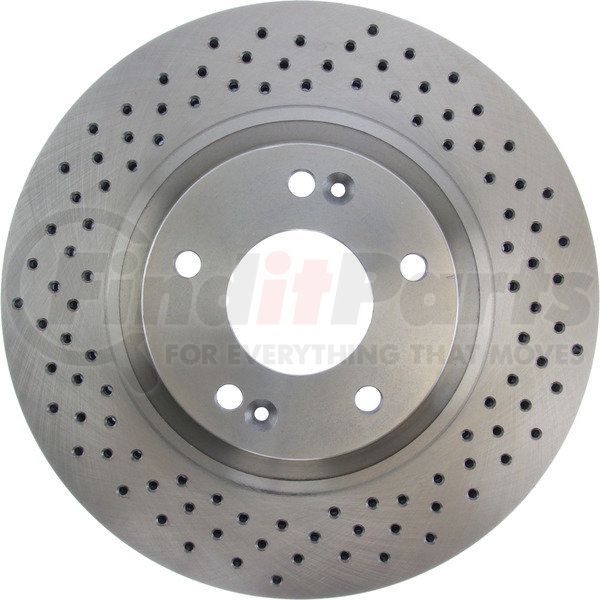

C-Tek Standard Drilled Brake Rotor
Features & Benefits
- Non-Directional Finishes. Machined non-friction surfaces. G11 metallurgy. Drilled for increased bite; improved looks and better performance
- For heat capacity and strength
- OE Vane Design & Plate Thickness
- Optimal Surface Finish
- For consistent stopping power
- Low Initial Lateral Run-Out and Disc-Thickness Variation
- For smooth, vibration free stopping
- Precision Balanced
- For vibration free performance
CENTRIC 228.51030 Specifications
Product Attributes
| Weight [cntrc] Lbs | 19.200 |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Vane Style [cntrc] | Curved |
| Weight [cntrc] Kgs | 8.730 |
| Disc Mounting [cntrc] | Floating |
| Product Grade [cntrc] | Standard |
| Misc Holes [cntrc] | 2 |
| Discard Thickness | 0.961 IN |
| Discard Thickness | 24.400 MM |
| Nominal Thickness | 1.024 IN |
| Nominal Thickness | 26.000 MM |
| Overall Height | 47.400 MM |
| Overall Height | 1.866 IN |
| Outside Diameter | 303.000 MM |
| Outside Diameter | 11.929 IN |
| ABS Tone Ring Included | No |
| Surface Type | X Drilled |
| Solid Or Vented Type Rotor | Vented |
| Bearings Included | No |
| Center Hole Diameter | 69.000 MM |
| Center Hole Diameter | 2.717 IN |
| Mounting Bolt Hole Circle Diameter | 114.300 MM |
| Mounting Bolt Hole Circle Diameter | 4.500 IN |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 12.500 MM |
| Stud/Lug Hole Diameter | 0.492 IN |
Additional Information
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00805890459644 |
CENTRIC 228.51030 Cross References
CENTRIC 228.51030 Fits Vehicles
- Hyundai Tiburon (2007-2008)
