(888) 312-8812 Login SignupRAYBESTOS 980596 Raybestos Specialty - Street Performance Brake Rotor
$15849
Limited availability at this price!
1 Day Lead Time
Get it by Friday, Jul 24
RAYBESTOS 980596 Part Description
Manufacturer
Product Description

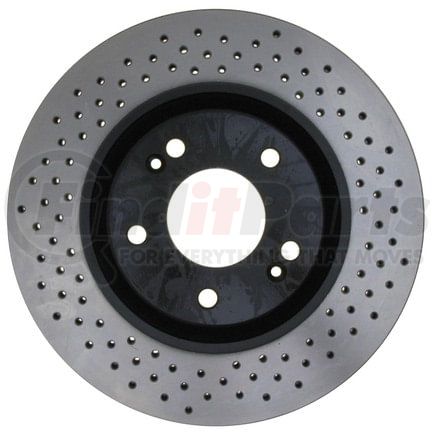

Raybestos Specialty - Street Performance Brake Rotor
Application Summary
2008-2007 Hyundai Tiburon Front
Features & Benefits
- Application Specific Enhanced Iron
- Raybestos® Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Raybestos(R) Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Cooling Vanes
- The cooling vanes match OE configurations and provide optimal cooling and reduced fade.
- Application Specific Coating
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0® coating on the entire rotor
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0(R) coating on the entire rotor
- Black fusion coating on the rotor hat and Grey Fusion 4.0® coating on the rotor inboard surface and cooling vanes
- Black fusion coating on the rotor hat and Grey Fusion 4.0(R) coating on the rotor inboard surface and cooling vanes
- Turned Finish
- Turned finish minimizes noise and improves responsiveness for smoother stops.
- S-Groove Slot
- Depending on the application, some Raybestos® Performance Rotors are designed with a patented S-Groove Slot.
- Depending on the application, some Raybestos(R) Performance Rotors are designed with a patented S-Groove Slot.
RAYBESTOS 980596 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.717 IN |
| Center Hole Diameter | 69 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 0.961 IN |
| Discard Thickness | 24.4 MM |
| Harmonize Code | 8708.30.5030 |
| Inside Diameter | 7.73 IN |
| Inside Diameter | 196.35 MM |
| Mounting Bolt Hole Circle Diameter | 4.5 IN |
| Mounting Bolt Hole Circle Diameter | 114.3 MM |
| Mounting Bolt Hole Diameter | 4.5 IN |
| Mounting Bolt Hole Diameter | 114.3 MM |
| Nominal Thickness | 1.025 IN |
| Nominal Thickness | 26.05 MM |
| Outside Diameter | 11.933 IN |
| Outside Diameter | 303.1 MM |
| Overall Height | 1.862 IN |
| Overall Height | 47.3 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00829352666685 |
RAYBESTOS 980596 Cross References
| Brand | Part Number |
|---|---|
| DYN-6089, 829352666685 | |
| AUTOXTRA | AX31337 |
| AUTOZONE | 33137, 44601, 44601DG |
| Autoxtra | AX31337P |
| BENDIX | PRT5891 |
| BRAKEBEST | 980596, 980596RGS |
| CENTRIC | 120.51030, 121.51030, 128.51030, 228.51030 |
| Centric Parts | 128.51030, 228.51030, 120.51030, 121.51030 |
| DURA CORP | BR31490 |
| DuraGo | BR31490 |
| Hyundai | 517122C700 |
| NEWTEK AUTOMOTIVE | 31490 |
| Newtek Automotive USA | 31490 |
| PROMAX | 14-31490 |
| Qualis | 44655 |
| UAP | 31490 |
| WAGNER | BD126141 |
| WAGNER BRAKE | BD180231 |
RAYBESTOS 980596 Fits Vehicles
- Hyundai Tiburon (2007-2008)
