(888) 312-8812 Login SignupBENDIX K156037OR M-40HF™ ABS Modulator Valve - Remanufactured
Tap to view 5 more
SHIPS TODAY
$77149
Limited availability at this price!
In Stock
Get it by Monday, Feb 2
BENDIX K156037OR Part Description
Manufacturer
Product Description
ABS Modulator Valve
Features & Benefits
- A high-capacity, on-off, high flow pressure modulator valve that incorporates a pair of electrical solenoids for control
- With a die cast metal and plastic body that houses a normally open solenoid, a normally closed solenoid, and an inlet and exhaust diaphragm valve
- Designed to fit right and install fast the first time since it has two mounting holes for frame or cross member mounting
- Engineered using state-of-the-art technology to make it more reliable and efficient even when used under harsh conditions
- All Bendix valves are designed to improve vehicle performance and safety
Courtesy of Bendix – All rights reserved

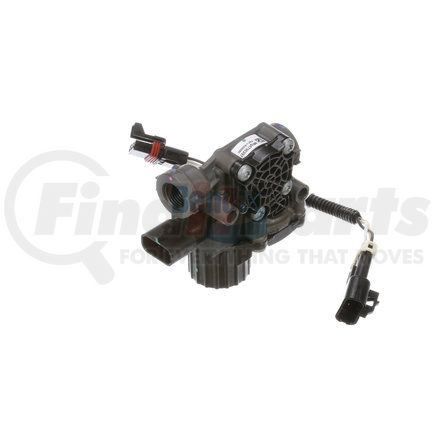

Bendix M-40HF ABS Modulator Valve
Enhance the performance of your antilock brake system with the Bendix M-40HF ABS modulator valve. This valve is manufactured to meet stringent OEM requirements to ensure it works just like the original ABS modulator valve that came with your vehicle.
BENDIX K156037OR Specifications
Product Attributes
| Series | M-40HF™ |
| Adapter Cable Included | 3-Pin Metri-Pack 280 Series to 3-Pin Metri-Pack 280 Series Extension |
| Connector Type | Metri-Pack 280 Series 3-Way Sealed Connector (Male) |
| Current (Nominal) | 4.6 A |
| Delivery Port | 1/2-14 NPT |
| Duty Cycle | 15 sec / 5 min |
| Exhaust Port | Dust Shield |
| Market Indicator | Aftermarket Remanufactured |
| Maximum Operating Pressure | 150 PSI |
| Maximum Operating Temperature | 185 AdegF (85 AdegC) |
| Maximum Solenoid "On" Time | 150 sec |
| Minimum Operating Temperature | -40 AdegF (-40 AdegC) |
| Modulator Type | HF (High Flow) |
| Mounting | A~ .335 IN (2x) |
| Supply Port | 1/2-14 NPT |
| Voltage (Nominal) | 12 Volts |
Additional Information
| Core Class | SZ |
| Core Group | SZ |
| Country of Origin (Primary) | MX |
| Harmonized Tariff Code (HTS) | 8479899499 |
| UPC | 04068078168165 |
| VMRS Code | 013011071 |
BENDIX K156037OR Cross References
| Brand | Part Number |
|---|---|
| N/A | K156037ORX |
BENDIX K156037OR Customer Reviews
No reviews yet
Be the first to review this product!
BENDIX K156037OR Manufacturer Information
A part of the Knorr-Bremse Group, Bendix® provides the automotive and truck parts industry with cutting-edge energy management solutions, active safety technologies, and air brake charging for tractors, buses, commercial vehicles, trailers, as well as medium- and heavy-duty trucks throughout North America. Headquartered in Elyria, Ohio, Bendix Commercial Vehicle Systems employs over 3,200 people who work hand in hand for the accomplishment of the brand's vision: "to become the leading worldwide supplier of active vehicle safety systems within the commercial vehicle industry." This brand takes pride in being the first to introduce many notable parts and technologies to the North American commercial vehicle market. Among these many firsts are the groundbreaking air brake system technologies such as air dryers, air compressors, and ABS. At Bendix, exceeding industry standards is a strict requirement.
