CENTRIC 320.40077 Part Description
Manufacturer
Product Description

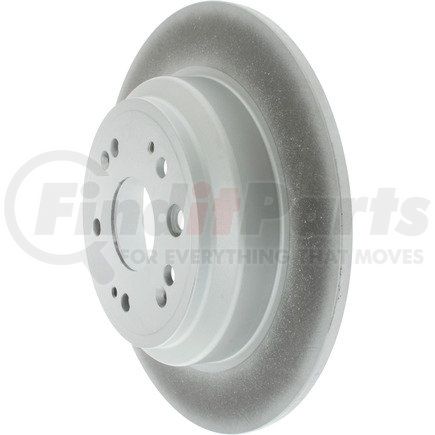

Centric GCX Rotor with Partial Coating
Features & Benefits
- RS200 Coating our exclusive corrosion resistant coating for longer life and good looks; Iron FormulationEnhanced iron and high carbon metallurgies means the right rotor for your car; Operational Efficiency Full coverage with 80% fewer SKUs
CENTRIC 320.40077 Specifications
Product Attributes
| Weight [cntrc] Lbs | 11.150 |
| Misc Holes [cntrc] | 5 |
| Disc Mounting [cntrc] | Floating / DIH |
| Weight [cntrc] Kgs | 5.060 |
| Product Grade [cntrc] | Premium |
| Max Pb Drum Dia [cntrc] In | 7.520 |
| Max Pb Drum Dia [cntrc] Mm | 191.000 |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Discard Thickness | 8.000 MM |
| Discard Thickness | 0.315 IN |
| Nominal Thickness | 9.000 MM |
| Nominal Thickness | 0.354 IN |
| Disc Finish | Partially Coated |
| Hat Finish | Coated |
| Overall Height | 60.400 MM |
| Overall Height | 2.378 IN |
| Outside Diameter | 304.700 MM |
| Outside Diameter | 11.996 IN |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Solid |
| Nominal Drum Diameter | 7.472 IN |
| Nominal Drum Diameter | 189.800 MM |
| Bearings Included | No |
| Center Hole Diameter | 2.524 IN |
| Center Hole Diameter | 64.100 MM |
| Mounting Bolt Hole Circle Diameter | 114.300 MM |
| Mounting Bolt Hole Circle Diameter | 4.500 IN |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 12.600 MM |
| Stud/Lug Hole Diameter | 0.496 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 889590300987 |
CENTRIC 320.40077 Part Interchanges
| Brand | Part Number |
|---|---|
| Raybestos Brakes | 980901, 980901R |
CENTRIC 320.40077 Cross References
We have 2 alternatives for the 320.40077 by CENTRIC:
